pvc/pu conveyor belts welding machine

Specifications

conveyor belts welding machine
Firmly welding, strong output
simple opeation, easy tuning
ODM, OEM service offered
CE certi

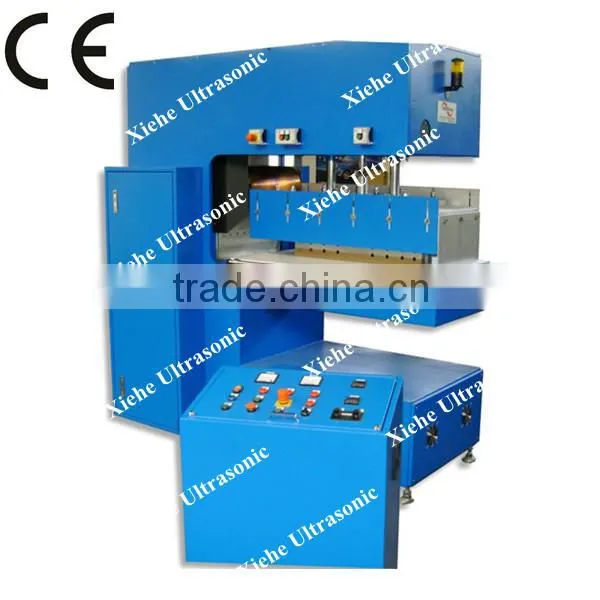

high frequency conveyor belts welding machine

Description and Application

High Frequency Welder is designed specifically for production of Conveyor Belts made of Thermoplastic Elastomers (TPE), PVC and PU. We offer the most advanced technological custom made tooling to make all of our flat belts endless easily in a minimal time frame. Endless joining and fabrications of various cleats, steps and sidewalls can be done easily with BELTA machine thanks to large welding table and electrode holder allowing positioning of tooling 360 degree circumference.

BELT model is equipped with special quick change electrode holder. Side rolls mounted on the edges of the work table allow easy handling of long belts and precision weld positioning for fast production setup as well as ergonomic work space for operators.

BELT series machines have HF power outputs from 8kW to 35kW for heavy production loads and various material thicknesses and cleat heights (10mm-150mm). All these options make this machine a perfect tool for high end production where precision, durability and strength is the key.



1. Firmly welding, be well meet with thick or thin dimension of welding material

2. Single line or two lines continue welding, welding length can be ordered as special need.

3. Adopting high sensitive anti-sparkle device NL-5557 to avid damage to the mould

4. European model high frequency vibration box, more reliable and stable in output

5. International industrial wave bands 27.12MHz, which is in line with international standard.

6. Welding time can be adjusted according to welding materials

7. Length, width and radian of welding area can be adjusted by changing die.

8. Machine groove deep and wide, the longest welding extended to 1000mm or longer for one time

9. Can be used as a freestanding machine for welding production or as a supplement to a larger system.

10.High frequency tarpaulin welding machine can be manufactured and choose according to user needs.

11. Universal for T-Cleats, Sidewalls, Leads, Steps



Main applications:

used for welding leads, steps, side guards of conveyor belts

Conveyor Belts made of Thermoplastic Elastomers (TPE), PVC and PU

T-Cleats and Fabricated Cleats (scoop, straight, beefy, gusset)

Sidewalls (heights ranging from 1.25"/20cm to 4"/100cm)



Single head conveyor belts welding machine Parameter

Model	XH-15KW-1C	XH-25KW-1C	XH-35KW-1C
Power	15000w	25000w	35000w
Voltage	220V/380V   50/60HZ
Frequency	13.56MHZ
Input power	25KVA	35KVA	50KVA
Rectifier	SILICON DIODE
Oscillation tube	8T85RB	8T25RA	8T87RB
Max pressure	1000kg	1500kg	200kg
Gap between electrodes	100~150MM
The moving distance of active horn	100~150MM
Size of upper electrode	150*600	150*700	150*800
Size of lower electrode	250*750	250*850	250*950
Range of temperature	30~200°C Adjustable
Welding time	0~10S Adjustable
Net weight	1000KG	1200KG	1500KG
Overall dimension	1500*2000*1500mm



Double head conveyor belts welding machine Parameter

Model	XH-15KW-2C	XH-25KW-2C	XH-35KW-2C
Power	15000W	25000W	35000W
Power supply	380V 50/60Hz
Frequency	13.56MHz
Input power	25KVA	35KVA	50KVA
Rectifier	SILICON DIODE
Oscillation tube	8T85R	8T25RA	8T877RB
Max pressure	1500KG	150kg	200kg
Gap of electrodes	150MM
Moving distance of active horn	150MM
The size of upper electrode	150*600mm	150*700mm	150*800mm
The size of lower electrode	250*750mm	250*850mm	250*950mm
The range of temperature	30~200 Adjustable
Welding time	0~10S Adjustable
Productivity	Equal or less 6500times/8h



Moulds and samples

Xiehe provides you with the most thoughtful services
1	One year warranty and life long maintenance
2	Free training and instruction
3	Free replacements
4.	24 hours online service
5	Sending technical staff overseas
