Quad core internet tv box android 4.2

Specifications

internet tv box android
1.Quad-core 1.8G!
2. Supports nearly 1000 free live TV
3.replace old charging STB

Quad core internet tv box android 4.2



Introduction



K8 smart HD player / TV box, with RK3188 Cortex-A9 quad-core 1.8GHz processor and 1G DDRIII memory,



 can smoothly run Google's latest smart operating system of Android 4.2. Compared with Android 2.2 and 2.3



systems, Android 4.2 integrate TV, phone and pad systems together. We newly designed UI interface and



upgraded the running speed. Also, we did hundreds of deep customization against TV products. Therefore,



Android 4.2 system in K8 becomes a real customized and humanized operating system for TV. With this HD



player, user can install the world's most advanced operating system into an ordinary TV very easily. Enjoy



your smart life with only one step.





Features



1.  Quad-core 1.8G! Both software and hardware performance surpass xiaomi box! Fashion designed cabinet!



2.  Built-in 150M/300M high-speed WIFI receiver, also supports Ethernet connect!



3.  Android 4.2 operating system, customized UI, support future updates!



4.  Pre-installed nearly 30 commonly used APK, clearly classified, can meet needs of most users!



5.  Mature product, passed market testing of numerous users, low failure rates, good after-sales service!



6.  High-quality spare parts: large margin power supply, beautiful remote control, qualified HDMI cable!



7.  Supports nearly 1000 free live TV, can replace old charging STB!







Specification





Category	Item	Specification details
System	CPU	ARM’s Cortex-A9 quad-core 1.8GHz
	GPU	Mali™-400MP image processing unit
	Memory	1GB/ DDR3
	Flash	4GB (8GB optional / 2G for system)
	Network	Built-in Wi-Fi module, built-in antenna, support 802.11b/g/n
	Operating system	Android 4.2, supporting future update
Ports	HDMI	HDMI 1.4 480I/720P/1080i/1080p
	USB	USB2.0 HOST/OTG
	DC	5V/2A DC input
	OPTICAL	SPDIF audio output
	AUDIO	Analog 2.0 stereo output
	LAN	Ethernet input
	USB	2 expanding USB HOST
S/W	Android APK	System applications	Browser, system tools, news, book reading, learning, working, online payment, financial planning, and other related softwares.
		Multimedia playing	Online video, online music, Internet TV, Internet Radio, local playing etc.
		Social Network	Instant message, social media, etc.
	DLNA	Play the stored music, movies and pictures between devices that support DLNA; support push function between Android devices.
	CEC	Can support TV’s remote control (require data cable and software support)
	Infrared remote control	Use remote control
Multimedia formats	Video format	Full HD (1920x1080p), MPEG-1, MPEG-2,MPEG-4 ASP, Xvid, H.264, H.263, VC-1, RV30/40, WMV, Real Video, others
	Audio format	PCM, LPCM, MP3, AAC, MPEG Audio, WM, WMA, WAV, OGG, M4A,
	Pictures	JPG,GIF,BMP,PNG
Packing	Power supply	12V/1A
	Color	White
Spare parts	Remote control	optional
	Wireless mouse	optional
	Wireless keyboard	optional
	USB HUB	optional
	HDMI cable	optional
Size	Product size	148x148x26mm











Device needed



1.A TV, HD flat-panel TV is recommended



2.Wireless Wi-Fi signal or Ethernet cable



3.USB mouse or keyboard set, 2.4G wireless products is recommended





Ports



1)  Power supply 5V/2A



2)  Audio output SPDIF



3)  Line out



4)  HDMI output, connect to TV’s HDMI port



5)  Ethernet port, connect to LAN port of router



6)  USB1 port (can connect to computer)



7)  Wi-Fi antenna port (some models use built-in antenna, no external antenna)









1)  USB2 port (HOST port – connect to USB devices such as U disk and HD etc.)



2)  USB3 port (same as above)



3)  SD card slot





Installation

First: Connect power supply, TV, or Ethernet



Second:  Set Wi-Fi or Ethernet



Third: Watch TV, play games, browse web…

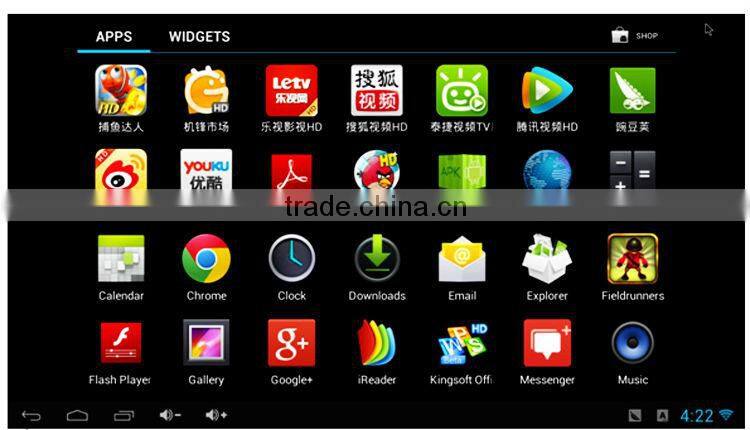

UI pictures







Precautions



l Relative humidity: ≤80%



l Storage Temperature: -10-60°C



l Operating Temperature: 0-40°C



l Avoid ESD damage to K8.



l Please do not pull the cable or other connected devices, when K8 is working,



l Do not press hard, distort or disassemble K8.





l Please gently wipe the surface with soft and dry cloth, if K8 is dirty.



l Please connect USB cable and other external spare parts well before insert K8 into TV.



l We suggest you play multimedia with high-speed USB 2.0 devices.

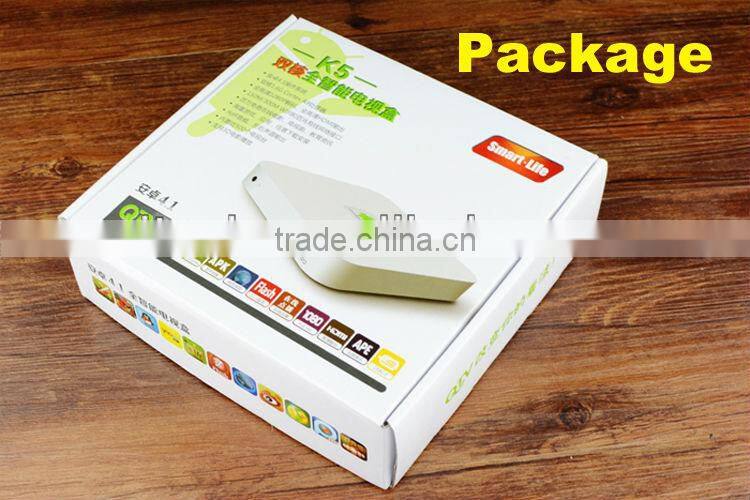

Package





 I believe you will be powerful of tv box which turn the common TV to a smart TV, please don't miss it!
