Home > Electrical & Electronics > Telecommunication & Broadcasting > Set Top Box > CCBOX-009T ALLWINNER A20 DDR3,Standard 1GBandroid Wifi Dongle tv Box

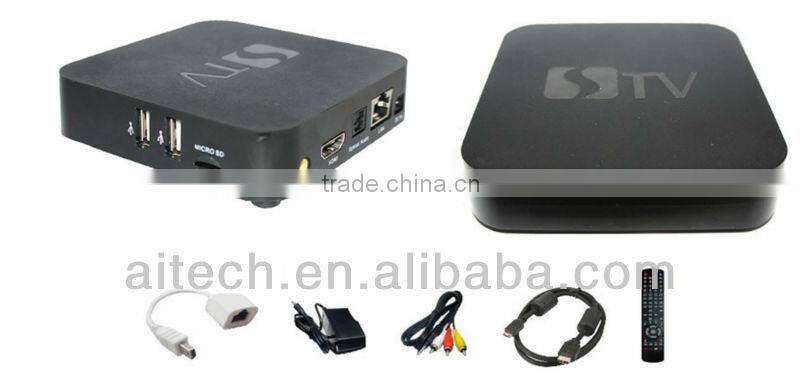

CCBOX-009T ALLWINNER A20 DDR3,Standard 1GBandroid Wifi Dongle tv Box

US$ 35 - 48 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

OEM

Model Number:

010

Contact Supplier Request Quote Chat Now

Shenzhen Winnatek Aitech Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name OEM

Model Number 010

Specifications

version:Android4.2
UI:Customized UI, the company also has own UI interface provides customers choose.

Specifications
System	ALLWINNER A20 Dual-core CPU (PIN-PIN A10)	Frequency	Dual ARM Cortex-A7,1.2GHz
		GPU	Mali-400 MP2 GPU, 2D/3D accelerator OPNE GL
		Decoding	3D acceleration,VPU:2160P Hardware decoding, 256 KB L2 Cache,3D HD video output
		Process	40-nanometer process

Configuration
Memory	DDR3,Standard 1GB, up to 2GB	FLASH	Standard 4GB, up to 32GB
Interface	USB	1 USB2.0 HOST
		A USB OTG interface, which at the same time can be powered on the machine
	HDMI	HDMI interface supports standard C class, the maximum resolution support 1080P output
	LAN	RJ45 support internet
	WI-FI	To WI-FI to support IEEE 802.11B/G/N format standard, high-sensitivity external antenna, this machine can replace the wireless router
	TF card slot	A standard TF card slot, external TF card
	S/P DIF	Standard S / P DIF interfaces
	AV output	Supports analog video CVBS output, left and right channel L / R output
	DC Input	Standard 3mm DC 5V interfaces
OS
Description	version	Android4.2
	UI	Customized UI, the company also has own UI interface provides customers choose.
	Operating	IR remote control support all Android applications operating with the IR mouse and shortcut functions	USB interface supports both air mouse and mouse / keyboard operation
Format	Audio	MP3,WMA,MP2,OGG,AAC,M4A,MA4,FLAC,APE,3GP,WAV
	Video	AVI(H.264, DIVX, DIVX, XVID, rm, rmvb, MKV(H.264, DIVX, DIVX, XVID), WMV, MOV, MP4(H.264, MPEG, DIVX, XVID), MPEG, MPG, FLV(H.263,H.264)
Accessory
List	Adapter5V/2A
	HDMI cable 1m
	Analog audio and video transmission cable
	Network cable
	Manual
	Two AAA batteries
	IR remote control
Advantage
Advantage	USB HOST	Support 2.4G air keyboard, wireless / wired mouse, USB keyboard, 2.4G somatosensory game handle (support the gyroscope), IR touch screen interface, USB Carema (mic) interface to support Internet telephony, USB turn URAT interface, support for plug-in GPS
	OTG	Support a basic OTG function, direct-attached printers, scanners, etc., at the same time can be used as USB DEVICE directly connected to the computer to copy data, it can be individually inserted USB DEVICE line, the external power supply of the machine
	Upgrade	Support TF card upgrade
	System Recovery	Before you plug in the power, the bottom of the machine by pressing the "1" key, plug in the power six seconds release, the unit enters recovery mode since to restore the factory system, follow the on-screen prompts to their own
	Special thermal design	Machine good heat dissipation, the highest temperature controlled at about 40 degrees
	Wireless router	WI-FI wireless routing capabilities, external wired network, when the home wireless router
	Other control devices	Support mobile phone remote control and DLNA, WI-FI Direct mobile peer operation
	Customized design	The company has strong technical development team, and support a variety of customized development, including UI, system functions, changes in the various modules, APK
