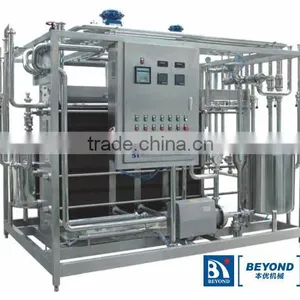

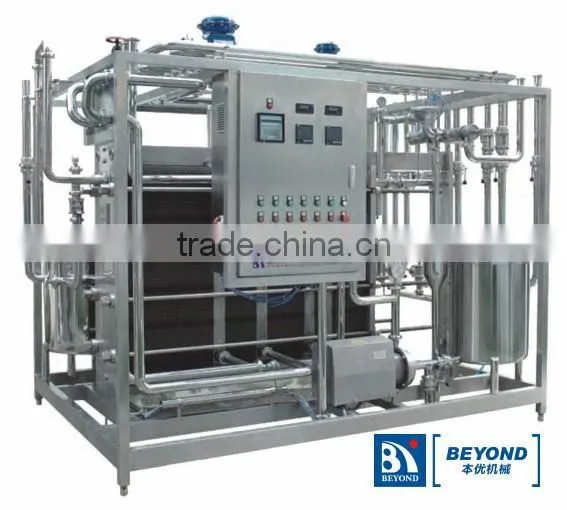

Pasteurizer for Milk and Juice

Pasteurizer for Milk and Juice thumbnail-1
Pasteurizer for Milk and Juice photo-1
US$ 20,000 - 60,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
Shanghai Beyond
Model Number:
customize
Contact Supplier Request Quote Chat Now
Shanghai Beyond Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name Shanghai Beyond
Model Number customize
Usage Milk
Voltage 380V-3-50Hz
Certification CE, sgs
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

This machine has features of high heat recovery, lower energy cost, strict design on the construction and easy operation.

Technical Parameter: 5℃→65℃(homogenization)→85℃(15S) →5℃



Production capacity: 500L-20T/H



This unit can be connected with separator, homogenizer, flash evaporator & degasser etc. This unit is used as Pasteurizer (widely used in fresh milk, milk beverage, juice, tea, alcohol, ice cream etc.), and also pre-sterilize material when producing Pasteurized milk (long life milk).

This machine has features of high heat recovery, lower energy cost, strict design on the construction and easy operation, simple maintenance.



Control type: Full-automatic control (PLC with touch screen), semi automatic.



Standard attachments:

 A. plate heat exchanger;                B. material-balance bucket;

C. hot water-balance drum;              D. hot water pump;              E. product pump;

F. steam & water mixer;                G. electricity box;

H. stainless steel pipes and valves etc.     I.PLC and color touch screen;





Model

Capacity

Heat exchange area(m²)

Power(kw)

Steam(kg/h)

External size(L×W×H)mm

Weight(kg)

BR16-BS-0.5

0.5

5

5.2

52

1200×1200×1500

790

BR16-BS-1

1

8

5.2

60

1500×1500×1800

880

BR16-BS-2

2 t/h

13

6

104

1800×2000×1800

980

BR26-BS-3

3 t/h

20

6

156

2000×2000×2200

1080

BR26-BS-4-5

4-5 t/h

30-45

8

260

2250×2000×2200

1250

BR26-BS-6-8

6-8 t/h

35-50

8

400

2250×2000×2200

1250

BR26-BS-10

10 t/h

60

11

520

2800×2000×2200

1650

BR35-BS-15

15 t/h

75

11

780

3000×2200×2200

2150

BR35-BS-20

20 t/h

80

11

945

3300×2200×2200

2350
