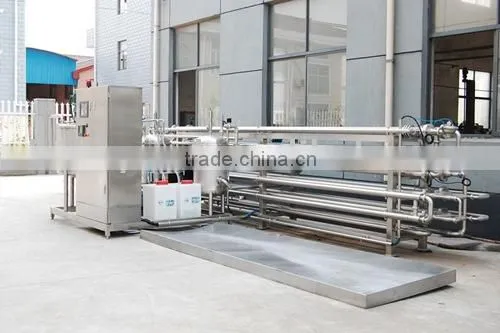

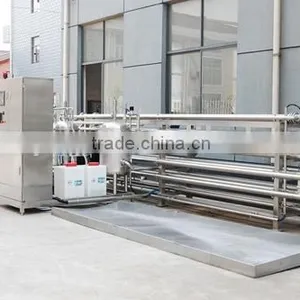

Help CenterFully Automatic Tubular Sterilizer
Related Products
Specifications
About the tubular sterilizer:1.aseptic tube-in tube pasteurizer
2.used for thicker liquids.
3.full auto control with PLC
Description for the tubular sterilizer:
This aseptic tube-in tube pasteurizer is widely used to perform continuous sterilization on thicker products, such as various of concentrated juice, paste and similar high viscidity products.
Procedures technical: 25→95-121(120S-180S)→25-35, the final products can be filled in aseptic big bags for room temperature storage;
Compared to the other model, this machine has the following characteristics:
1. temperature difference between the product and the heating medium is small, so the heating is gentle; the heating tubular adopts tube in tubes type and the surface of the tube is mirror polished to reduce the deposition on the surface which will longer the working life of the machine.
2. it is of high degree automatic, can automatically control the CIP cleaning, self sterilizing, and the whole procedures steps; all the procedures are recorded and controllable.
3. it is of precise and reliable sterilizing temperature control; all the affecting factors such as steam pressure, steam flow rate, product flow rate are all controllable;
4. the inside of the tubular adopts advanced polish procedure, all tubes can perform fully cleaning, self sterilizing ensures the system at aseptic state;
5. the system is strong safety, the fittings all adopts reliable materials.
6. the system is of high reliable, main parts such as product pump, hot water pump, all kinds of valves, elements of the electrics are all of world known brands.
7. with self SIP system.
Full automatic control components: Spirax sarco reducer valve from UK, German Burkert & Spirax sarco temperature control system, German Labom temperature transducer, yuanan pipes and valves from shanghai , hot water pump from Italy, siemens LOGO touch-screen and PLC full automatic control, the precision of temperature control is ±0.5 degree, with self CIP and SIP system
