Semi-auto detached tank type CIP cleaning system
The heating type for the cleaning liquid is auto-heating. The operating principle: set the cleaning temperature on the temperature controller to control the steam control valve’s opening frequency to limit the steam amount and achieve to the required temperature for cleaning liquid. All the tanks liquid level in the CIP system adopt the auto-alarm. It will be increased to the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced.
The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves. Workers will need to add the water when the tank is lack of water.

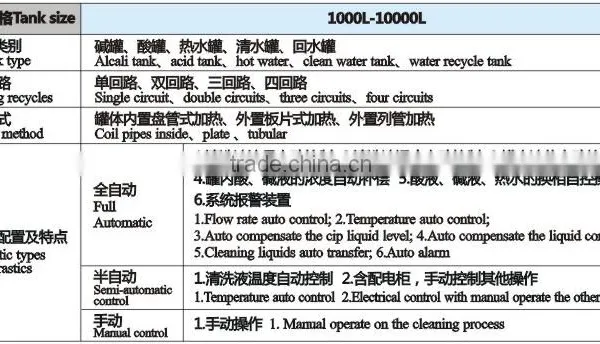

CIP Tank size |
1000L-10000L |
|
CIP tank type |
Alkali tank, acid tank, hot water, clean water tank, water recycle tank |
|
Cleaning recycles |
Single circuit, double circuits, three circuits, four circuits |
|
Heating method |
Coil pipes inside, plate heating ,tubular heating |
|
Automatic types and characteristics |
Full Automatic |
1.Flow rate auto control; 2. Temperature auto control; 3. Auto compensate the cip liquid level; 4. Auto compensate the liquid concentrate; 5. Cleaning liquids auto transfer; 6. Auto alarm |
Semi-automatic |
1. Temperature auto control 2. Electrical control with manual operate the other matters. |
|
Manual |
Manual operate on the cleaning process |
|
Condition: New
Brand name: Shanghai Beyond;
Type: whole processing Line/turnkey project/fruit and vegetables processing/dairy processing/beverage processing
Voltage: 220v/380v
Power(W): 100-200kw
Weight: Different size different weight/customized
Dimension(L*W*H): Different size different dimension/customized
Certification: CE&ISO
Warranty: 12 months/1 year
After-sales Service Provided: Engineers available to service machinery overseas
Main material: SUS304 or SUS316
Control type: automatic, semi-automatic
energy consumption: Low consumption with high efficiency
capacity: 500-10000L/H-customized
installation period: 1-3months
Period time: 30 days-120 days
Cups material: pouches, paper box, glass bottle, pet bottle, glass bottle
Product storage condition: room temperature; low temperature;
packaging details: 1.the equipment will be first wrapped by plastic film
2.then we will make sainless steel supported with styrofoam on it under the equipments
3.lastly the equipment will be put in wood crates
Engineer will be sent for the commissiong work and also be responsible for trainment of customer's workers.
Shanghai Beyond Machinery Co., Ltd, as a private business started in the year of 2005, is a specialized technology-oriented machinery manufacturing enterprise. Beyond specializes in the turn-key projects of the design, manufacture, installation and commissioning for the production lines of liquid food such as dairy, drink, ice cream, fruit and vegetable, bio-engineering, chemical and pharmaceutical.
