Specifications
CIP system:food plant cleaning system
full/semi-automatic control
PHE or THE heating
with pipes and fittings

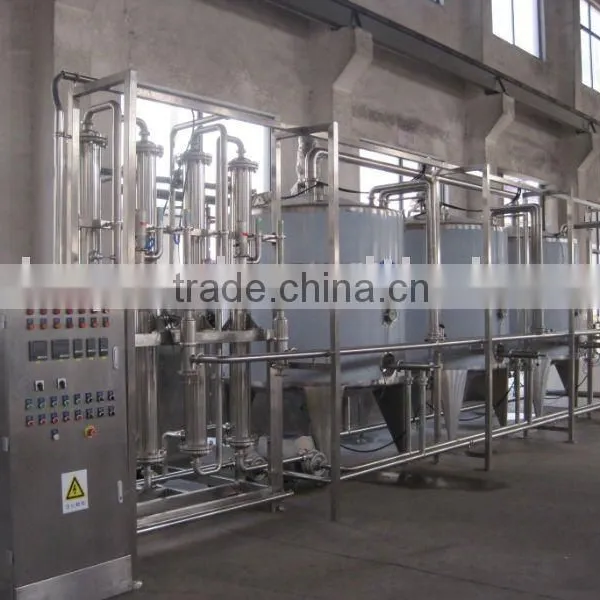

The whole CIP system is installed on a frame and supporter which is easy for transportation especially exporting; The heating way for the cleaning liquid is auto-heating.
The operating principle: set the cleaning temperature through the temperature controller to control the steam control valves opening frequency to limit the steam amount making the cleaning liquid keep at needed temperature. All the tanks liquid level in the CIP system adopt the auto-alarm. It will be increased the concentrated acid and alkali through manually way when the cleaning liquid concentration reduced.
The cleaning process transforming should be operated by the manually to change some relevant pipelines and valves. Workers should increase the water when the tank lack of water.
Tank size |
1000L-10000L |
|
CIP tank type |
Alcali tankacid tankhot waterclean water tankwater recycle tank |
|
Cleaning recycles |
Single circuitdouble circuitsthree circuitsfour circuits |
|
Heating method |
Coil pipes insideplate tubular |
|
Automatic types and charastics |
Full Automatic |
1. flow rate auto control; 2. temperature auto control; 3. auto compensate the cip liquid level; 4. auto compensate the liquid concentrate; 5. cleaning liquids auto transfer; 6. auto alarm |
|
Semi-auto control |
1. temperature auto control 2. electrical control with manual operate the other matters. |
|
|
Manual operation |
1. manual operate on the cleaning process |
|
