Specifications
Hot sale IR Remote LED RGB Music controller with remoteInput: DC5V, 12V -24V
Output current: <3A/Road
Output gray: RGB 256

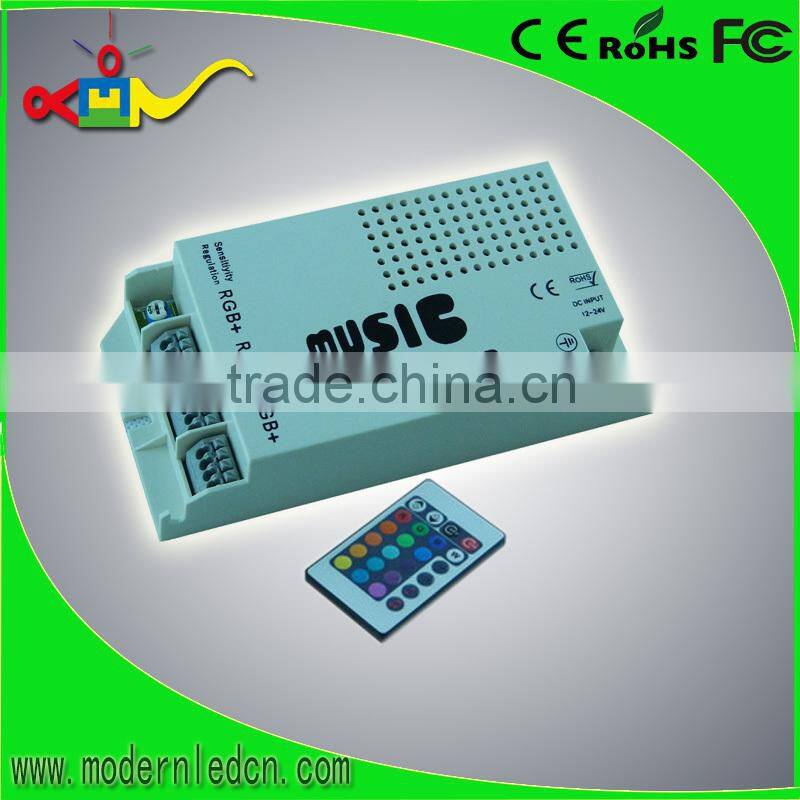

Hot sale IR Remote LED RGB Music controller with remote
Description:
Music is a universal high-performance controller, using the most advanced PWM (pulse width modulation) control technology. To fit for all of the constant voltage full-color LED lighting products.
Parameters
Input voltage: DC5V, 12V -24V optional (point out required voltage)
Output current: <3A / Road
Output power: 5V: <45W, 12V:<108W, 24V:<216W
Output gray: RGB 256 each
Working temperature: -20Celsius -70Celsius

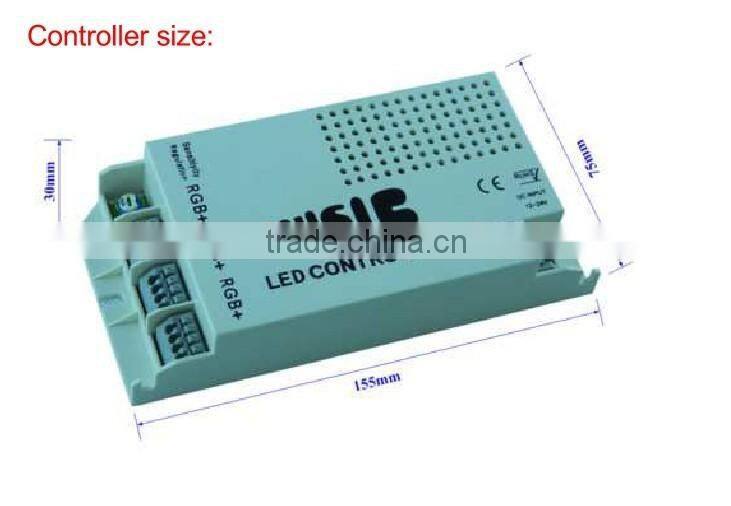

Controller Dimensions: L155 × W75 × H30mm

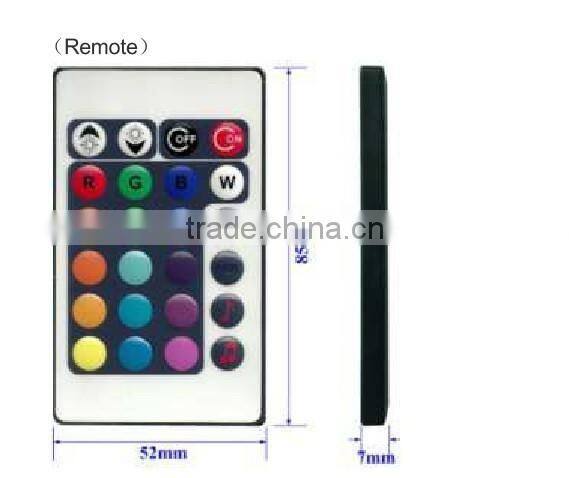

Remote control Dimensions: L85 × W52 × H7mm
Weight: 137g
Operation instructions:

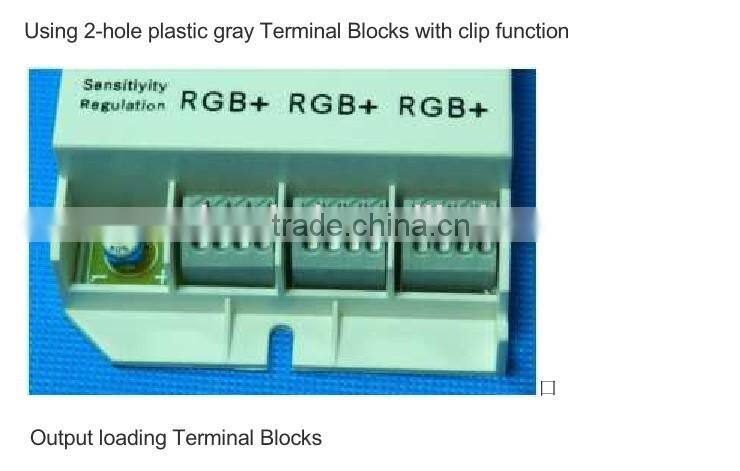

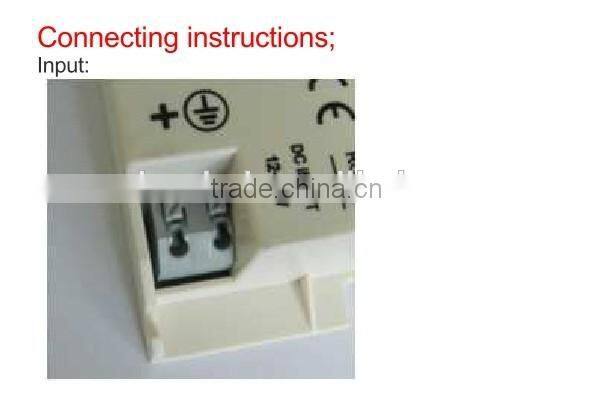

Connect the load line firstly, then connect the power input wires; ensure that no short circuit before powered;
The controller uses infrared remote control to operate, to control light on/off, 16 kinds of colors, two kinds of dynamic change mode, two kinds of voice mode, and can adjust the brightness of the static mode, in the dynamic mode can adjust the speed.

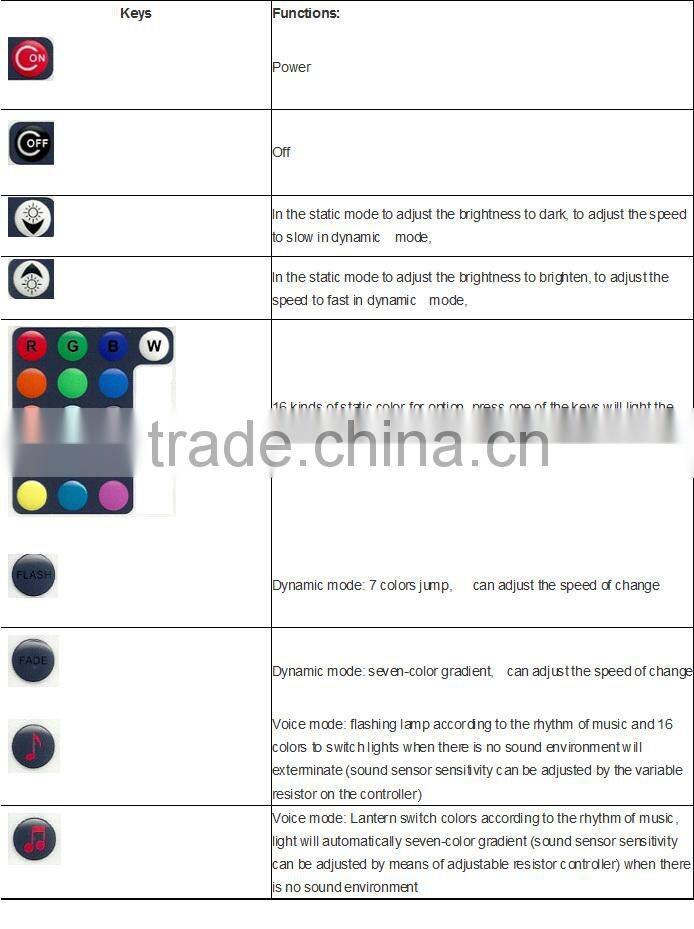

Remote control key functions are in the following:

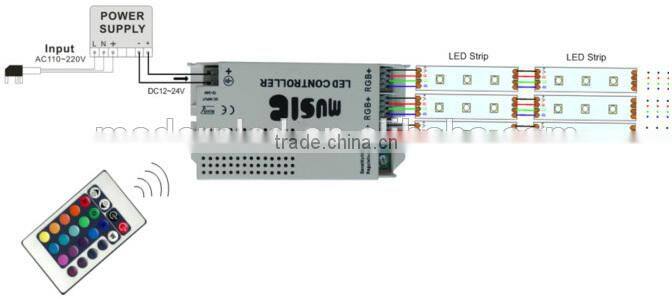

Typical applications
Precautions
1. the product supply voltage DC5V / 12 -24V, can not accept the other voltages;
2. Lead lines shall be connected directly with the color and label the wiring diagram provided,
3. the product can not overload.
