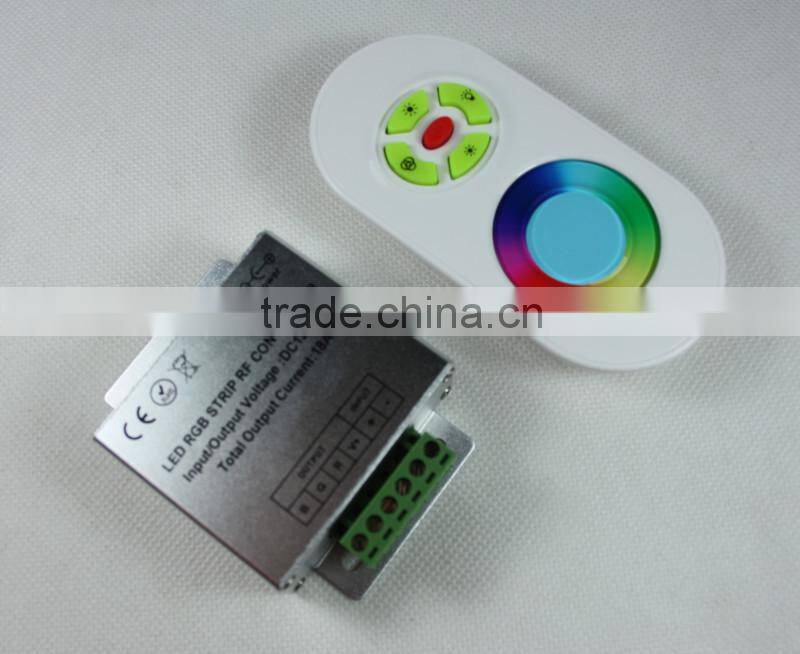

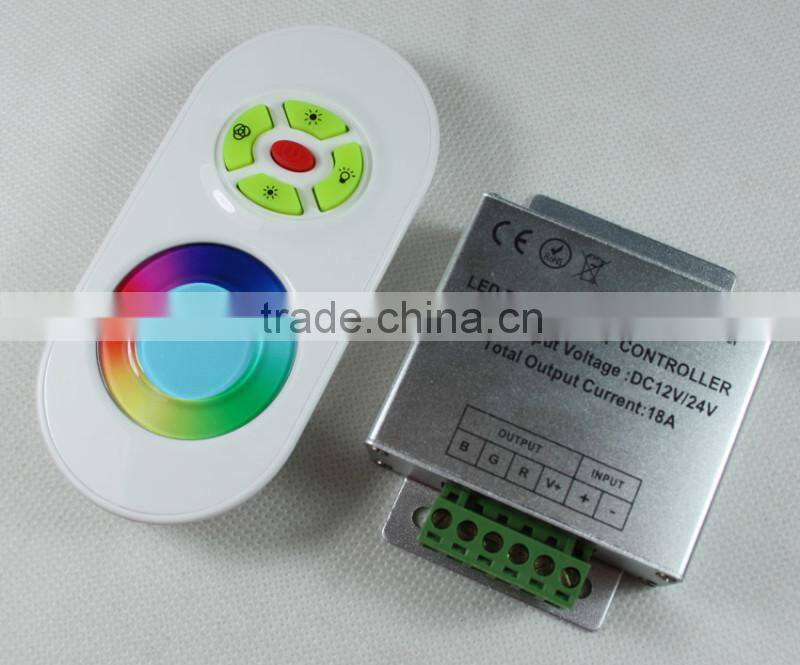

Hot sale IR Remote LED RGB controller with circular remote controller
Description:

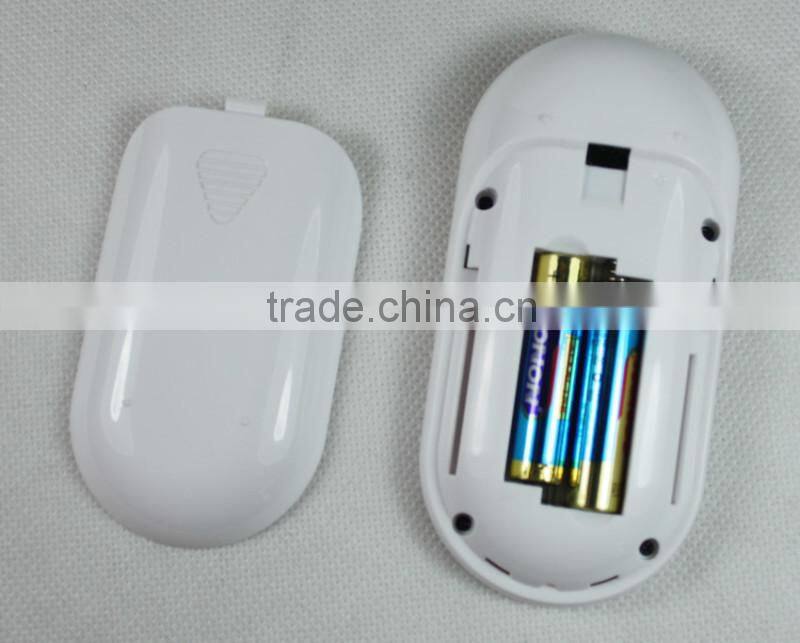

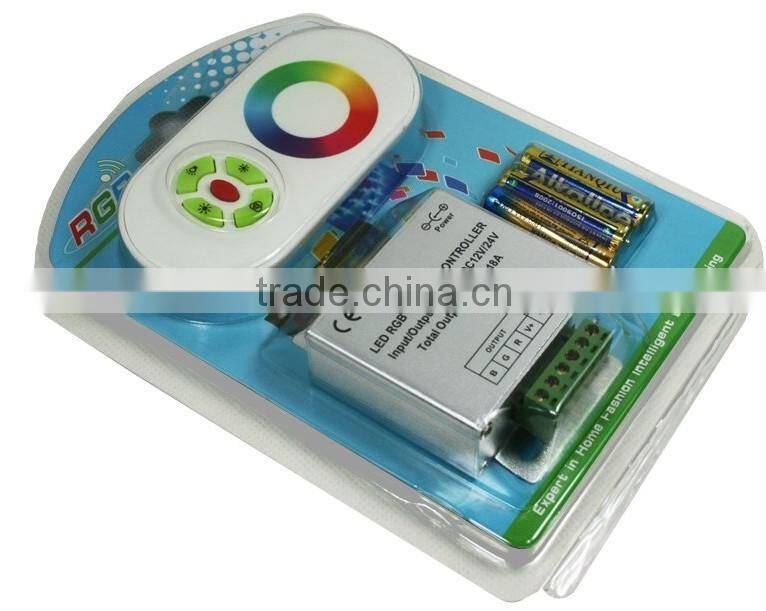

One package includes:one controller,one remote control(without battery)
one core-end terminal,one usage instruction
Parameters
Input voltage: DC5V, 12V -24V optional (point out required voltage)
Output current: <3A / Road
Output power: 5V: <45W, 12V:<108W, 24V:<216W
Output gray: RGB 256 each
Working temperature: -20Celsius -70Celsius
Controller Dimensions: L120 × W70 × H50mm
Remote control Dimensions: L85 × W52 × H7mm
Weight: 137g

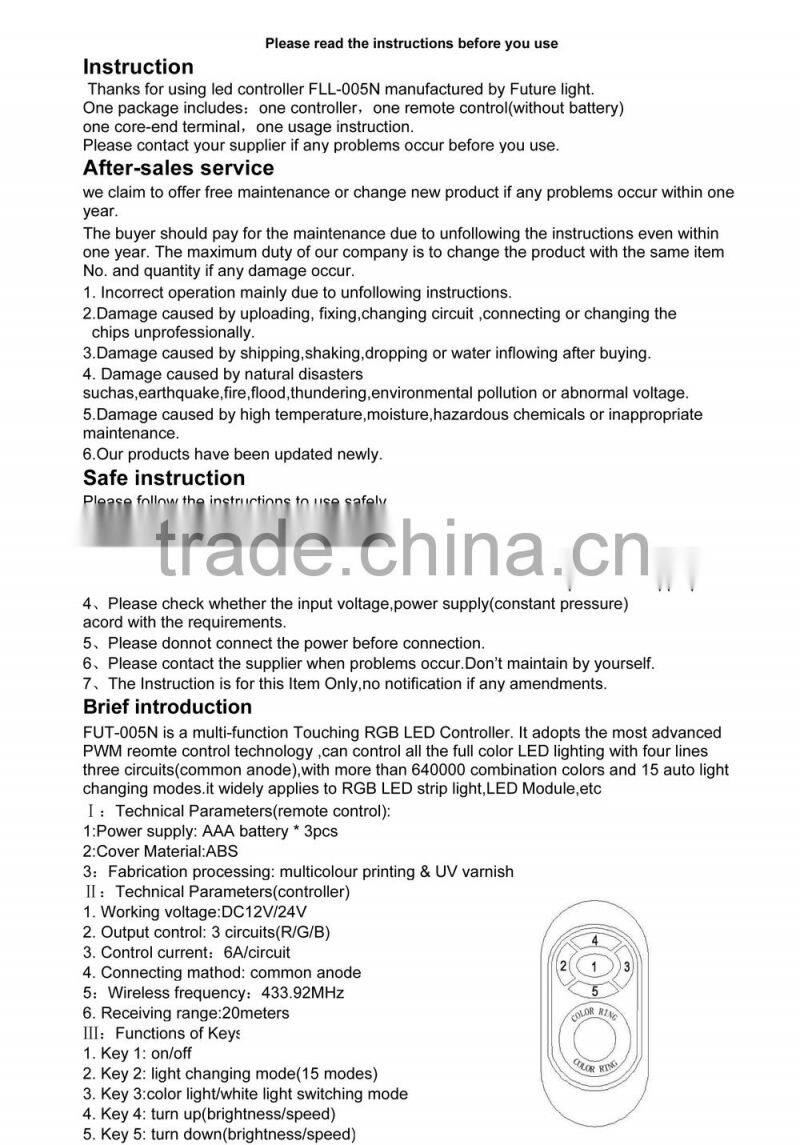

Operation instructions:
Connect the load line firstly, then connect the power input wires; ensure that no short circuit before powered;
The controller uses infrared remote control to operate, to control light on/off, 16 kinds of colors, two kinds of dynamic change mode, two kinds of voice mode, and can adjust the brightness of the static mode, in the dynamic mode can adjust the speed.

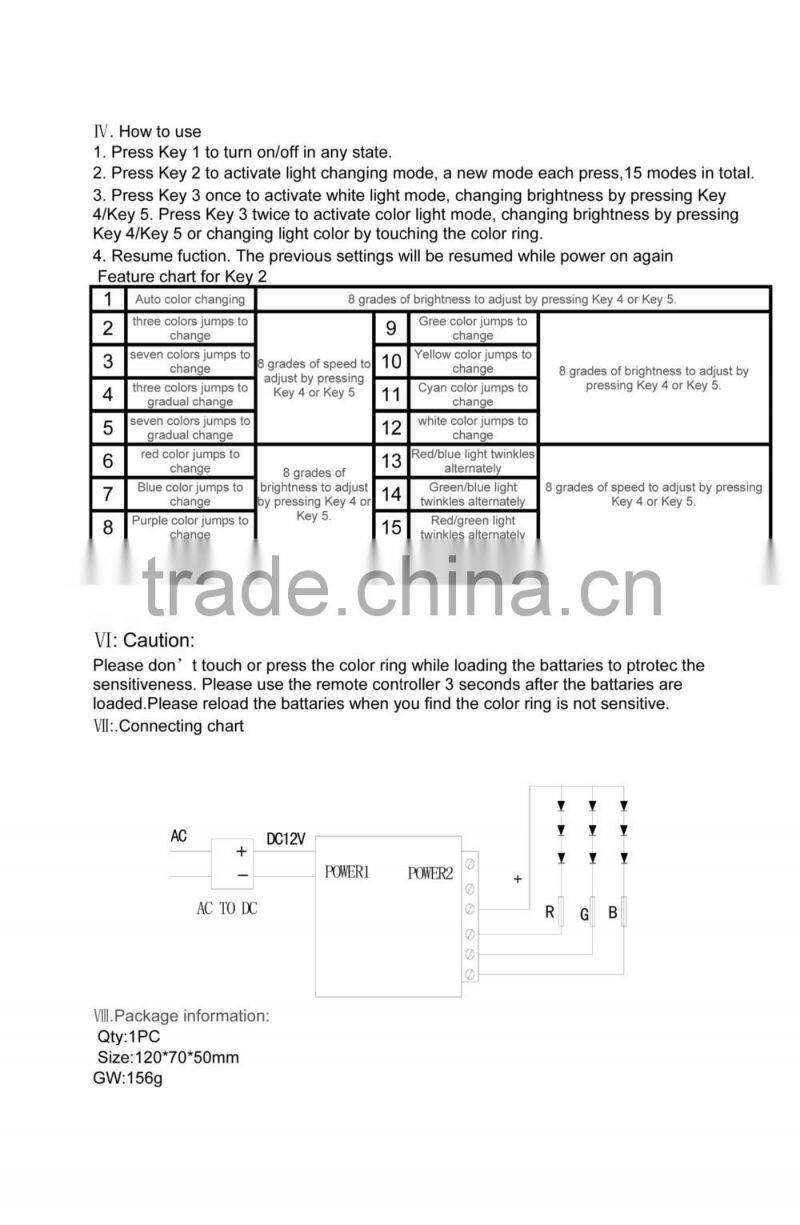

Remote control key functions are in the following:
Typical applications
Precautions
1. the product supply voltage DC5V / 12 -24V, can not accept the other voltages;

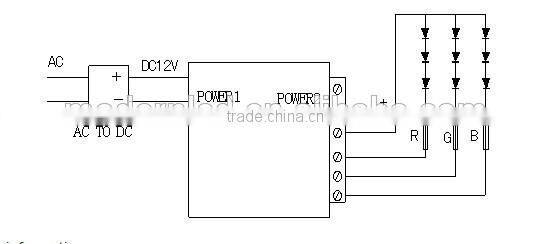

2. Lead lines shall be connected directly with the color and label the wiring diagram provided,
3. the product can not overload.
