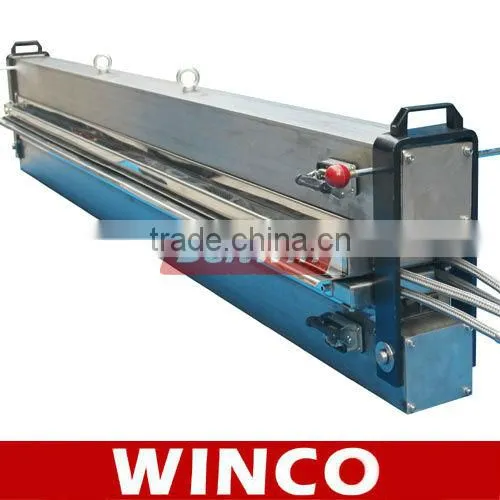

Beltwin Stainless Steel Pvc pu Belting Hot Air Vulcanization Equipment
US$ 2,000 - 20,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Vulcanizer
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shangai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Beltwin Rubber Belt Water Coold Heating Vulcanizing SolutionUS$ 5,000 - 20,000MOQ: 1 Unit -
Beltwin 2016 New Conveyor Belt Welding Jointing MachineUS$ 5,000 - 20,000MOQ: 1 Unit
-
Portable Transmission Belt Press for PVC Polyurethane and Spindle Tape and Tangential BeltUS$ 100 - 5,000MOQ: 1 Unit
-
Beltwin Auto 200psi Sectional Plate Conveyor Belt Rubber Vulcanizing Press With Electric PumpUS$ 5,000 - 20,000MOQ: 1 Unit
-
Beltwin Pressure Bag Conveyor Sectional Rubber Belt Vulcanizer at Best PriceUS$ 5,000 - 20,000MOQ: 1 Unit
Condition
New
Type
Vulcanizer
Place of Origin
Zhejiang, China
Brand Name
Beltwin
Model Number
DLPVC-1000mm
Voltage
220V 380V
Power(W)
3200
Dimension(L*W*H)
1200x 200x 250
Weight
110kgs
Certification
ISO9001
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Special for PVC PE PU belt2.Water Cooling system within platens
3.Temperature range: 0~200C
4.Air pressure bag 0~0.5mpa
- 1200mm width (other width on your request)
- Easy and quick pressure build-up by means of compressed air, 0~0.3Mpa (can adjust)
- Used for PVC belt, Polyurethane belt (PU belt) and Polyester Monofilament synthetic belting
- Rapid Cooling system within platens
- Reliable and automatic Temperature Control Panel with time control
- Light weight construction with aluminum profiles
- Temperature regulation between 0° to 200°C
- Voltage: 220V or 380V, 400V, 415, 480V etc., other voltages on request.
- Integrated air control with pressure gauge and safety valve
- Packing Dimension: 2430*580*590mm
- Gross Weight: 200KGS
Technical Datasheet:
| Model | Heating plate size LxW (mm) | Width of the belt (mm) | Total Power (W) | Dimension (LxWxH) mm | Total Weight KGS |
| DLPVC – 100×200 | 100×200 | 200 | 560 | 330 x 135 x 180 | 7 |
| DLPVC – 150×250 | 150×250 | 250 | 1000 | 350 x 192 x 180 | 10 |
| DLPVC -160×400 | 160×400 | 400 | 2200 | 550 x 215 x 200 | 20 |
| DLPVC – 200×500 | 700×200 | 500 | 2300 | 700x200x 230 | 40 |
| DLPVC – 200×600 | 800×200 | 600 | 2400 | 800x 200x 230 | 60 |
| DLPVC – 200×800 | 1000×200 | 800 | 2800 | 100 0x 200x 250 | 90 |
| DLPVC -200×1000 | 1050×200 | 1000 | 3200 | 1200x 200x 250 | 110 |
| DLPVC -200×1200 | 1250×200 | 1200 | 3600 | 1450 x 200x 250 | 125 |
| DLPVC -200×1500 | 1650×200 | 1500 | 4000 | 1850x200x460 | 165 |
| DLPVC – 200×1600 | 1750×200 | 1600 | 4800 | 1950x200x460 | 175 |
| DLPVC -200×1800 | 1950×200 | 1800 | 5280 | 2150x200x460 | 195 |
| DLPVC-200×2000 | 2150×200 | 2000 | 5920 | 2350x200x460 | 210 |
| DLPVC-200×2200 | 2350×200 | 2200 | 6800 | 2550x200x460 | 230 |
| DLPVC-200×2500 | 2650×200 | 2500 | 8200 | 2850x200x620 | 275 |
| DLPVC-200×3000 | 3150×200 | 3000 | 8800 | 3350x200x660 | 320 |
| DLPVC-200×4000 | 4150×200 | 4000 | 9600 | 4350x200x760 | 430 |
How to work:
5. Other machines we can supply: more information pls freely to visit our website
6. Packing:
7. Some shipping records, air shipment and sea shipment bill of ladings
8. Working photos from customers
