Home > Products > Vulcanizing Machines > Beltwin 200PSI Heavyweight Vulcanizing Equipment for Conveyor Belt
Beltwin 200PSI Heavyweight Vulcanizing Equipment for Conveyor Belt
- Shangai
- T/T Money Gram
You May Like
-
Beltwin SVP Sectional Heating Vulcanizing Press for Bonding Conveyor Belt
-
New 200PSI Conveyor Belt Vulcanization for Bonding Steelcord Belt
-
Beltwin 100PSI Good Quality Rubber Conveyor Belt Vulcaniser
-
Beltwin China Manufaturing Vulcanizing Rubber Cement Transmission Belt
-
Beltwin New Stainless Pvc/pu Conveyor Belt Heating Joint Water Cooled Machine
-
Beltwin Stainless Steel Pvc pu Belting Hot Air Vulcanization Equipment
Product Details
| Condition | New | Type | Vulcanizer | |
| Place of Origin | Zhejiang, China | Brand Name | Beltwin | |
| Model Number | DSLQ-S | Voltage | 380V. 660V. 480V. 440V. 415V. 400V or 220V | |
| Power(W) | 4~21.8KW | Dimension(L*W*H) | 1440x830x750 | |
| Weight | 625kgs | Certification | ISO9001 | |
| Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

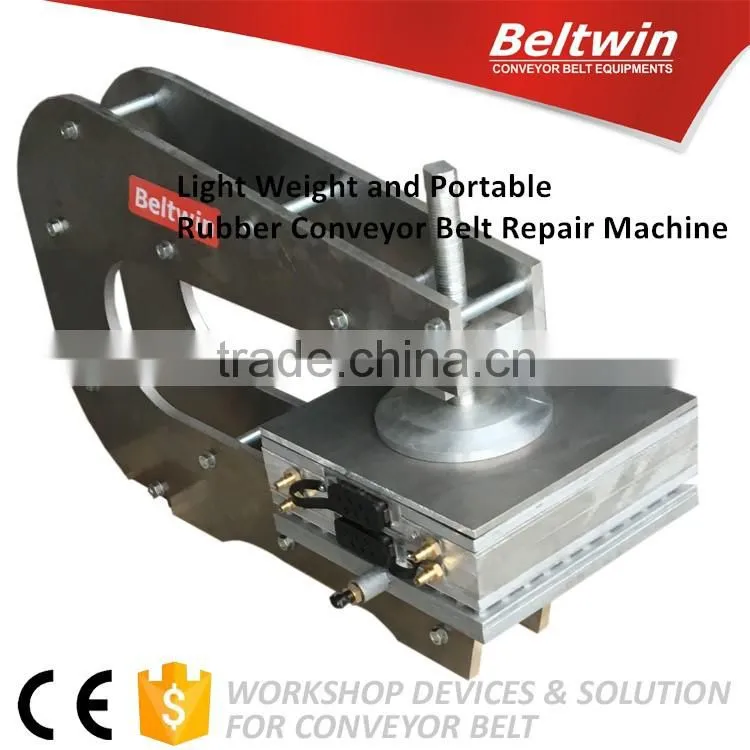

1.Convertor Belt Repairs

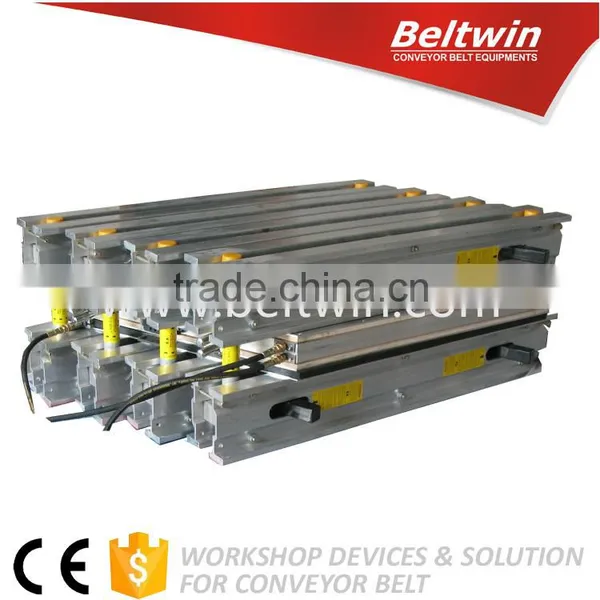

Beltwin CE SVP Sectional electric vulcanizer hot press with airbag waterbag
2.Conveyor Belt Splicing on Steel Cord Belts Beltwin 100psi200psi effective belt splicing vulcanizer for jointing fabric, steelcord
3.Conveyor Belt Splicing,Fabric Belts,PVC

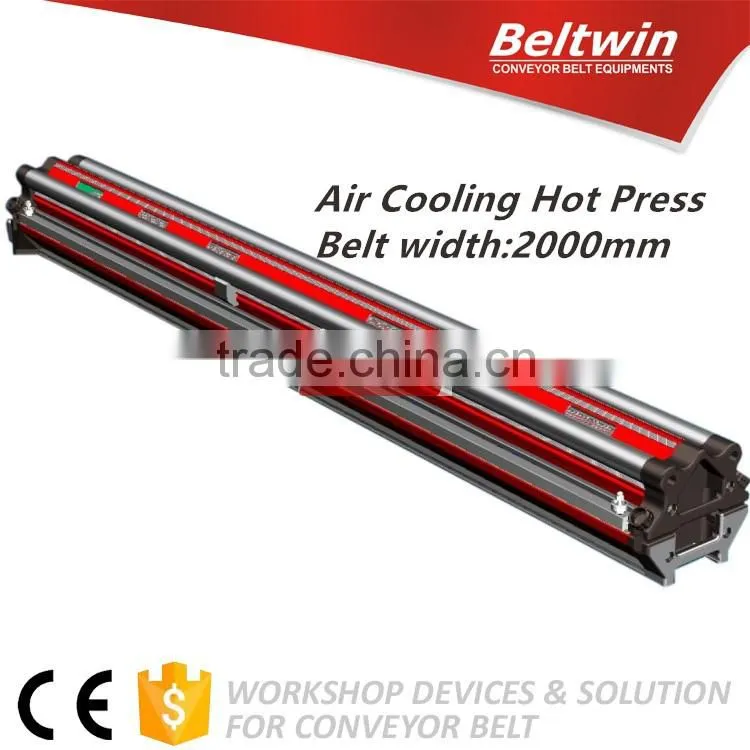

Beltwin electric heat vulcanizing belt press machine
4.Transmission Belts, Tangential Belt, Spindle Tape Splicing
Packaging Details: | Wooden box |
Delivery Detail: | 20 working days |
1. Technical Parameters Beltwin electric heat rubber press vulcanizing equipment for rubber conveyor belt
- Vulcanizing temperature:
145℃ (adjustable 0~200℃)
- Temperature-rising time (from normal temp to vulcanizing temp):
≤50 mins(around 25~30 mins normally)
- Improved cooling system: using pressure pump for cooling:
only 5mins (cooling from 145 to 75 degrees)
2.When order or inquiry, pls offer below informaiton:

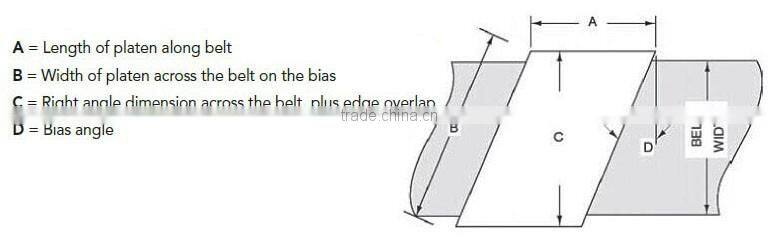

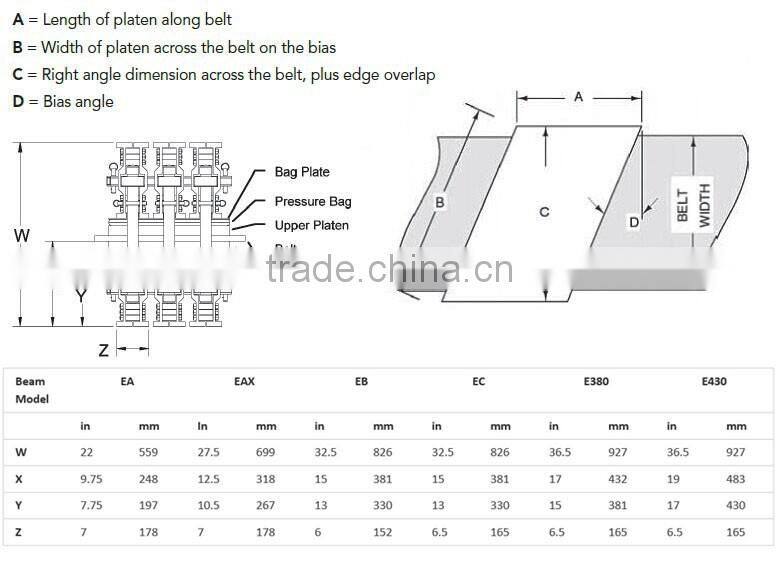

| 1.Heating platen length | (A=?) |
| 2.Belt max width | (B=?) |
| 3.Working pressure | 100PSI / 200PSI |
| 4.Working voltage | 380V/ 660V / 480V / 440V / 415V / 400V or 20V |
| What kind of press | normal type or 2pcs type |
Any other special requirement pls contact us.
More informaiton pls freely to visit our website:
Belt width: from 650mm to 3000mm 200PSI Almex alike Uniform Pressure Bag for Conveyor Belt Press
Degree of the heating platen: 22 °/17 °/ 20 ° (rectangle and other degree is optional)
Waterbag/ air pressure Press for 100PSI, 200PSI etc.
Surface pressure for textile and steel cord belts, Up to 1.8Mpa.
- 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting
- 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steel cord conveyor belting
- Customization/OEM:Different heating platen size and combination
3. Specification
1. 100 p.s.i. (7 kg/cm sq.) units suitable for splicing fabric ply belting.
2. 200 p.s.i. (14 kg/cm sq.) units suitable for splicing steelcord conveyor belting.
4. Main componets

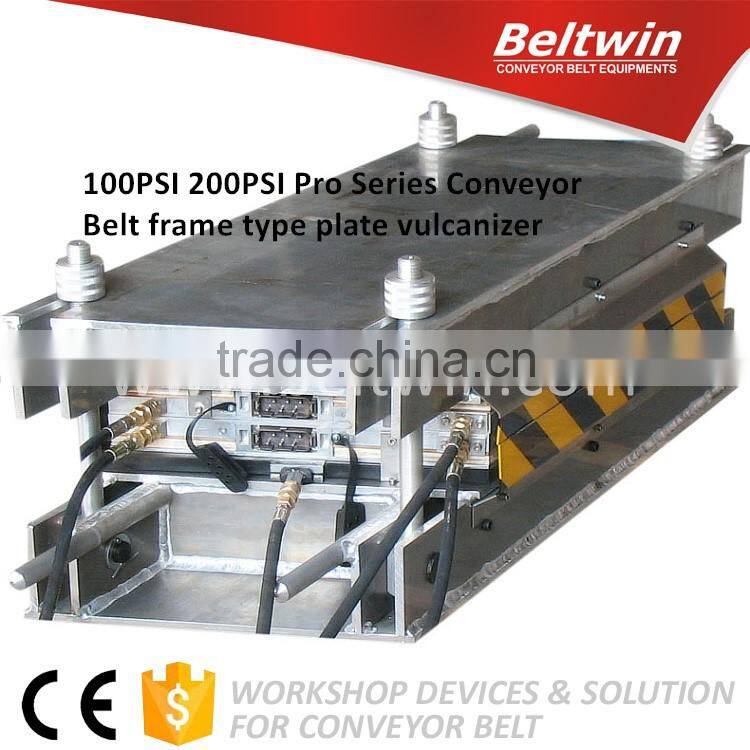

1. Aluminum Frame (Spanner Bars):
High quality aluminum, designed for any belt width or operating pressure (from EA up to E430)

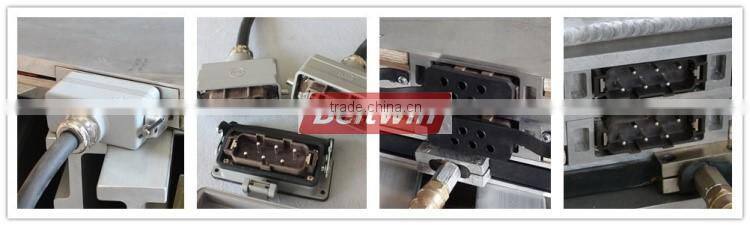

4.New electric connect system (Old flat plug & socket design: plug pins broken easily)
5. Automaitc control panel
5. CE
| | | |
Sincerely Looking forward to your inquiry
Our products and service are worth of your serious consideration
