Specifications
1.Hot splice all types of conveyor belts2.Belt width: max 3400mm
3.Conveyor Belt Vulcanizer and belt jointing press
1. Specification
| Model | Heating plate size LxW | Width of the belt | Total Power (KW) | Weight of the heaviest part | Dimension (LxWxH) | Total Weight |
| DSLQ-650 | 830x838 | 650 | 4 | 45.5 | 1142x830x750 |
420 |
| DSLQ-800 | 830x989 | 800 | 7.2 | 53.8 | 1320x830x750 |
530 |
| DSLQ-1000 | 830x1190 | 1000 | 8.4 | 60.5 | 1440x830x750 |
625 |
| DSLQ-1200 | 830x1420 | 1200 | 10.8 | 69.3 | 1680x830x750 |
750 |
| DSLQ-1400 | 830x1640 | 1400 | 11.4 | 78.8 | 1950x830x750 |
911 |
| DSLQ-1600 | 830x1808 | 1600 | 13.2 | 89.7 | 2060x830x980 |
1056 |
| DSLQ-1800 | 830x2078 | 1800 | 15 | 98.3 | 2320x830x980 |
1198 |
| DSLQ-2000 | 830x2328 | 2000 | 16.8 | 107.4 | 2582x830x980 |
1315 |
| DSLQ-2200 | 830x2508 | 2200 | 18 | 130.5 | 2842x830x980 |
1422 |
| DSLQ-2400 | 830x2638 | 2400 | 19.5 | 140 | 2950x830x980 |
1500 |
| DSLQ-2600 | 830x2828 | 2600 | 21.8 | 150 | 3128x830x980 |
1628 |
Beltwin’s experience in conveyor belt vulcanizing industry allows for a higher knowledge of customer’s technical requirements.
- Conveyor Belt Splicing on Steel Cord Belts
- Conveyor Belt Splicing, Fabric Belts, PVC
- Conveyor Belt Repairs
- Transmission Belts, Tangential Belt, Spindle Tape Splicing

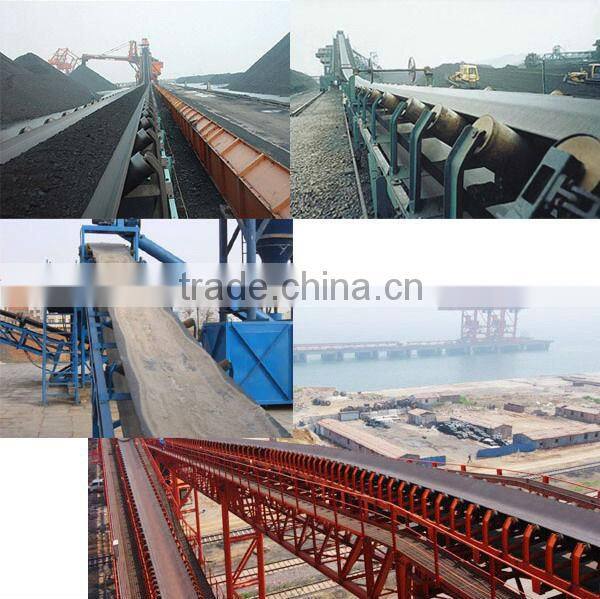

Industries application:
- Metallurgical plants
- Mines
- Electric power plants
- Docks
- Rubber
- Escalator
2. When order
Joint length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary. Make clear for model and specification of product and indicate width and tensile strength of rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.

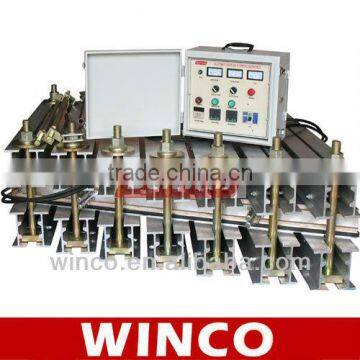

Standard Press will include below components:
- Standard is Auto Electric pumps (if small press, also will suggest use manual pump, save cost)
- Standard heating platen with Water cooling system and with new plug & socket
- With Almex style pressure bag (double layers rubber bag, without aluminum alloy frame, is complete integral)
- For 200PSI, we will choose steel bolts & nuts and for 100PSI, we will choose aluminum bolts & nuts
- Standard high quality auto controller
Before order, or send inquiry to us, pls include below informaiton:
- Belt max width
- Heating platen length
- what kind of press, normal type or 2pcs type.
- Working pressure
- Working voltage
- Any other special requirements, for example like 2 sets small heating platens for one big press etc. thanks.
more informaiton pls freely to visit our website:
3. Technical Parameters
1.Power Voltage: 380V. 660V. 480V. 440V. 415V. 400V or 220V 2.Vulcanizing pressure: 0.6~1.2 MPa (6~12kg / cm2) (Determined by detailed rubber belts) Other vulcanizing pressure can also be available at negotiated price. 3.Vulcanizing temperature: 145°C (adjustable 0~200°C) 4.Temperature-rising time (from normal temperature to vulcanizing temperature): no more than 35 min 5.Time of heat preservation for vulcanizing could be adjusted according to thickness of rubber belt;

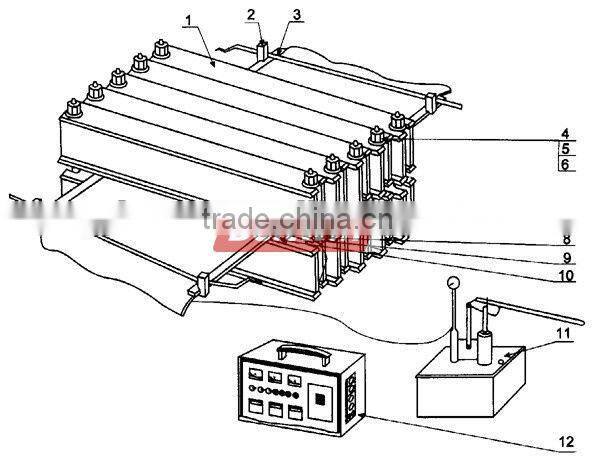

4. Structure
5. Main Componetns

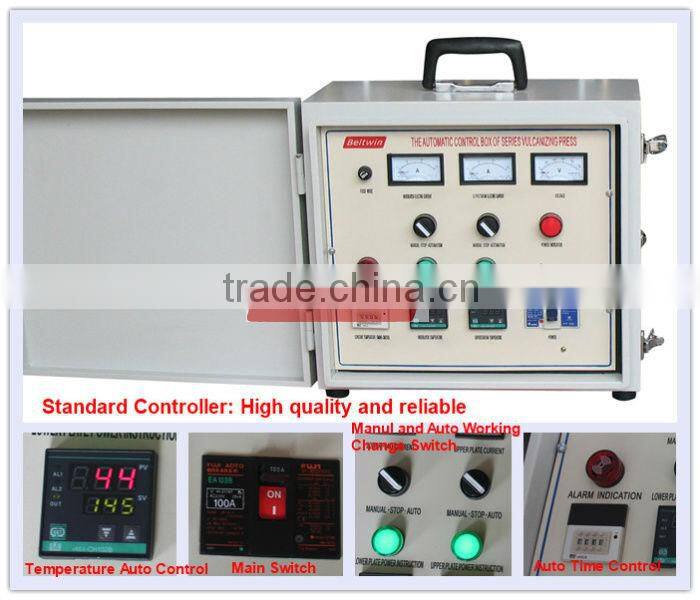

Auto controller, with high quality electric device, auto time and temperature control
Standard controller:

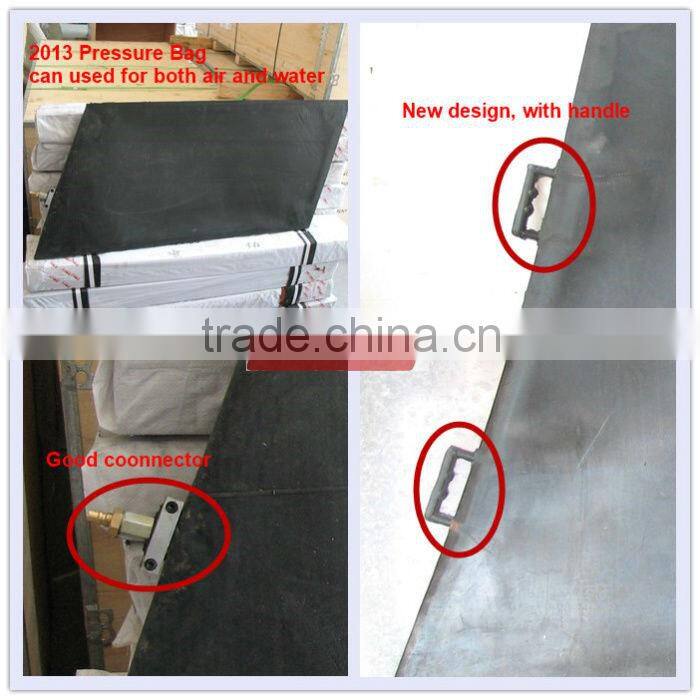

New Almex style pressure bags:
100PSI 200PSI Pressure bag, used for both air and water. 22 degree or other degree accords to your requirements.

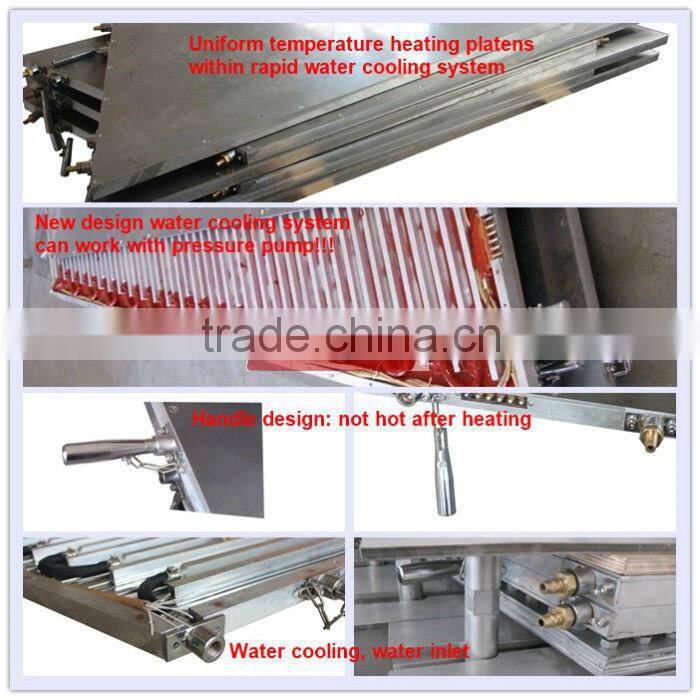

Structure of the heating platen, With rapid water cooling system, cooling from 145°C to 75°C, only need 5mins;

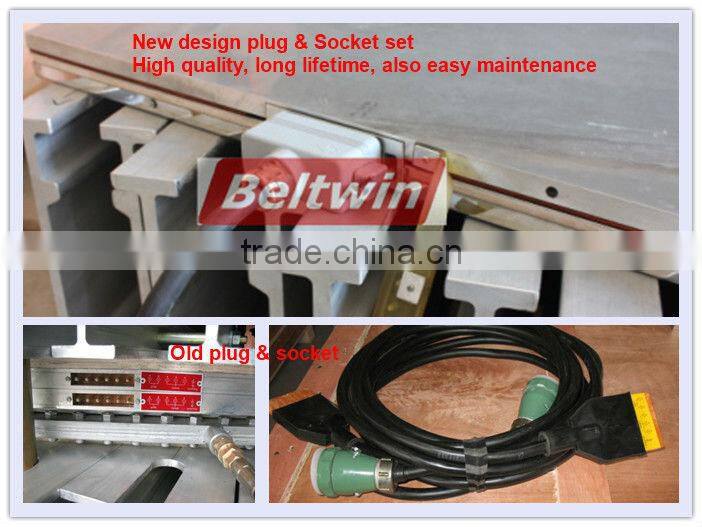

New socket & Plug set:

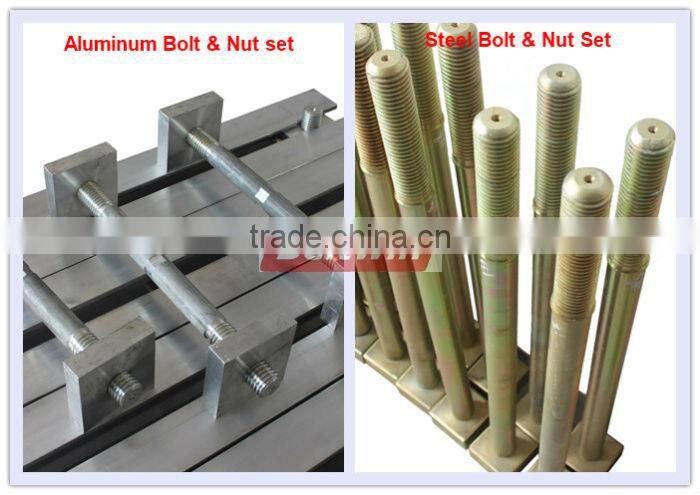

Steel or Aluminum bolts & nuts Assembly:

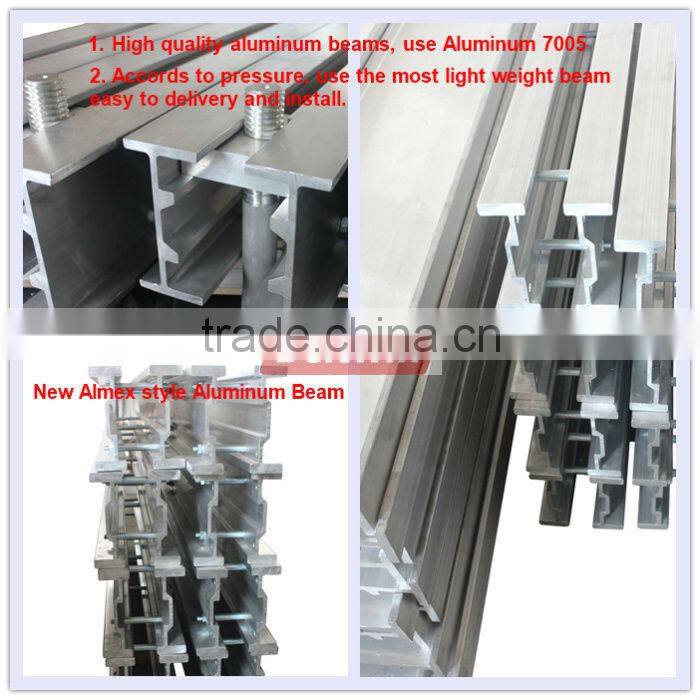

Strong enough beam, use the best Aluminum alloy material:
5. Other machines we can supply: more information pls freely to visit our website

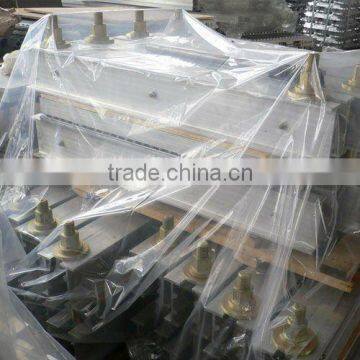

6. Packing:
7. Some shipping records, air shipment and sea shipment bill of ladings
8. Working photos from customers
