C-Clamp Rubber Conveyor Belt Repair Vulcanizer for Edge-repairs
- Shanghai
- T/T L/C D/P D/A Credit Card
You May Like
-
Automatic PVC PU Belt Puncher Machine
-
Beltwin High Efficiency New PVC PU Rubber Belt Ply Separator Splitting Machines
-
Beltwin Splice Press With Water Cooling, Under 400mm With Temperature Controller
-
Beltwin Tangential Belt Small Manual Finger Punching Tool 100mm
-
Beltwin Portable Press for Splicing Transmission Belts
-
Beltwin Small Spindle Tape Tangential Belt Heating Splice Press Machine
Product Details
Condition | New | Type | Vulcanizer | |
Place of Origin | Zhejiang, China | Brand Name | Beltwin | |
Model Number | C-clamp | Voltage | 220V 380V | |
Power(W) | 1.6~.17KW | Dimension(L*W*H) | 1550*515*750 | |
Weight | 85kgs | Certification | ISO9001 | |
Warranty | one year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
More Considerate; More Professional
Beltwin CE Air Cooling Portable Lightweight Press for PVC PU Conveyor Belts novitool fonmar Habasit flexco aero
All our services just go for you
Beltwin’s rich experience in conveyor belt vulcanizing industry
allows for higher technical requirements of customers
- Conveyor Belt Splicing on Steel Cord Belts
- Conveyor Belt Splicing, Fabric Belts, PVC
- Conveyor Belt Repairs
- Transmission Belts, Tangential Belt, Spindle Tape Splicing
1. Specification
C-Clamp Repair Vulcanizers, special used for the edge-repairs of the belt. Hydraulic and Mechanical type. Also with automatic temperature and time controller.
Model | DDQ-1 DDQ-2 | DJQ | DZQ |
Application | For small holes | For the side of the belt, long rips | Multifunction, combined type used for small holes or long rips |
Conveyor Belt type | Canvas, nylon, steel cord belt | Canvas, nylon, steel cord belt | Canvas, nylon, steel cord belt |
Repair Belt width | 650-2600 DDQ-1 used for wider than 1400mm DDQ-2 used for under 1400mm | 650-2600 | 650-2600 |
Max rips size (mm) | 250x250 | 100 (200) x 900 100 (200) x 1400 | 250x1380 |
Heating plate size (mm) | 350x350 | 160x1000 160x1500 | 350x1500 350x1000 |
Temperature range | 0~200°C | 0~200°C | 0~200°C |
Voltage | 380V or 220V or other special voltage | 380V or 220V or other special voltage | 380V or 220V or other special voltage |
Pressure | 0.4Mpa | 0.4Mpa | 0.4Mpa |
2. Components of a Hydraulic/Mechanical C-Clamp Vulcanizer
1: C-Clamps
A. pressure c-clamps made of aluminium alloy
B. maximum resistance to bending with minimum weight
C. for conveyor belt repairs from belt edges up to belt center
D. available sizes: also can make speical accords to customer's requirements
160*800MM 160*1000MM 160*1500MM 160*2000MM
200*800MM 200*1000MM 200*1500MM 200*2000MM

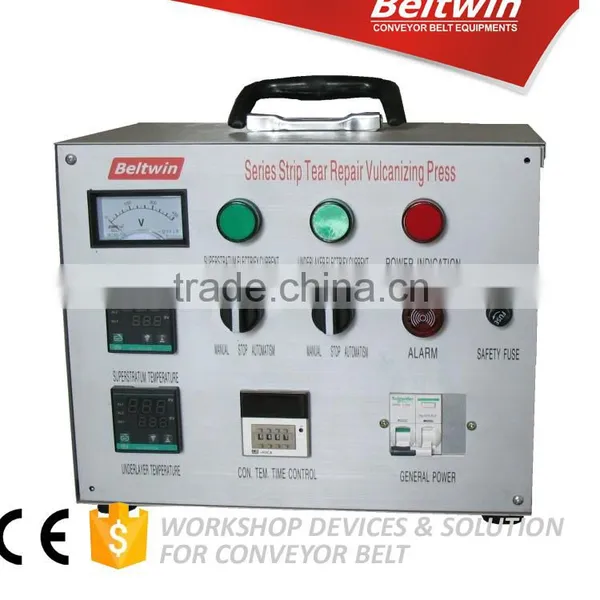

2:Automatic Switch Cabinet
A. with connecting cables (number and type depends on number and sizes of the heating platens)
B. digital temperature display
