TZ-7124 AZ-7124 Normal Close On-off Roller Lever 250VAC 10A Micro Switch

FOB Price

US$ 1 - 5 / Piece

10 Pieces(Min. Order)

Port ningbo/shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China	Brand Name	BIGM
Model Number	TZ-7124 AZ-7124	Max. Current	10A
Max. Voltage	480V	Operating Temperature	60
Protection Level	IP40

Product Description

Specifications

1.Rated voltage:125V 250V 480V 8VDC 14VDC 30VDC
2.Rated current:10A
3.Taiwan Tend Standard

1.Specification:

Rated Voltage (V)	Noninductive Load (A)					Inductive Load (A)
	Resistance Load		Lamp Load			Inductive Load		Motor Load
	NC	NO	NC	NO		NC	NO	NC	NO
125VAC 250VAC 480VAC	10 10 3		3 2.5 1.5		1.5 1.25 0.75	10 10 2.5		5 3 1.5	2.5 1.5 0.75
8VDC 14VDC 30VDC 125VDC 250VDC	10 10 8 0.5 0.25		3 3 3 0.4 0.2		1.5 1.5 1.5 0.4 0.2	6 6 6 0.05 0.03		6 6 5 0.05 0.03	5 5 2.5 0.05 0.03

NOTES:
1. Inductive load has a power factor of 0.4 min.(AC) and a time constant of 7 msec.max.(DC).
2. Lamp load has an inrush current of 10 times the steady-state current,while motor load has an inrush current of 6 times the steady-state current.

Operation speed	0.5mm-50cm/sec
Operating frequency	Mechanical: 120 operations/min.
Operating frequency	Electrical: 30 operations/min.
Contact resistance	15mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
	1500VAC, 50/60 HZ for 1 minute between currentcarrying and non-current-carrying metal parts
	1500VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration frequency	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100G'S) Malfunction: 300m/Sec2 (about 30G'S)
Ambient temperature	-5°C to +65°C
Humidity	<95% RH
Life	Mechanical: 10,000,000 operations above (under rated OT) Electrical: 500,000 operations above
Weight	About 60g
Degree of protection	IP65

Models	TZ-7100	TZ-7110	TZ-7310	TZ-7311	TZ-7312	TZ-7120
OF Max.	600g	600g	600g	600g	600g	150g
RF Min.	100g	100g	100g	100g	100g	40g
PT Max.	2.0mm	2.0mm	2.0mm	2.0mm	2.0mm	13.5mm
OT Min.	0.8mm	5.0mm	6.0mm	6.0mm	6.0mm	4.0mm
MD Max.	0.8mm	0.8mm	0.8mm	0.8mm	0.8mm	3.2mm
OP	30.5 ±0.8mm	44 ±1.2mm	21.8 ±1.2mm	33.3 ±1.2mm	33.3 ±1.2mm	25 ±1mm
FP						35mm

Models	TZ-7140	TZ-7121	TZ-7141	TZ-7124	TZ-7144	TZ-7166
OF Max.	220g	180g	240g	200g	280g	120g
RF Min.	60g	50g	80g	60g	100g
PT Max.	8.5mm	11.0mm	6.5mm	11mm	6.5mm	250mm
OT Min.	2.5mm	3.0mm	2.0mm	3.0mm	2.0mm	11mm
MD Max.	2.0mm	2.4mm	1.5mm	2.4mm	1.5mm
OP	25 ±1mm	40 ±1mm	40 ±1mm	50 ±1.2mm	50 ±1.2mm
FP	32mm		46mm		56mm

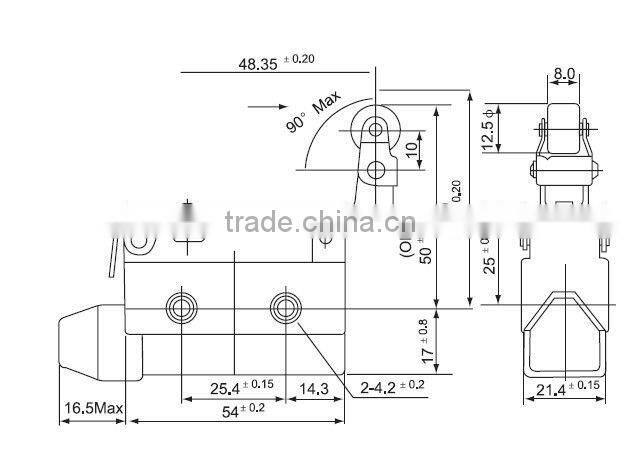

TZ-7100 size

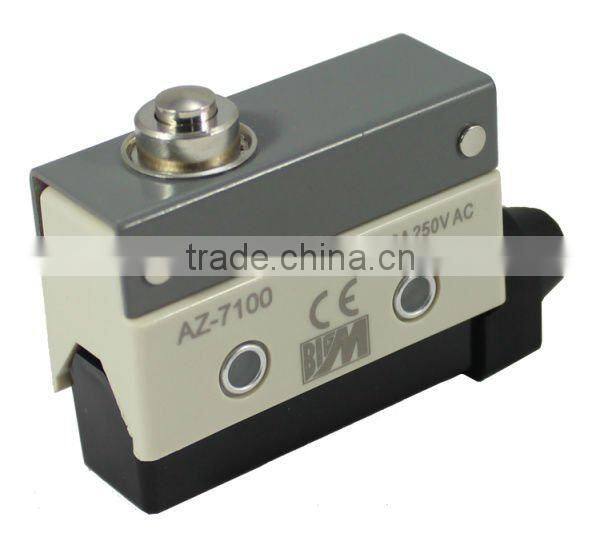

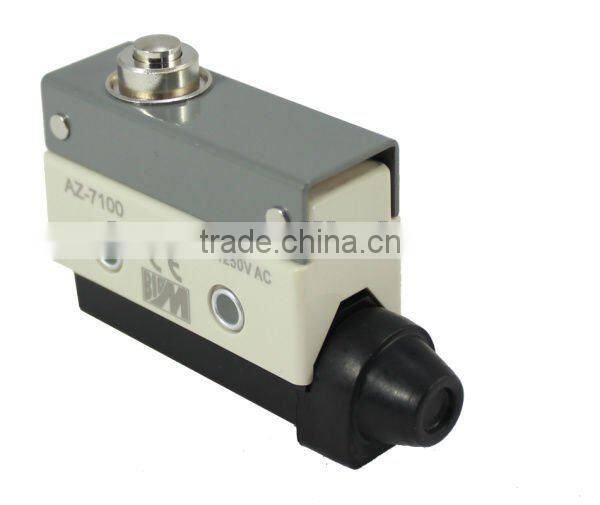

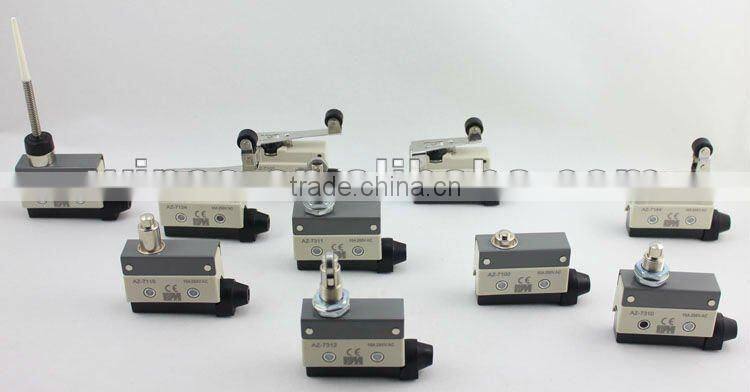

2.Product photo
