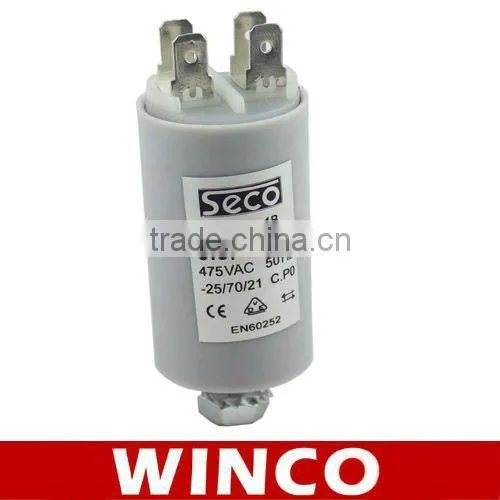

Home > Electrical & Electronics > Passive Components > Capacitor > SECO CBB60 Motor Running Capacitor
US$ 0.7 - 2
MOQ: 500 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
SECO
Model Number:
CBB60
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Zhejiang, China
Brand Name
SECO
Model Number
CBB60
Type
Polypropylene Film Capacitor
Application
AC / Motor
Package Type
Through Hole
Capacitance
2.5uf-100uf
Rated Voltage
AC250-450V
Operating Temperature
-40℃ to +70℃
Specifications
1.Speicial use for Russia,Ukraine,The Republic of Belarus2.Capacity:2.5uf-100uf
3.Rated Voltage:AC250-450V
1.Specification:
Run Capacitor is small, with long lifespan and good self-healing ability. It is widely used as the start-up and running capacitor, especially for micro water pumps, cleaning machines, washing machines, and single-phase water pump motors.
2.Technical features:
1) Climate type: 40/70/21
2) Capacity volume variance: &Plusmn;5%, &Plusmn;10%
3) Testing voltage: between leading-out 1.75UR, 10S no breakdown
4) Between leading-out end and shell: 2,200V AC, 10S no breakdown
5) Insulation resistance: between leading-out ends: ≥3,000Mn.UF
6) Between leading-out end and shell: ≥1,000Mn
7) Loss tangent: ≤0.002 (50Hz)
8) Specifications: can be supplied according to customers' special needs
3.Dimension

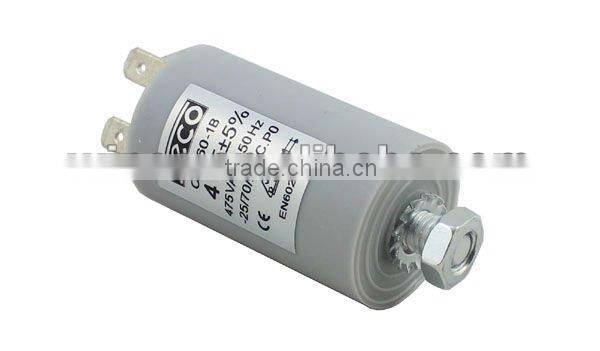

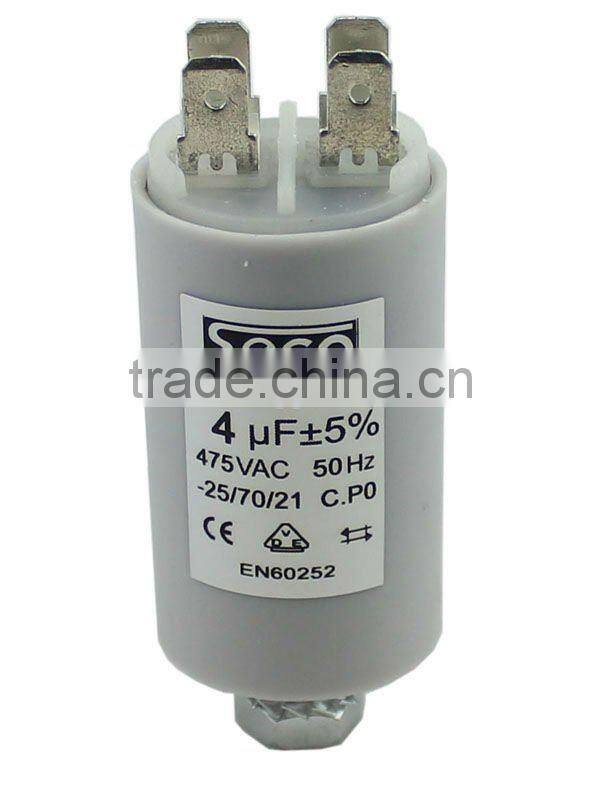

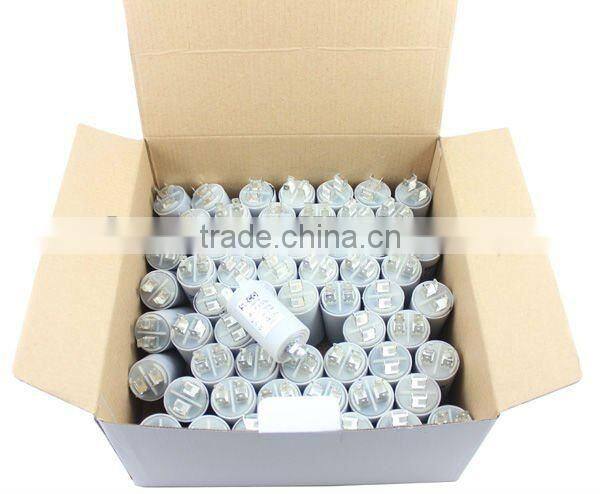

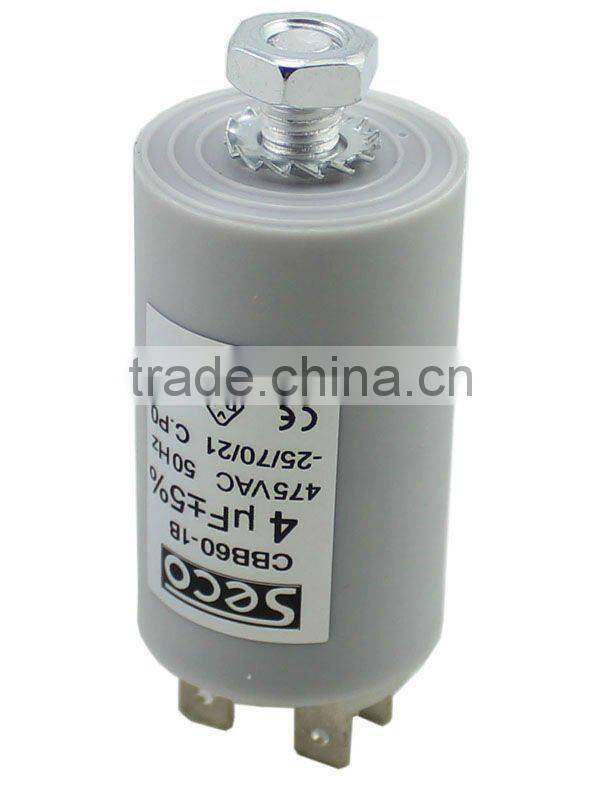

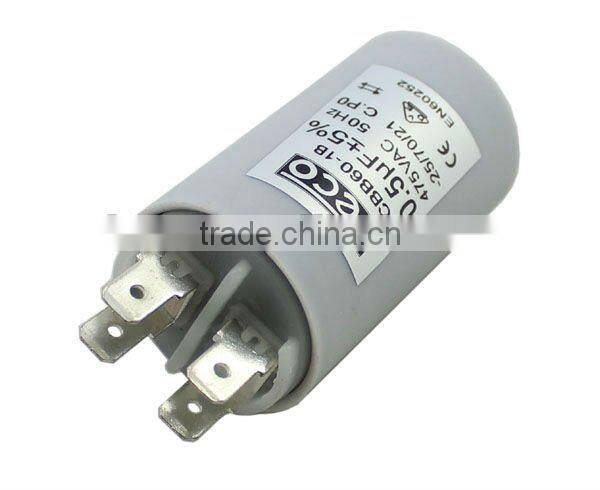

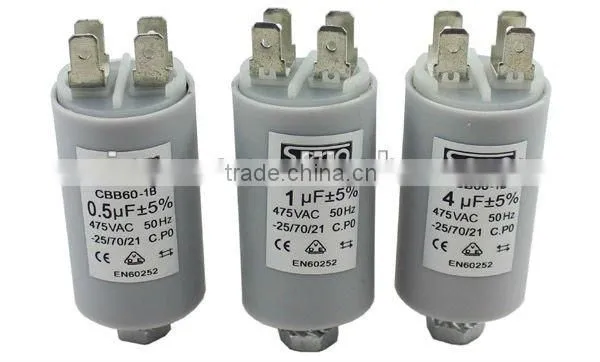

4.Photoes
