Russian Standard LE1 Magnetic Starter
US$ 7.5 - 8.5
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM/KUMANICIAL
Model Number:
LE1-D12
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo or shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Russian Standard LE1 Magnetic Motor StarterUS$ 7.5 - 8.5MOQ: 100 Pieces -
SECO CBB60 Motor Running CapacitorUS$ 0.7 - 2MOQ: 500 Pieces
-
CBB60 CapacitorUS$ 0.7 - 2MOQ: 500 Pieces
-
Russian Standard BK200 Limit SwitchUS$ 2.5 - 4.5MOQ: 100 Pieces
-
Russian Standard BK300 Limit SwitchUS$ 2.5 - 4.5MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
BIGM/KUMANICIAL
Model Number
LE1-D12
Electricity Type
AC
Number of Pole
1
Phase
1
Main Circuit Rating Voltage
Other, up to 550V
Main Circuit Rating Current
Other, up to 95A
Specifications
1.Speicial use for Russia,Ukraine,The Republic of Belarus2.Rated voltage:up to 550V
3.Rated current:up to 95A
1.Application
LE1 series magnetic starter is mainly applied to circuit of AC 50 or 60Hz,voltage up to 550Vfor far distance making and breaking circuit and frequently starting and controlling motor. It hasthe features of small volume, light weight, low power consumption, high efficiency, safe andreliable performance. It complies to IEC947-4-1.
2.Specification
| Type | Rated | Maximum Power AC3 duty (KW) | SuitableThermal Relay(A) | |||||
| Current(A) | 220V | 380V | 415V | 440V | 500V | 660V | ||
| 230V | 400V | 690V | ||||||
| LE1-9 | 9 | 2.2 | 4 | 4 | 4 | 5.5 | 5.5 | LR2 D1312 |
| LR2 D1314 | ||||||||
| LE1-12 | 12 | 3 | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | LR2 D1316 |
| LE1-18 | 18 | 4 | 7.5 | 9 | 9 | 10 | 10 | LR2 D1321 |
| LE1-25 | 25 | 5.5 | 11 | 11 | 11 | 15 | 15 | LR2 D1322 |
| LR2 D2353 | ||||||||
| LE1-32 | 32 | 7.5 | 15 | 15 | 15 | 18.5 | 18.5 | LR2 D2355 |
| LE1-40 | 40 | 11 | 18.5 | 22 | 22 | 22 | 30 | LR2 D3353 |
| LR2 D3355 | ||||||||
| LE1-50 | 50 | 15 | 22 | 25 | 30 | 30 | 33 | LR2 D3357 |
| LR2 D3359 | ||||||||
| LE1-65 | 65 | 18.5 | 30 | 37 | 37 | 37 | 37 | LR2 D3361 |
| LE1-80 | 80 | 22 | 37 | 45 | 45 | 55 | 45 | LR2 D3363 |
| LR2 D3365 | ||||||||
| LE1-95 | 95 | 25 | 45 | 45 | 45 | 55 | 45 | LR2 D3365 |

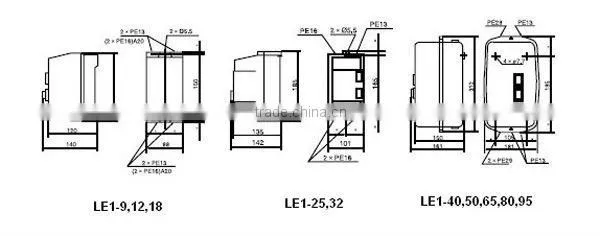

3.Dimension

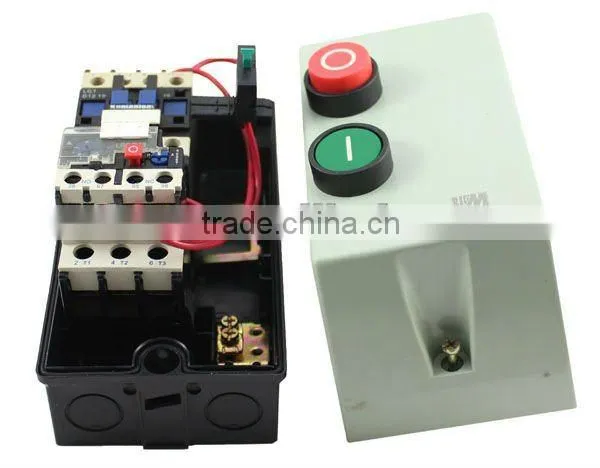

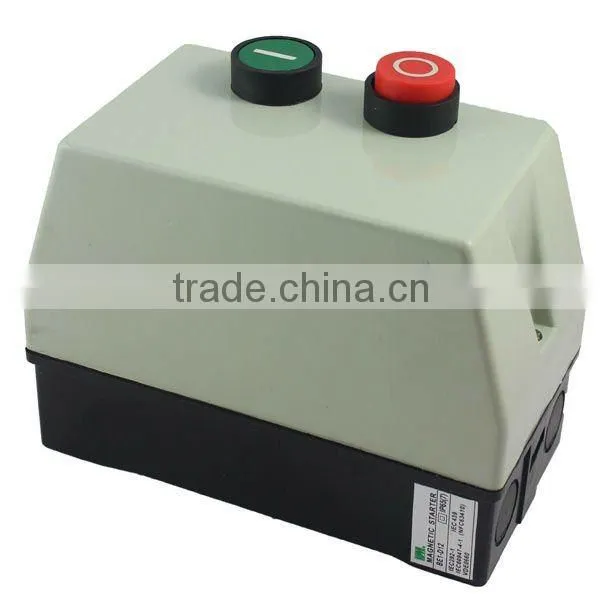

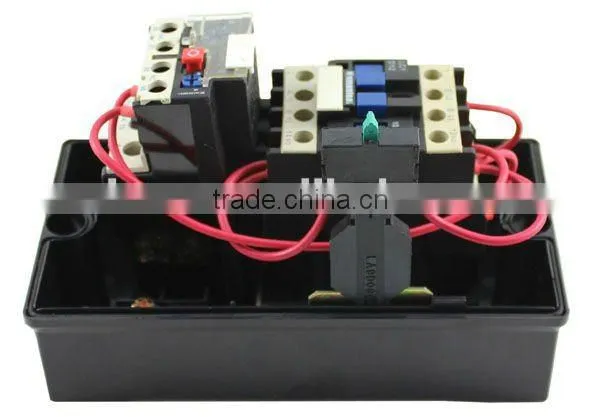

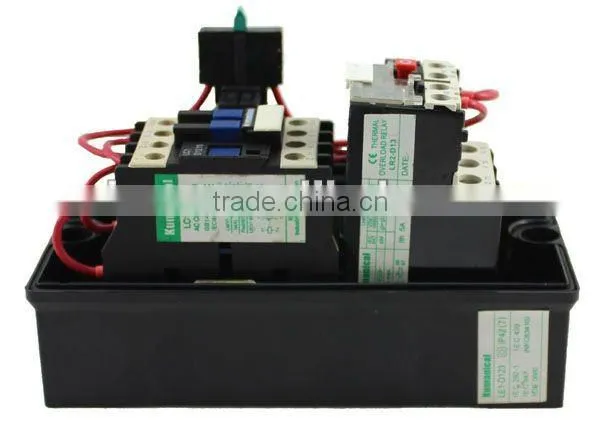

4.Photoes
