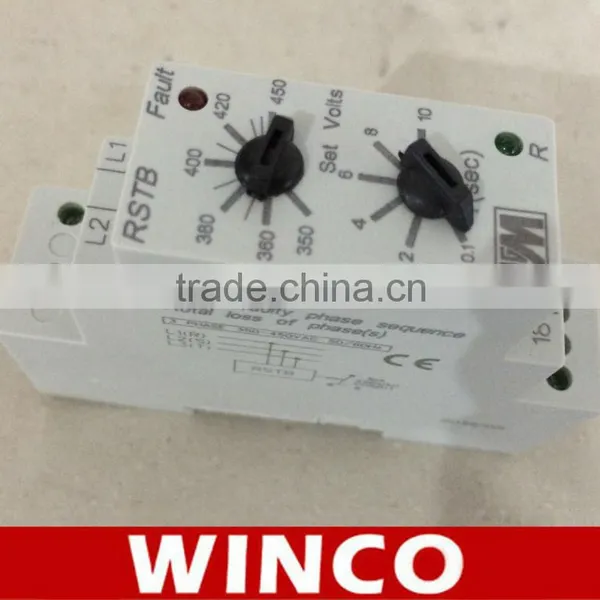

Phase Sequence and Phase Failure Relay

Phase Sequence and Phase Failure Relay thumbnail-1
Phase Sequence and Phase Failure Relay photo-1
US$ 3 - 10 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
RSTB RSTC
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number RSTB RSTC
Theory Time Relay
Usage Protective
Size Miniature
Protect Feature Sealed
Contact Load Low Power

Specifications

1.three phase unbalance protection
2.Under voltage,over voltage and Phase failure protection
3.Time delay from 0.1s to 10s

3 phase supply control relay

(Phase sequence relay) is designed to monitor 3 phase supplies and to protect motors and other loads against the faults listed below.

· Monitoring of rotational direction of phases

· Detection of complete failure of one or more of the phases

· Undervoltage detection (-10%)

· Overvoltage detection (+10%)

· Detection of phase asymmetry (imbalance) (±10%)

The relay operates if any of the conditions occours.



The relay releases if any of the conditions fails.



There is a Time Delay between the relay action and the condition occours (except rotational direction of phases error ) to avoid very short interruptions or other momentary failures.



A selector switch allows selection of an adjustable time delay from 0.1s to 10s.



When the supply returns towards its rated value, the relay is re-energised according to the hysteresis value (5%).







Phase Sequence and Phase Failure Relay


Phase Sequence and Phase Failure RelayPhase Sequence and Phase Failure RelayPhase Sequence and Phase Failure Relay

Phase Sequence and Phase Failure Relay
