Home > Products > Relay & Timer > universal relay MK2P
universal relay MK2P
US$ 1.37 - 3.5
/ Piece
50 Pieces(Min. Order)
- shanghai/ningbo
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | BIGM | |
| Model Number | MK2P | Theory | Electromagnetic Relay | |
| Usage | General Purpose | Size | Miniature | |
| Protect Feature | Sealed | Contact Load | Low Power |
Product Description

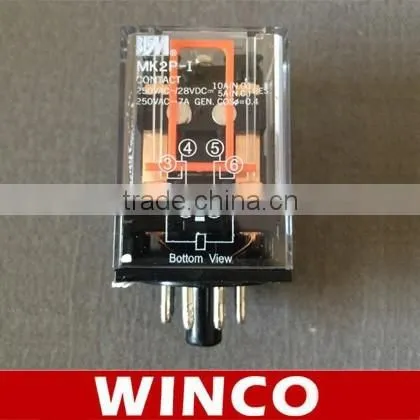

MK2PL-1 AC24V Miniature Power Relay for General Purpose
(OEM is available.)
Specifications
| CLASSIFICATION | MINIATURE POWER RELAY SERIES | ||
| MODEL | MK2P-1, -S, -N | ||
| DIMESIONS(mm) | 34.5*34.5*52 | ||
| CONTACT FORM | 2Z | ||
| CONTACT CAPACITY | 10A 250VAC, DC 28V | ||
| COIL VOLTAGE | DC | 6-220V | |
| AC | 6-380V | ||
| COIL POWER | DC 1.3W, AC 2.4VA | ||
| PICK-UP | 80% max | ||
| DROP-OUT | AC 30% min, DC 15% min | ||
| CONTACT RESISTANCE | ≤50mΩ | ||
| INSULATION TESISTANCE | ≥100mΩ | ||
| LIFE | ELECTRICAL | 10 5 times | |
| MECHANICAL | 10 7 times | ||
| DIELECTRIC STRENGTH | BETWEEN OPEN CONTACTS | AC 1000V 50/60Hz/min | |
| BETWIN COIL&CONTACT | AC 1500V 50/60Hz/min | ||
| MOUNTING FORM | Socket | ||
| OPERATING TEMPERATURE | -40ºC-+55ºC | ||
| WEIGHT | About 85g | ||
| LIKE PRODUCTS | H, K FRM5 | ||
| FITTED SOCKET | PF083A, PF083A-E, US-08 | ||
| REMARKS | With lamp:-N, with bottom:-S | ||
