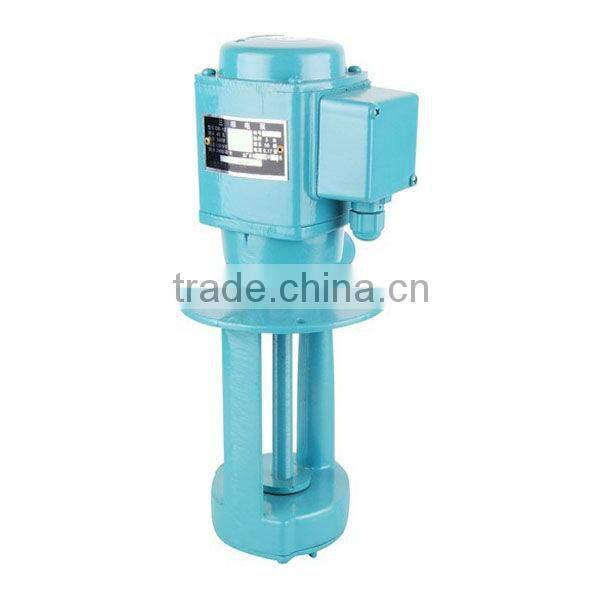

Three Phase Self-Cooling Pump for Cooling Water
- ningbo or shanghai
- Money Gram Credit Card
You May Like
-
Three Phase Cooling Machine Pump for Milling Machine
-
Three Phase Electric Pump for Milling Machine
-
Three Phase Coolant Pump for Milling Machine
-
Three Phase Oil Cooling Pump for Machine Tools
-
DB Machine Cooling Oil Pump for Machine Tools Milling Machine Grinding Machines
-
380V 3 Phase DB Oil Pump for Machine Tools Milling Machine Grinding Machines
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Kumanical | |
| Model Number | DB AB AOB JCB DOB | Theory | Centrifugal Pump | |
| Structure | Single-stage Pump | Usage | Other, electric | |
| Power | Electric | Standard or Nonstandard | Standard | |
| Pressure | Low Pressure | Application | Other, Machine cooling |
Product Description
Specifications
1.Rated Voltage:380V2.Rated Power:40-500W
3.Max. head:3.3-5.5M
1.Introduction
The product have reasonable design, simple structure, reliable performance, low power consumption, long life, good efficiency and no special requirements for the media.It is applicable to different kinds of of machine tools' requirement such as cooling, washing, enhance the cooling medium.
1.MW series electric pump which is used for machine tool refers as Standard 5879 and is an update alternative product. It is improved by design of pump YSB, JCB, AYB, AOB, AB and so on.
2.The product retains the versatility and interchangeability of similar products and its main technical parameters are improved significantly.
3. The power selection and structural design of the product is reasonable. The structural design of the motor is cooled by wind so that the temperature-rising is significantly lower than which is produced by ordinary pump. And it will never appear that the motor was damaged by the coolant getting in.
4.The product retains the design of adjustable height of tray, at the same time, it increases the design of fixed tray. It is convenient for the user who needn't tune the pump into water and increases the choices of the pump, while, the weight and appearance of the product is improved well.We also can produce 50HZ or 60HZ (single-phase voltage 220-240V) 380-420V pump.
2.Specification

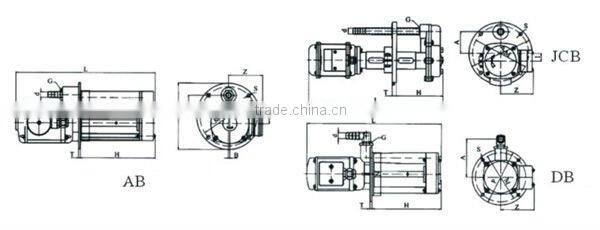

3.Mounting drawings

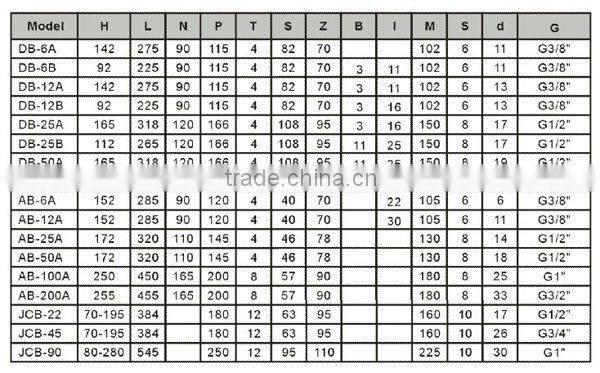

4.Mounting demension

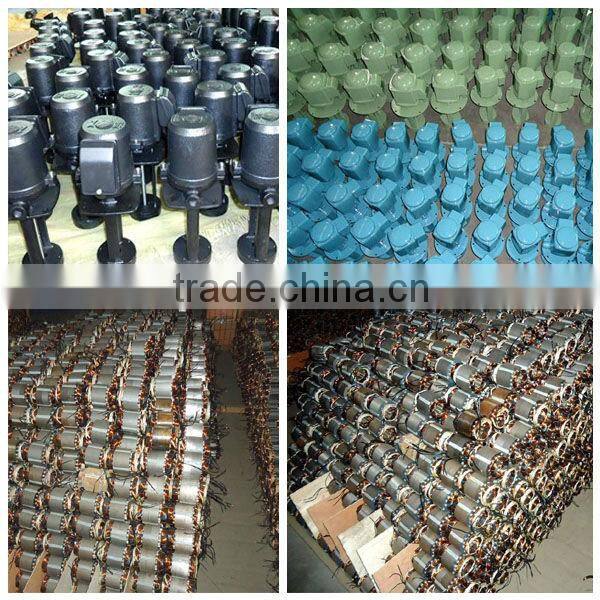

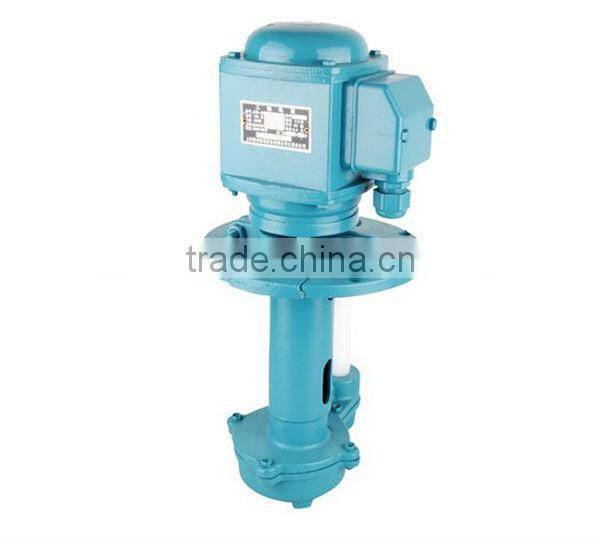

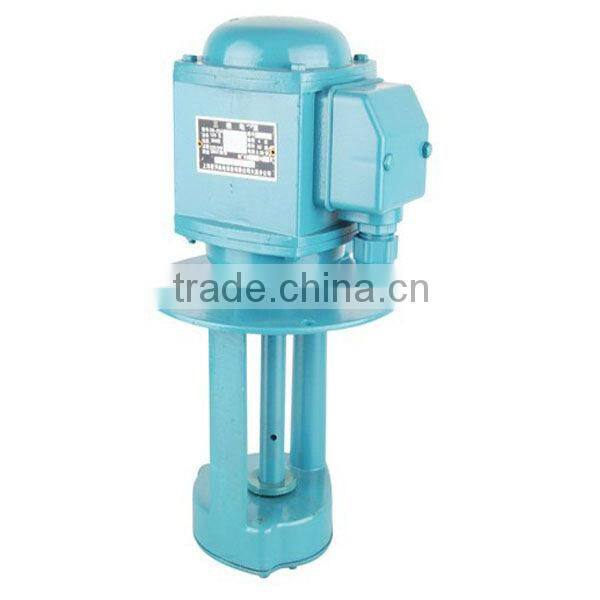

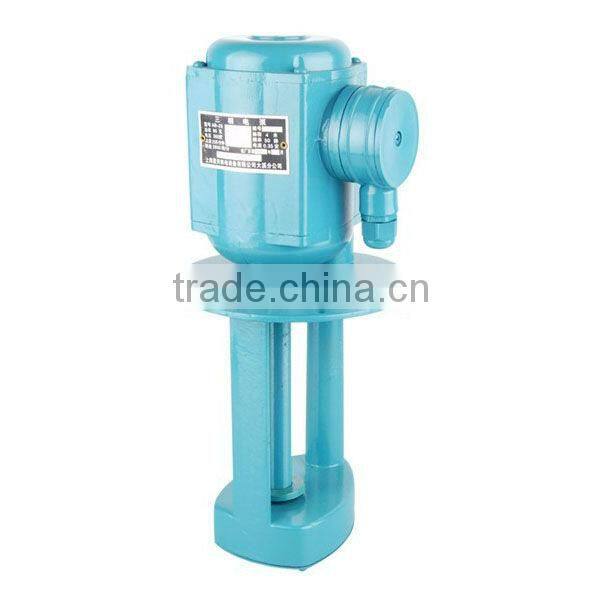

5.Photos
