Home > Products > Pneumatic Cylinders > Hot sale FESTO Standard DNC Pneumatic acutator
Hot sale FESTO Standard DNC Pneumatic acutator
- 10000 Piece / Pieces per Month
- Ningbo or shanghai
- T/T Credit Card
Product Details
Standard or Nonstandard: | Standard | Structure: | Piston Cylinder | Power: | Pneumatic |
Body Material: | Aluminum | Maximum Stroke: | 2000mm | Shaft Diameter: | 32 40 50 63 80 100 125 |
Place of Origin: | Zhejiang, China | Model Number: | DNC Series | Brand Name: | AutoAir |
Product Description
DNC Pneumatic Cylinder
1.Introduce
We’re professional manufacturer of pneumatic components, such as Solenoid Valve, Cylinder, FRL unit, fittings and other hydraulic valve.
Our company also can provide other pneumatic cylinders as below,
1. ISO Standard cylinder: DNC(ISO 6431&VDMA24562),DNG(ISO 15552),SI(ISO 6431),MA(ISO 6432)
2.Standard cylinder:SC/SU,MB,CA1
3.Mini cylinder:MA,MAL,CJ2,CM2,CJP Needle cylinder
4.Double-shaft cylinder:TN,CXS
5.Free installation cylinder:CU
6.Slide bearing cylinder:STM
7.Three-shaft cylinder:MGP
8.Stopper cylinder:RSQ
9.ADVU, SDA,CQ2B compact cylinder
10.Rotary cylinder:MSQ
11.Rodless cylinder:CY1
12.Air gripper:MHC Series Pneumatic Parrallel Gripper, MHC point type Gripper
Parallel Style Wide Opening Air Gripper

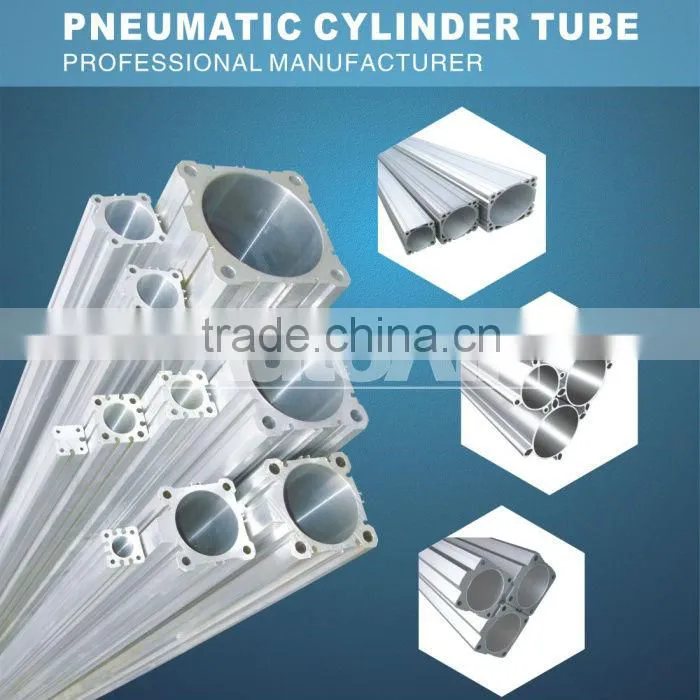

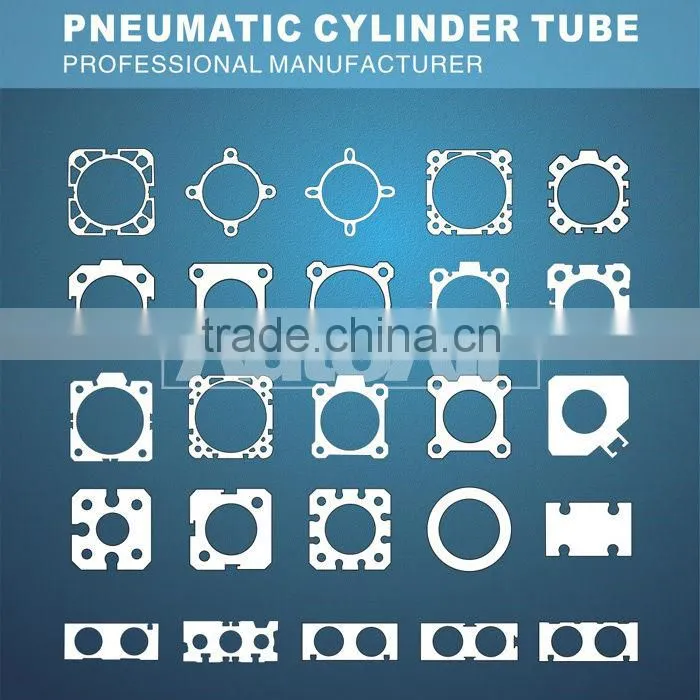

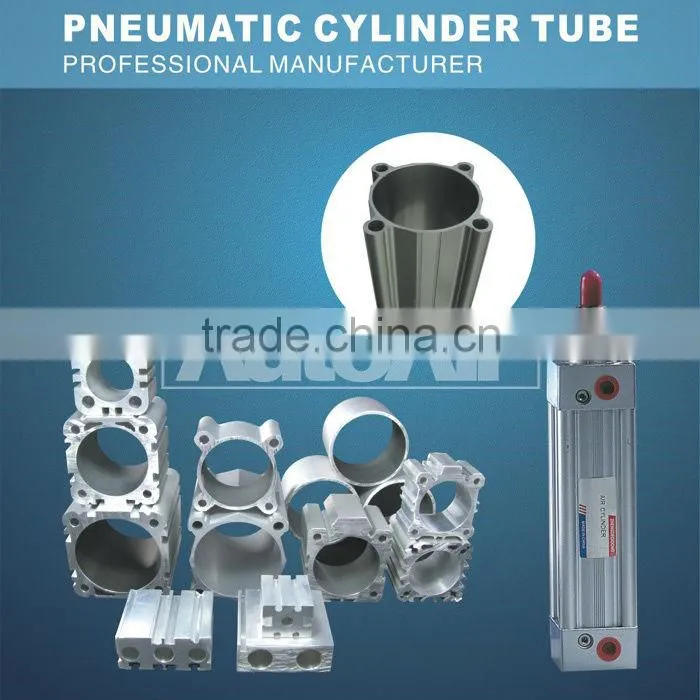

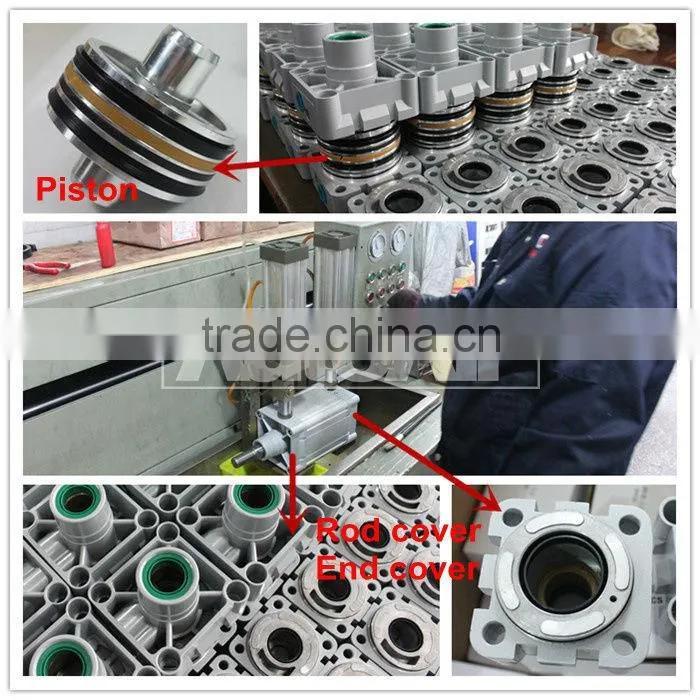

2.Processing
The manufacturing process include : die-casting, aluminum profile precision draw, machining, castings shot blasting, air tightness assurance through the impregnation by vacuum pressure process and passivation treatment, aluminum profile surface oxidation treatment, assembling and testing, for better quality control.
The cylinder covers, piston and piston rods are CNC machined, use high quality seals, to ensure the cylinders work stably and safely.

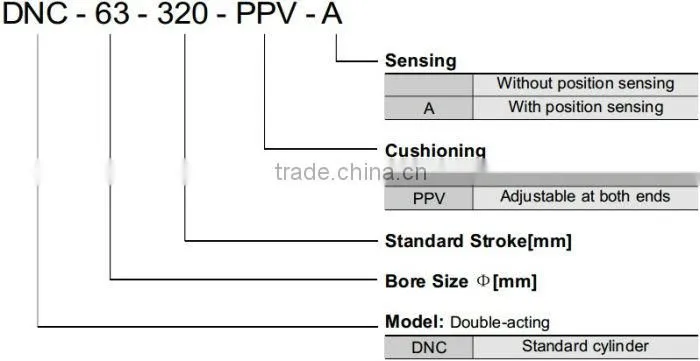

3.Ordering Code
4.Specification
Bore size (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
Fluid | Air | ||||||
Action | Double acting, Single/Double rod | ||||||
Minimum operating pressure | 0.06 MPa | ||||||
Maximum operating pressure | 1.2 MPa | 1.0 MPa | |||||
Proof pressure | 1.5 MPa | ||||||
Ambient and fluid temperature | -20 to 80°C (No freezing) | ||||||
Cushion | Adjustable air cushion at both ends | ||||||
Lubrication | Non-lube | ||||||
Piston rod dia. | 12 mm | 16 mm | 20 mm | 25 mm | 32 mm | ||
Piston rod thread | M10x1.25 | M12x1.25 | M16x1.5 | M20x1.5 | M27x2.0 | ||
Port size | 1/8 | 1/4 | 3/8 | 1/2 |

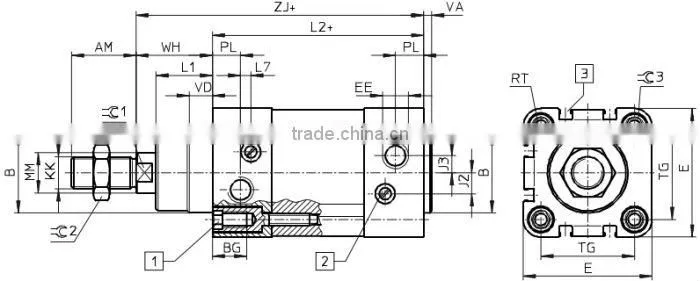

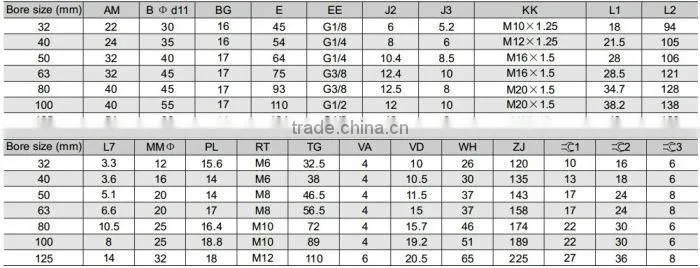

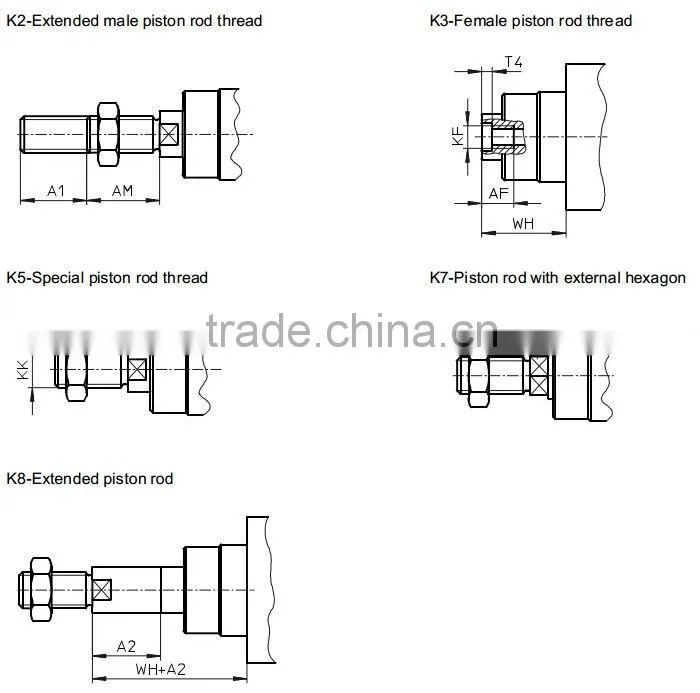

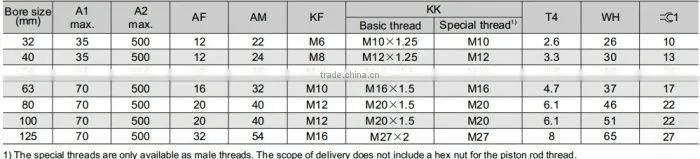

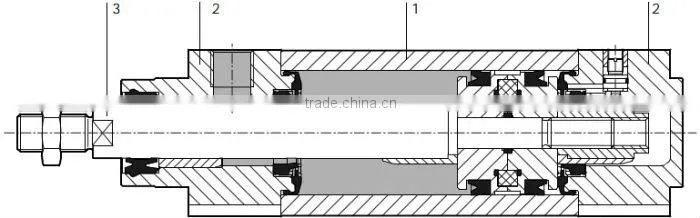

5.Drawing and Sheet

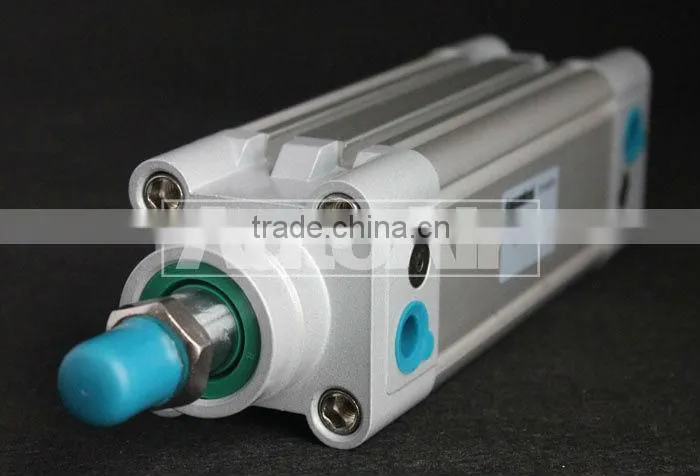

6.Photos
7.Cylinder Accessories
8.Relevant Model
DNC32*25 DNC40*25 DNC50*25 DNC63*25 DNC80*25
DNC32*50 DNC40*50 DNC50*50 DNC63*50 DNC80*50 DNC100*50
DNC32*75 DNC40*75 DNC50*75 DNC63*75 DNC80*75 DNC100*75
DNC32*100 DNC40*100 DNC50*100 DNC63*100 DNC80*100 DNC100*100
DNC32*125 DNC40*125 DNC50*125 DNC63*125 DNC80*125 DNC100*125
DNC32*150 DNC40*150 DNC50*150 DNC63*150 DNC80*150 DNC100*150
DNC32*175 DNC40*175 DNC50*175 DNC63*175 DNC80*175 DNC100*175
DNC32*200 DNC40*200 DNC50*200 DNC63*200 DNC80*200 DNC100*200
DNC32*250 DNC40*250 DNC50*250 DNC63*250 DNC80*250 DNC100*250
DNC32*300 DNC40*300 DNC50*300 DNC63*300 DNC80*300 DNC100*300
DNC32*350 DNC40*350 DNC50*350 DNC63*350 DNC80*350 DNC100*350
DNC32*400 DNC40*400 DNC50*400 DNC63*400 DNC80*400 DNC100*400
DNC32*450 DNC40*450 DNC50*450 DNC63*450 DNC80*450 DNC100*450
DNC32*500 DNC40*500 DNC50*500 DNC63*500 DNC80*500 DNC100*500
DNC32*550 DNC40*550 DNC50*550 DNC63*550 DNC80*550 DNC100*550
DNC32*600 DNC40*600 DNC50*600 DNC63*600 DNC80*600 DNC100*600
DNC32*650 DNC40*650 DNC50*650 DNC63*650 DNC80*650 DNC100*650
DNC32*700 DNC40*700 DNC50*700 DNC63*700 DNC80*700 DNC100*700
DNC32*750 DNC40*750 DNC50*750 DNC63*750 DNC80*750 DNC100*750
DNC32*800 DNC40*800 DNC50*800 DNC63*800 DNC80*800 DNC100*800
DNC32*850 DNC40*850 DNC50*850 DNC63*850 DNC80*850 DNC100*850
DNC32*900 DNC40*900 DNC50*900 DNC63*900 DNC80*900 DNC100*900
DNC32*950 DNC40*950 DNC50*950 DNC63*950 DNC80*950 DNC100*950
DNC32*1000 DNC40*1000 DNC50*1000 DNC63*1000 DNC80*1000 DNC100*1000
9.Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
10.Payment and Shipment
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
After we shipped your goods, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
