Specifications
FVBC Iso6431 Pneumatic Cylinder With Magnetic1.ISO6431 / VDMA24562 Standard
2.Standard cylinder
FVBC Iso6431 Pneumatic Cylinder With Magnetic
1.Features
Festo DNC Series Euro Profile Cylinder
1.DNC series standard cylinder are producing conform to ISO 15552 ( ISO 6431, DIN ISO 6431, VDMA 24 562, NF E 49 003.1 and UNI 10290).
2.Very wide used in the automation field, especial in Europe market.
3.Normally bore size: 32mm, 40mm, 50mm, 63mm, 80mm, 100mm, 125mm.
4.With the same FESTO DNC appearance, available built-in magnet, no protruding proximity sensors thanks to profile slots.
5.With self-lub bearing, the piston rod is lubrication free. And the adjustable air cushion keep the cylinder operating soomthly, safely and quietly.
6.Easier and various mounting via female threads or mounting accessories.
7.Supply cylinder kits, aluminium barrel, piston for customer assemble cylinder locally.
2.Specifications
DNC Series ISO6431/VDMA24562 standard cylinder | ||||||||
Bore size(mm) |
32 |
40 |
50 |
63 |
80 |
100 |
125 |
|
Action |
Double acting,single/double rod |
|||||||
Fluid |
Filtered compressed air |
|||||||
Proof pressure |
1.5Mpa |
|||||||
Operating pressure range |
0.05~1.0Mpa |
|||||||
Ambient and fluid temperature |
-20~80ºC(No freezing) |
|||||||
Port size |
G1/8 |
G1/4 |
G1/4 |
G3/8 |
G3/8 |
G1/2 |
G1/2 |
|

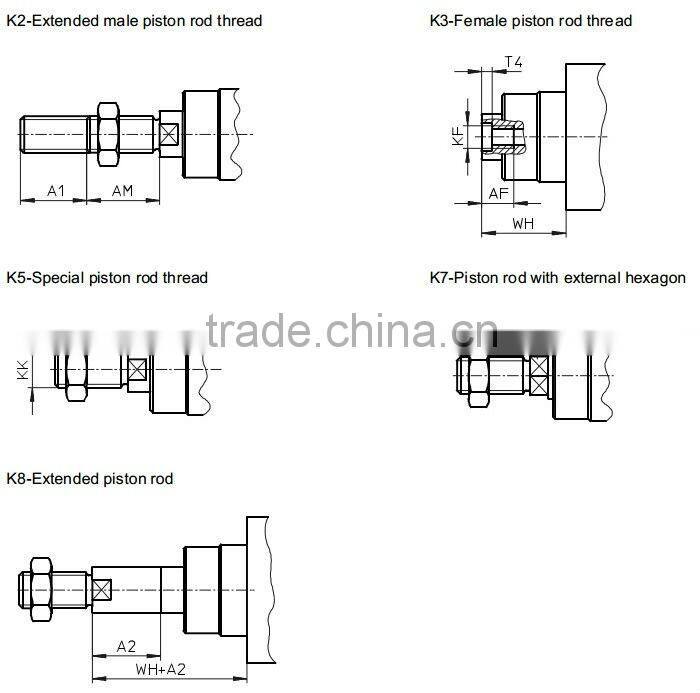

Piston rod thread |
Basic type |
M10X1.25 |
M12X1.25 |
M16X1.5 |
M20X1.5 |
M27X2.0 |
||
K3 |
M6 |
M8 |
M10 |
M12 |
M16 |
|||
K5 |
M10 |
M12 |
M16 |
M20 |
M27 |
|||
Cushion |
Adjustable air cushion at both ends |
|||||||

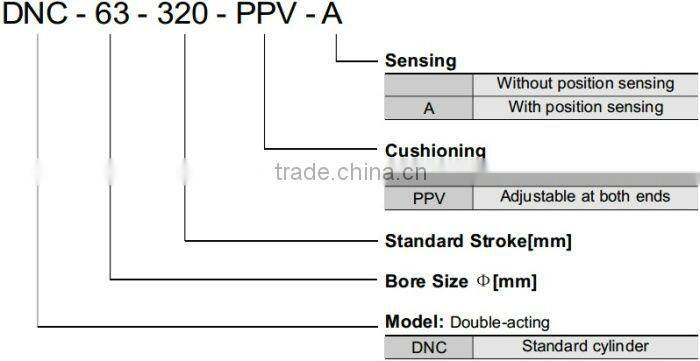

3.Ordering Code

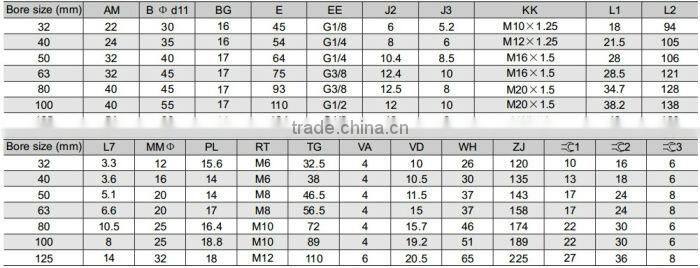

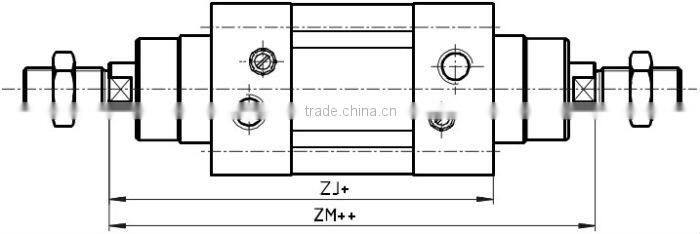

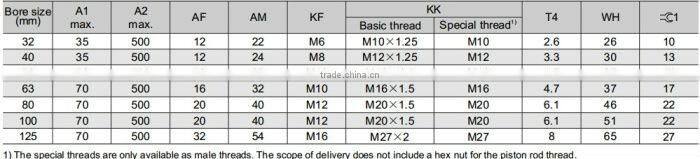

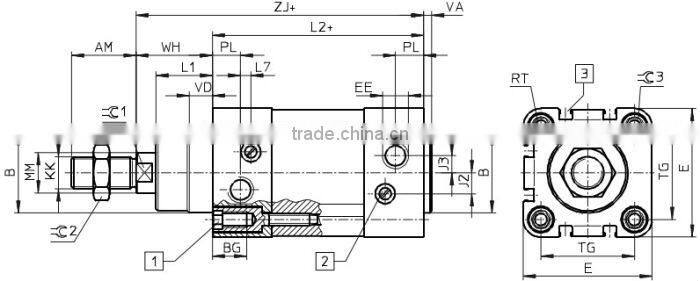

4.Overall Dimensions

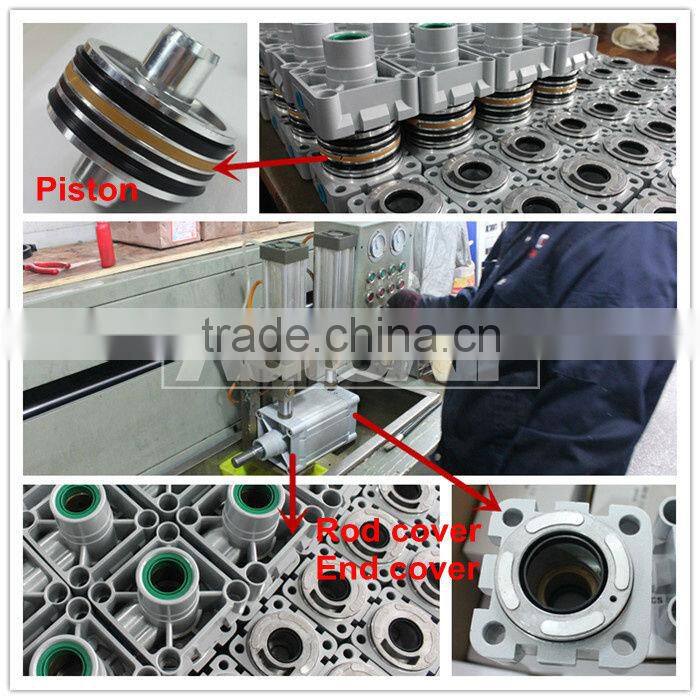

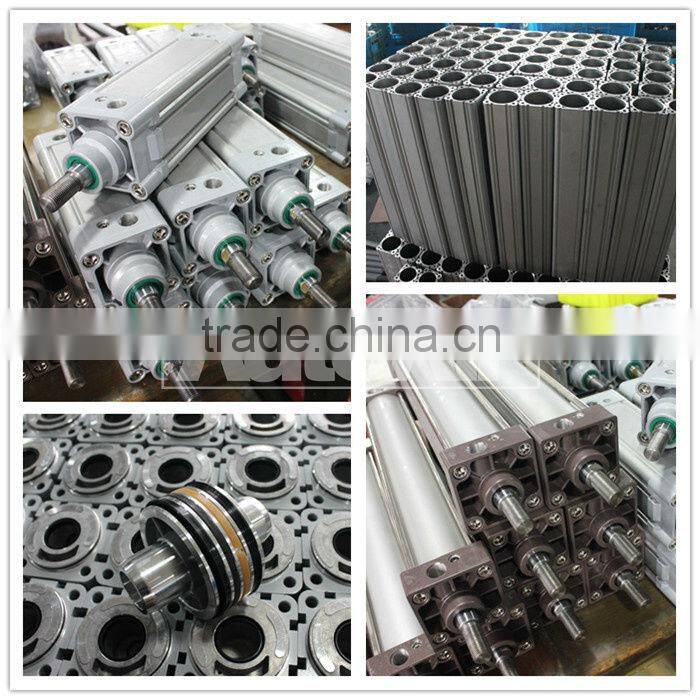

5.Detail Show
6.Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
7.Payment and Shipment
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
After we shipped your goods, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
8.Other Products
Our company also can provide other pneumatic cylinders as below,
1. ISO Standard cylinder: DNC(ISO 6431&VDMA24562),DNG(ISO 15552),SI(ISO 6431),MA(ISO 6432)
2.Standard cylinder:SC/SU,MB,CA1
3.Mini cylinder:MA,MAL,CJ2,CM2,CJP Needle cylinder
4.Double-shaft cylinder:TN,CXS
5.Free installation cylinder:CU
6.Slide bearing cylinder:STM
7.Three-shaft cylinder:MGP
8.Stopper cylinder:RSQ
9.ADVU, SDA,CQ2B compact cylinder
10.Rotary cylinder:MSQ
11.Rodless cylinder:CY1
12.Air gripper:MHC Series Pneumatic Parrallel Gripper, MHC point type Gripper
