Features
MA Series Telescopic Cylinder China ISO6432
1.Corrosion-resistant: the stainless steel material barrel with a great corrosion and resistance and the special surface treatment could guarantee a durable working life
2.Anodized aluminum body for superior wear resistance
3..A choice of stroke length, and a variety of catalogue options
Specifications
Bore Size(mm) |
8 |
10 |
12 |
16 |
20 |
25 |
Working Medium |
Air |
|||||
Motion Pattern |
Double action or single action |
|||||
Ensured Prssure Resisitance |
15.3kgf/cm2 |
|||||
Max.Pressure |
10.2kgf/cm2(1.0MPa) |
|||||
Min Pressure |
0.5kgf/cm2(0.05MPa) 1kgf/cm2(0.1MPa) |
|||||
Ambient Tempeature |
-10-+80oC(Internal Magnetic Installby Tech strap:Type Max:60oC |
|||||
Buffer |
Rubber buffer(Standard),Air Buffer(Option) |
|||||
Piston Speed |
50-750mm/s |
|||||
Kinetic Energy Tolerace |
0.2 |
0.3 |
0.4 |
0.9 |
2.7 |
4 |
Port Size |
M5*8 |
G 1/8" |
||||

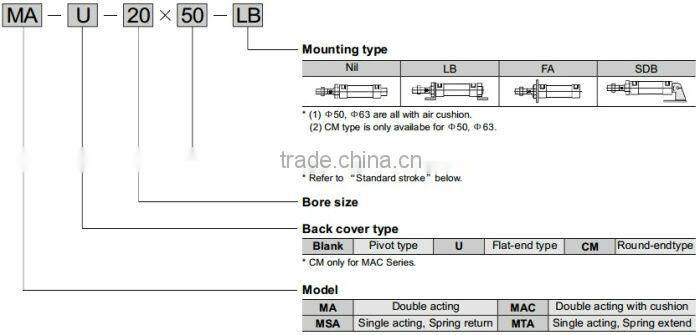

Ordering Code

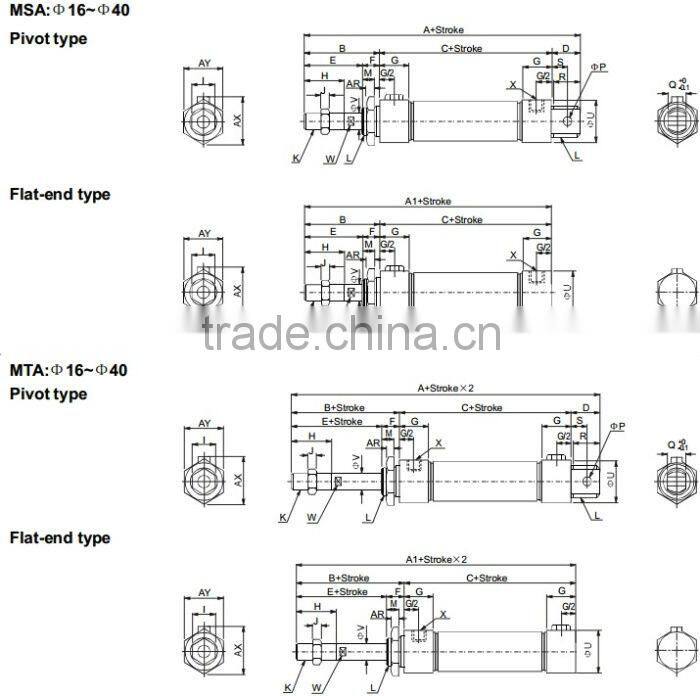

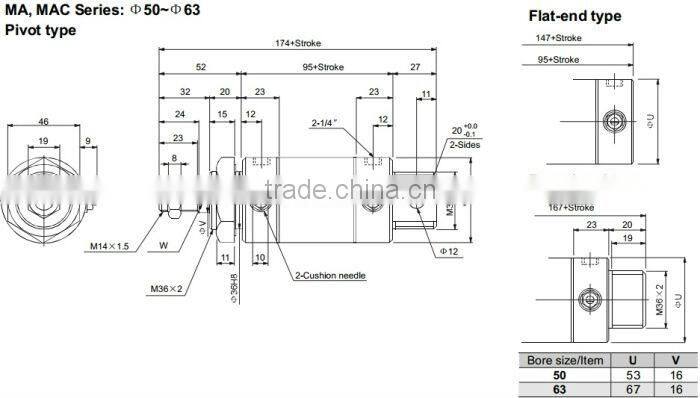

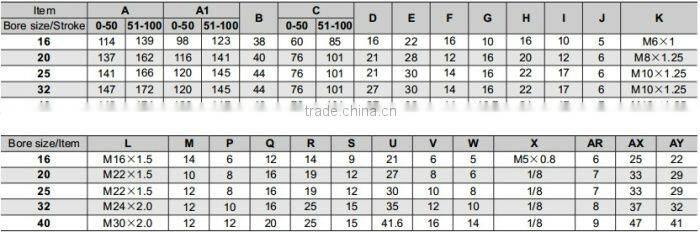

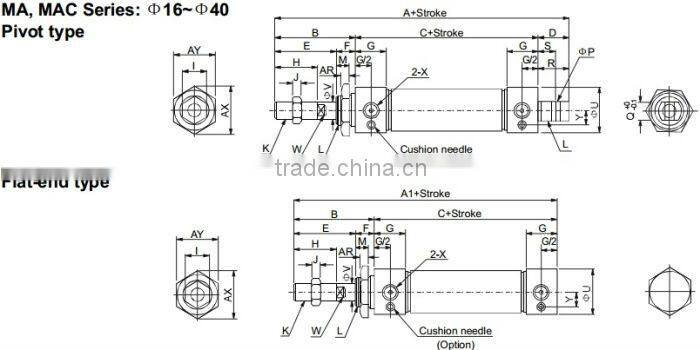

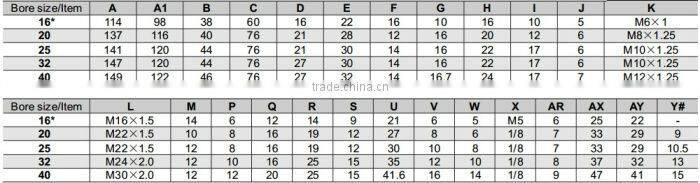

Dimensions

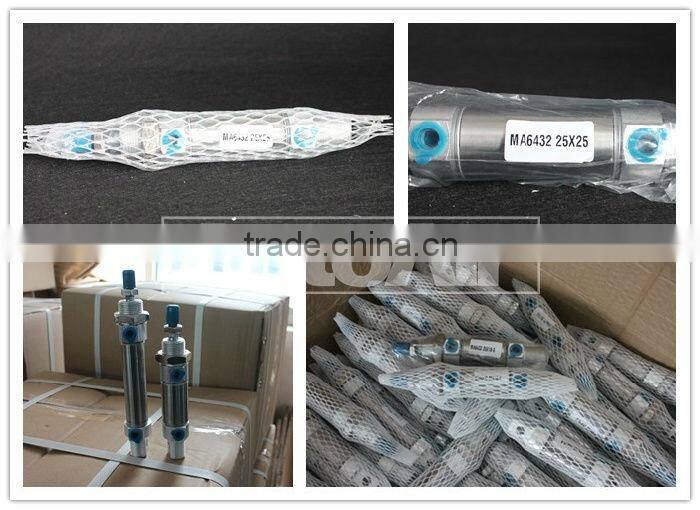

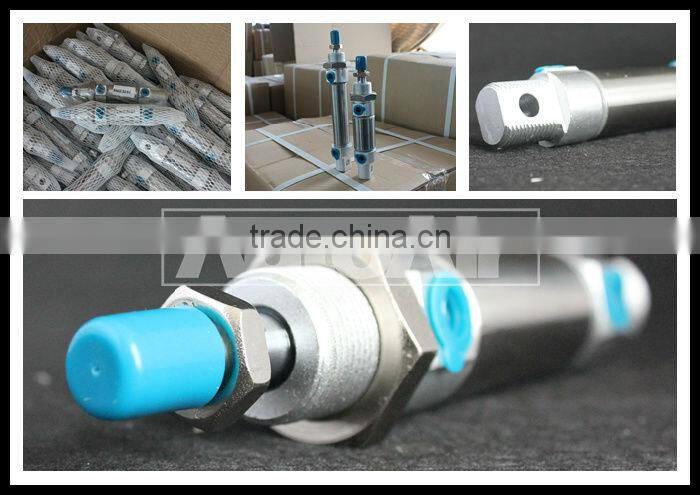

Detail Show
Why choose us
1: Various style for completely series pneumatic products for you to choose
2: High quality with competitive price
3: Sample order & small quantity order is ok
4: Provide free products information.
5. Reliable quality assured and active after-sell service
Payment and Shipment
Payment: T/T, Western Union, 30% deposit and 70% balance before shipping, LC, ;
Shipment: Usually we send the goods by DHL, FedEx, UPS, TNT, or EMS or as you require;
After we shipped your goods, we will send you the tracking number by E-mail.
If you do not receive it within 7 business days after shipping, please contact us.
Note:2: We do our best to ship your order in 2 week after receive your payment,and please allow 4-7 working days for the arrival of your shipment. Thank you !
Standard Model
MA16X25 |
MA16X225 |
MA20X125 |
MA25X25 |
MA25X225 |
MA32X100 |
MA32X300 |
MA40X175 |
MA16X50 |
MA16X250 |
MA20X150 |
MA25X50 |
MA25X250 |
MA32X125 |
MA32X400 |
MA40X200 |
MA16X75 |
MA16X300 |
MA20X175 |
MA25X75 |
MA25X300 |
MA32X150 |
MA40X25 |
MA40X225 |
MA16X100 |
MA16X400 |
MA20X200 |
MA25X100 |
MA25X400 |
MA32X175 |
MA40X50 |
MA40X250 |
MA16X125 |
MA20X25 |
MA20X225 |
MA25X125 |
MA32X25 |
MA32X200 |
MA40X75 |
MA40X300 |
MA16X150 |
MA20X50 |
MA20X250 |
MA25X150 |
MA32X50 |
MA32X225 |
MA40X100 |
MA40X400 |
MA16X175 |
MA20X75 |
MA20X300 |
MA25X175 |
MA32X75 |
MA32X250 |
MA40X125 |
MA40X150 |
MA16X200 |
MA20X100 |
MA20X400 |
MA25X200 |
|
|
|
|
