Power Supply

Power Supply thumbnail-1
Power Supply photo-1
US$ 15 - 99.9 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
seco
Model Number:
SCN-1000-12V,SCN-1000-13.5V,SCN-1000-15V,SCN-1000-24V,SCN-1000-48V
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name seco
Model Number SCN-1000-12V,SCN-1000-13.5V,SCN-1000-15V,SCN-1000-24V,SCN-1000-48V
Output Power Other, >500W
Output Type Single
Input Voltage Other, 90-130/180-260VAC
Output Voltage 12-48V
Output Frequency 47-63Hz
Output Current 0-80A

Specifications

1.Economical models with electrical equipments
2.Output voltage:12-48V
3.Efficency>70%
4.Output current:0-80A

1. Features

1. AC input range selectable by switch

2. Protections: short circuit/ over voltage/ overload/ over temp.

3. Built-in remote ON/OFF control

4. Built-in remote sense function

5. Built-in parellel operation function

6. Can adjust from 20-100% output voltage by external control 1-5VDC

7. Forced air cooling by built-in DC fan

8. 2 years warranty

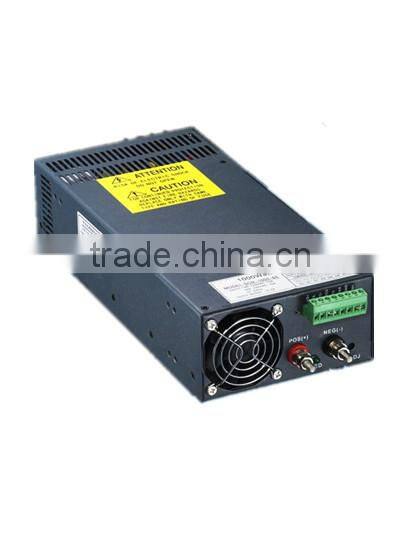

9. SCN-1000-24 Single Output 1000W Switching Power Supply



2. Specification

Model                                Output Tolerance Voltage Ripple and Noise Efficiency
SCN-1000-12V 12V, 0-80A ± 1% 240mvp-p 84%
SCN-1000-13.5V 13.5V,0-74A ± 1% 240mvp-p 84%
SCN-1000-15V 15V, 0-66A ± 1% 240mvp-p 83%
SCN-1000-24V 24V, 0-40A ± 1% 240mvp-p 86%
SCN-1000-27V 27V, 0-37A ± 1% 300mvp-p 87%
SCN-1000-48V 48V, 0-20A ± 1% 300mvp-p 87%



1. AC input voltage range: 90-130VAC/180-260VAC selectable by switch

2. AC inrush current: cold start, 60A at 230VAC

3. DC adjustment range: ±5% rated output voltage by potential meter 20-100% by external control voltage 1-5VDC

4. Setup, rise, hold up time: 800ms,50ms,16ms at full load and 230VAC

5. Overload protection: 110-135% constant current limiting, delay shutdown.

6. Over voltage protection: 110-135% rated output voltage

7. Withstand voltage: I/P-O/P, I/P-FG: 1500VAC, 1minute

8. Working temperature: -10°C~+50°C@100%, 65°C@50% load

9. Packing Size: 2.6kg, 6pcs/15.6kg/CTN

10. Dimension (L*W*H): 291*120*68 mm



3. Please Note

1. The testing condition for the parameter above is: 230VAC input, rated load, 25°C 70%Rh, Humidity.

2. Error, include the setting error, line stability and load stability.

3. Wave test: adopting "A12" double wire for 20MHZ, and 0.1uF&uF capacitor short-circuit for interrupting.

4. Inlet Voltage Stability test: when is over load, the lowest voltage of inler is representative to the highest voltage.

5. Load stability test: the load is from 0% to 100%, others 60%.

6. Total stability test: the load is from 0% to 100%, others 60%.

7. C2,3,6 must be knocked down.

                              Power supply
