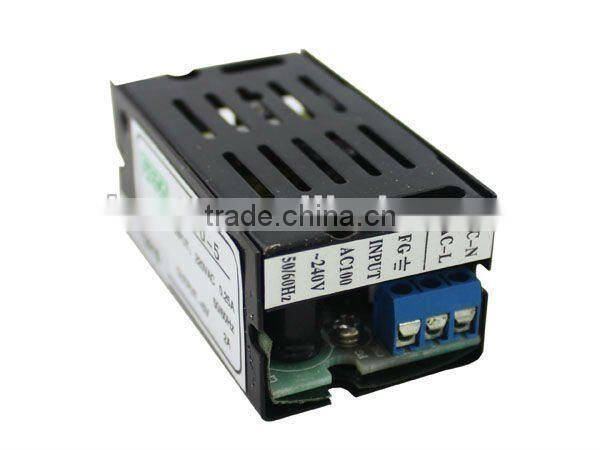

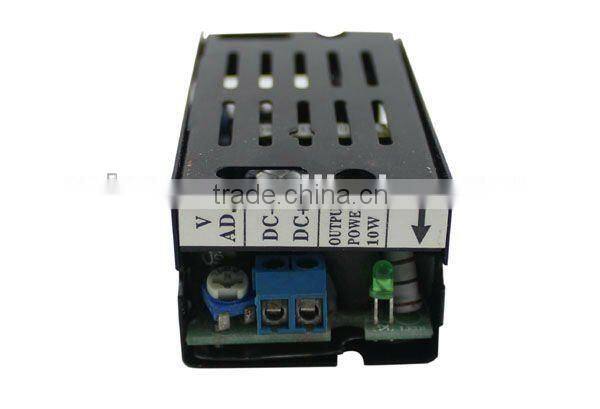

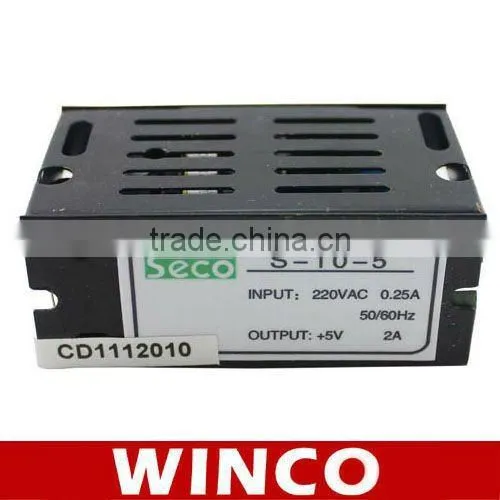

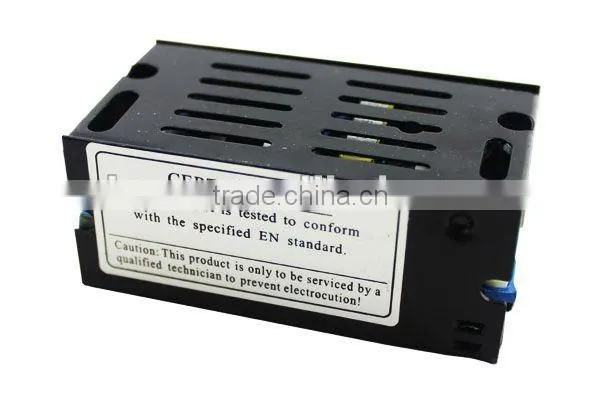

DC Power Supply

DC Power Supply thumbnail-1
DC Power Supply photo-1
US$ 5 - 6 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
seco
Model Number:
S-10-5 S-10-12 S-10-24
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name seco
Model Number S-10-5 S-10-12 S-10-24
Output Power Other, 10W
Output Type Single
Input Voltage Other, 110V-220V
Output Voltage 5V/12V/24V
Output Frequency 50/60HZ
Output Current 1-2A

Specifications

1.Economical models with electrical equipments
2.Output voltage:5V 12V 24V
3.Efficency>70%
4.Output current:1-2A

1. Features

1.Low price and high reliability

2.105 output capacitor
3.AC input power suitable for the world
4.High efficiency and low operation temperature
5.Soft-start current can reduce the AC input impact effectively
6.With short-circuit and overload protection
7.Compact size, light weight
8.100% full-load burning test
9.Installed with EMI filter, minimum wave

2. Specification



Model / Specification S-10-5 S-10-12 S-10-24
DC output voltage 5V 12V 24V
Output voltage error (Note2) ±2% ±1% ±1%
Rated output current 2A 0.8A 0.4A
Output current rage 0-2A 0-0.8A 0-0.4A
Wave and noise(Note3) 50mV 50mV 100mV
Inlet stability(Note4) ±0.5% ±0.5% ±0.5%
Load stability(Note5) ±1% ±0.5% ±0.5%
DC output power 10W 10W 10W
Efficiency 65% 68% 72%
Adjustable range for DC voltage ±10,-5% ±10% ±10%
AC input voltage range 85~264VAC 47~63Hz
Input current 0.5A/115V 0.25A/230V
AC impulse current Cold-start current 15A/115V 30A/230V
Leakage current <0.5mA/240VAC
Overload protection 105%~150%Type: current limiting ;Reset: auto recovery
Over-voltage protection ……
High-temperature protection ……
Temperature coefficient ±0.02%°C(0~50°C)
Setup rise hold up time 200ms,100ms,30ms
Vibration 10~500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage Input and output interval:1.5KVAC,Input and enclosure:1.5KVAC,Output and enclosure:0.5KVAC
Isolation resistance Input and output interval,Input and enclosure,Output and enclosure:0500VAC/100M Ohms
Working temperature and humidity -10°C~+60°C,20%~90%RH
Store temperature and humidity -20°C~+85°C,10%~95RH
Overall dimension 69*75*28mm
Weight 0.12Kgs
Note:1.The testing condition for the parameter above is:230VAC input, rated load,25°C 70%Rh,Humidity
         2.Error,include the setting error, line stability and load stability.(Note:5)
         3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting
        4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
        5.Load stability test:The load is from 0% to 100%,others 60%.
