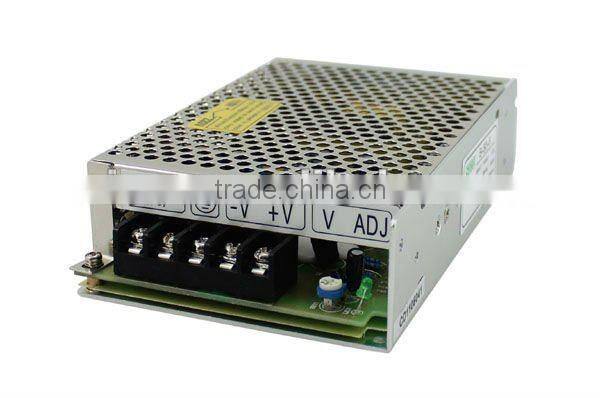

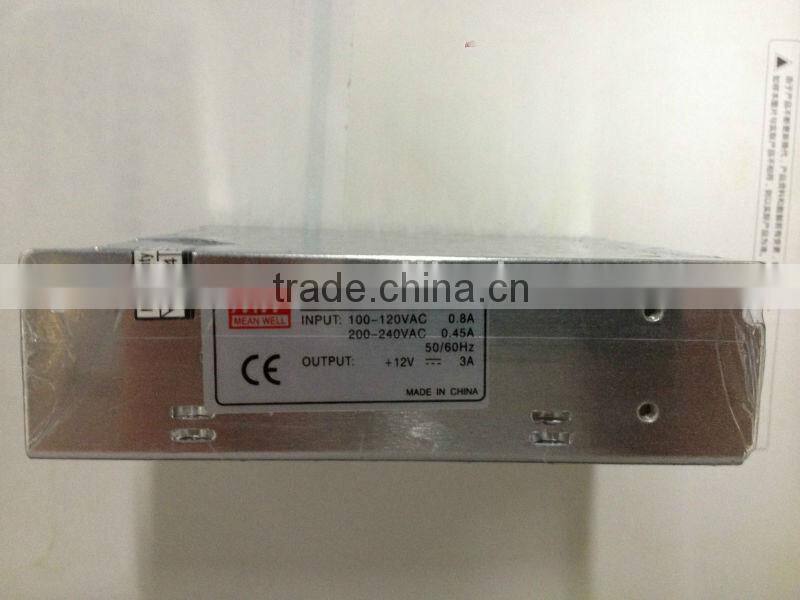

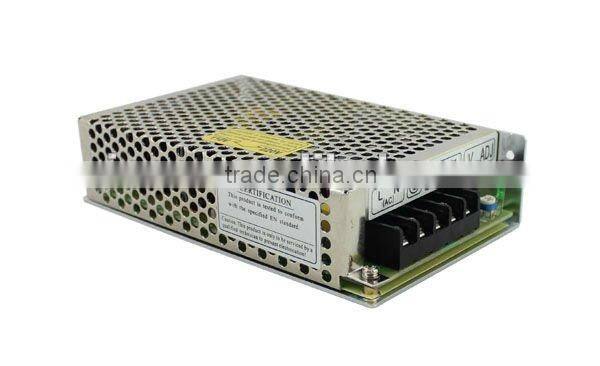

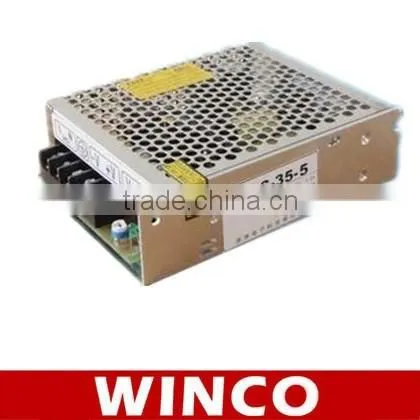

35W S-35 AC DC SWITCHING POWER SUPPLY

35W S-35 AC DC SWITCHING POWER SUPPLY thumbnail-1
35W S-35 AC DC SWITCHING POWER SUPPLY photo-1
US$ 8 - 9 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
seco
Model Number:
S-35-5,S-35-12,S-35-15,S-35-24
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name seco
Model Number S-35-5,S-35-12,S-35-15,S-35-24
Output Power Other, 25W
Output Type Single
Input Voltage Other, 110V-220V
Output Voltage 5V/12V/15V/24V
Output Frequency 50/60HZ
Output Current 0-5A

Specifications

1.Economical models with electrical equipments

 2.Output voltage:5V 12V 15V 24V

3.Efficency>70%

4.Output current:0-5A



1. Features

1.Low price and high reliability

2.105 output capacitor
3.AC input power suitable for the world
4.High efficiency and low operation temperature
5.Soft-start current can reduce the AC input impact effectively
6.With short-circuit and overload protection
7.Compact size, light weight
8.100% full-load burning test
9.Installed with EMI filter, minimum wave

2.Specifications

MODEL

  S-35-5

S-35-12

S-35-15

S-35-24













OUTPUT

DC VOLTAGE

5V

12V

15V

24V

CURRENT RANGE

0 ~ 7A

0 ~ 3A

0 ~ 2.4A

0 ~ 1.5A

RATED CURRENT

7A

3A

2.4A

1.5A

RATED POWER

35W

36W

36W

36W

RIPPLE & NOISE (max.)  Note.2

75mVp-p

100mVp-p

100mVp-p

100mVp-p

VOLTAGE ADJ. RANGE

4.75 ~ 5.5V

10.8 ~ 13.2V

13.5 ~ 16.5V

22.6 ~ 26.4V

VOLTAGE TOLERANCE

NOTE.3

2.0%

   1.0%

1.0%

1.0%

LINE REGULATION

0.5%

0.5%

0.5%

0.5%

LOAD REGULATION

1.0%

5.0%

0.5%

0.5%

SETUP, RISE TIME NOTE.5

200ms, 100ms, 30ms at full load





 INPUT

VOLTAGE RANGE

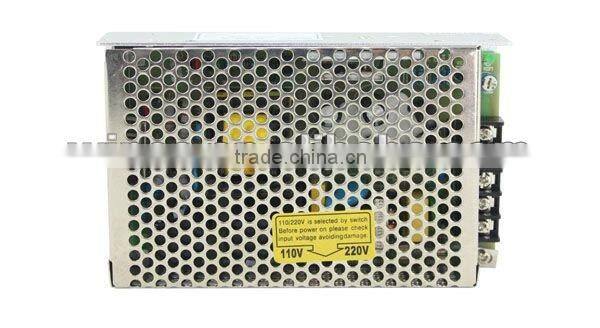

85 ~ 132VAC / 170 ~ 264VAC selected by switch 240 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

70%

76%

78%

78%

AC CURRENT (Typ.)

0.8A/115VAC   0.45A/230VAC

INRUSH CURRENT (Typ.)

COLD START 18A/115VAC    36A/230VAC

LEAKAGE CURRENT

<2mA / 240VAC

 PROTECTION

OVER LOAD

105 ~ 150% rated output power

Protection type : Fold back current limiting, recovers automatically after fault condition is removed.





ENVIRONMENT

WORKING TEMP.

-10 ~ +60oC(Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90% RH non-condensing

STORAGE TEMP., HUMIDITY

-20 ~ +85oC , 10 ~ 95% RH

TEMP. COEFFICIENT

0.03%/oC(0 ~ 50oC )

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, period for  60min. each along X, Y, Z axes





SAFETY &EMC(Note 4)

SAFETY STANDARDS

Design refer to UL1012

WITHSTAND VOLTAGE

I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC

EMI CONDUCTION & RADIATION

Design refer to FCC Part15 J Conduction Class B



OTHERS

MTBF

435.2K hrs min. MIL-HDBK-217F (25 )

DIMENSION

129*98*38mm (L*W*H)

PACKING

0.41Kg; 30pcs/13.4Kg/0.86CUFT



NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25oCof ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation



 Note:1.The testing condition for the parameter above is:230VAC input, rated load,25°C 70%Rh,Humidity

          2.Error,include the setting error, line stability and load stability.(Note,5)

          3.Wave test:adopting“A12”double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting.

          4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage.
