Single Output Switch Power Supply (S-15)

Name: Single Output Switch Power Supply (S-15)
Brand: seco
SKU: 133483963
Availability: InStock

Single Output Switch Power Supply (S-15) thumbnail-1

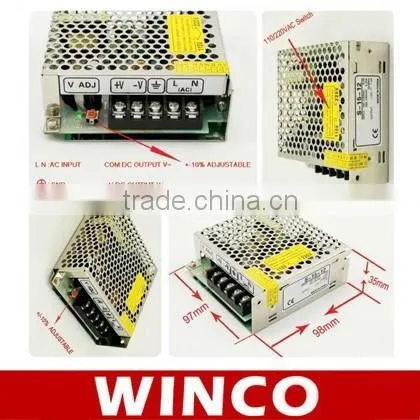

Single Output Switch Power Supply (S-15) photo-1

US$ 8 - 9 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

seco

Model Number:

S-15-5,S-15-12,S-15-24

Contact Supplier Request Quote Chat Now

Wenzhou Winco Imp&Exp Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo/Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name seco

Model Number S-15-5,S-15-12,S-15-24

Output Power 1 - 50W

Output Type Single

Input Voltage Other, 115V-230V

Output Voltage 5V/12V/15V/24V

Output Frequency 50/60HZ

Output Current 0-10A

Specifications

1.AC/DC Power Supplies
2.CE
3.High Quality
4.2 year warranty

AC/DC Power Supplies S-15 Series:

Switching Power Supply

1.Low price and high reliability
2.105 output capacitor
3.AC input power suitable for the world
4.High efficiency and low operation temperature
5.Soft-start current can reduce the AC input impact effectively
6.With short-circuit and overload protection
7.Compact size, light weight
8.100% full-load burning test
9.Installed with EMI filter, minimum wave

Model Specification	S-15-5	S-15-12	S-15-24
DC output voltage	5V	12V	24V
Output voltage error (Note2)	±2%	±1%	±1%
Rated output current	3A	1.3A	0.7A
Output current rage	0-3A	0-1.3A	0-0.7A
Wave and noise(Note3)	50mVp-p	50mVp-p	100mVp-p
Inlet stability(Note4)	±0.5%	±0.5%	±0.5%
Load stability(Note5)	±1%	±0.5%	±0.5%
DC output power	15W	15.6W	16.8W
Efficiency	65%	68%	72%
Adjustable range for DC voltage	±10,-5%	±10%	±10%
AC input voltage range	85132VAC/170264VACselected by switch
Input current	0.5A/115V 0.25A/230V
AC impulse current	Cold-start current 15A/115V 30A/230V
Leakage current	<0.5mA/240VAC
Overload protection	105%150%Typecurrent limiting; Reset: auto recovery
Over-voltage protection
High-temperature protection
Temperature coefficient	±0.02%(050)
Setup rise hold up time	200ms,100ms,30ms
Vibration	10500Hz,2G 10min./1cycle,Period for 60min,Each axes
Withstand voltage	Input and output interval1.5KVAC,Input and enclosure1.5KVAC,Output and enclosure0.5KVAC
Isolation resistance	Input and output interval,Input and enclosure,Output and enclosure0500VAC/100M Ohms
Working temperature and humidity	-10+60,20%90%RH
Store temperature and humidity	-20+85,10%95RH
Overall dimension	999735mm
Weight	0.3Kgs
Safety standards	Meet UL 1012 requirement(Not apply for the mark)
EMC standards	Meet FCC Part 15J Conduction Class B
Note:1.The testing condition for the parameter above is:230VAC input, rated load,25 70%Rh,Humidity 2.Error,include the setting error, line stability and load stability.(Note:5) 3.Wave test:adoptingA12double wire for 20MHz,and 0.1uF&uF capacitor short-circuit for interrupting 4.Inlet voltage stability test: when is over load, the lowest voltage of inlet is representative to the highest voltage. 5.Load stability test: The load is from 0% to 100%,others 60%. 6.C2311must be knocked down.
