Specifications
1.Voltage: 12KV2.Current: 630A
3.For breaking or closing load and over-load current
4.Fuse can be allocated

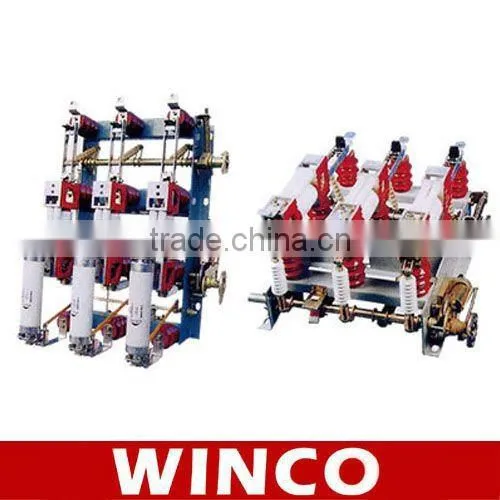

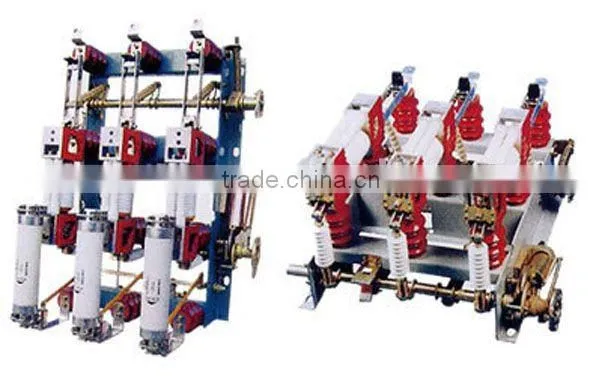

Indoor H.V. Load Break Switch ZFN16-12 Series
Summary
It is designed and developed by ourselves. Its performances reach international and national standard in GB3604-90 <<3-63KV AC H.V. Load Switch>> and IE420 <<AC H.V. Load Switch with Fuse>> (1990 Edition), with the features of safe breakinglong power lift-timefrequent operationobvious isolating break and break transfer current without maintain, the load switch with fuse box have also protects transformer against over-load and working without phase.
Application
ZFN16-12 Series Switch is used in the network of rated voltage 6-12 KV and three-phase AC 50Hz for breaking load, overload and short-circuit current, esp. for the requirement of frequent operation but without oilization and repair.
The product is equipped with CS6-I type operating mechanism and CS handle operating mechanism.
Service condition
a. The altitude does not exceed 1000m.
b. The ambient air temperature: Max.: +40 . Min: -25 .
c. The relatire humidity of air. daily average ≤ 90%. monthly average ≤ 95%.
d. The ambient air should not be obviously polluted by corrosivity or the flammability gas and steam etc.
e. The working situation without frequent violent.
Technical Parameter and Performances
Number |
Name |
Unit |
Parameter |
1 |
Rated voltage |
kV |
12 |
2 |
Rated frequency |
A |
630 |
3 |
Reated current |
A |
630 |
4 |
Lighting impulse resisting voltage |
A |
630 |
5 |
1min power frequency with stand voltage |
A |
31.5 |
6 |
Rated heat - stability current |
A |
10 |
7 |
Rated machine-stability current |
A |
1250kVA current of no-load transformer |
8 |
Rated closing current (peak) |
kV |
42/48 |
9 |
Rated short-circuit breaking current |
kV |
75/85 |
10 |
Rated transfer current |
kA |
50 |
11 |
Max. breaking current |
kA/S |
20/2 |
12 |
Breaking no-load transformer capacity |
kA |
50 |
13 |
Rated cable charging current |
time | 10000 |
14 |
Rated power load current breaking times |
time | 10000 |
15 |
Switch-off time of rated power load current switch on-and-off |
mm |
3 |
16 |
Earth switch heat-stability current |
mm |
210 |
17 |
Earth switch heat-stability curreak (peak) |
N.M |
<100 |
18 |
Motor operating power valtage |
mm |
700×800×390 |

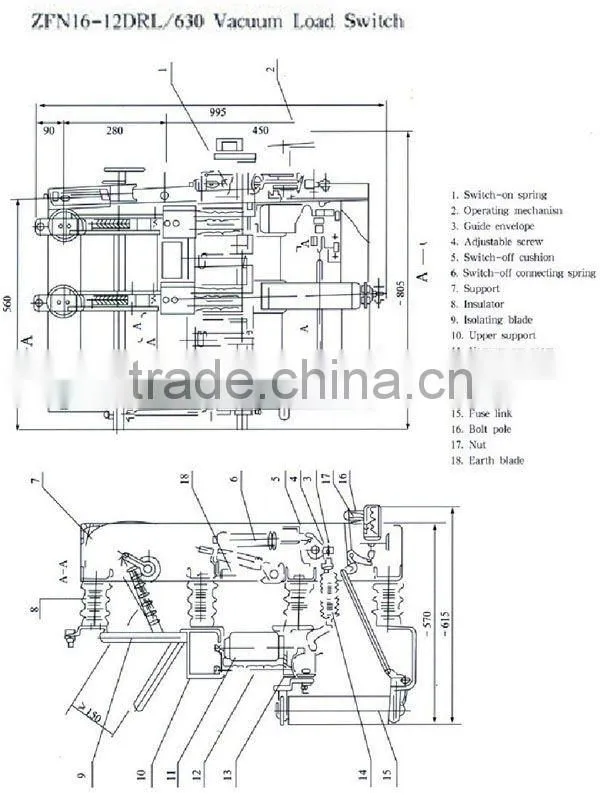

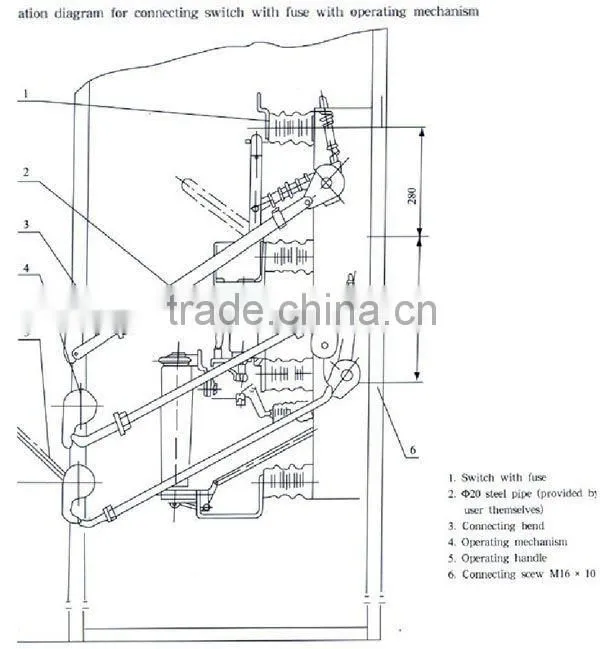

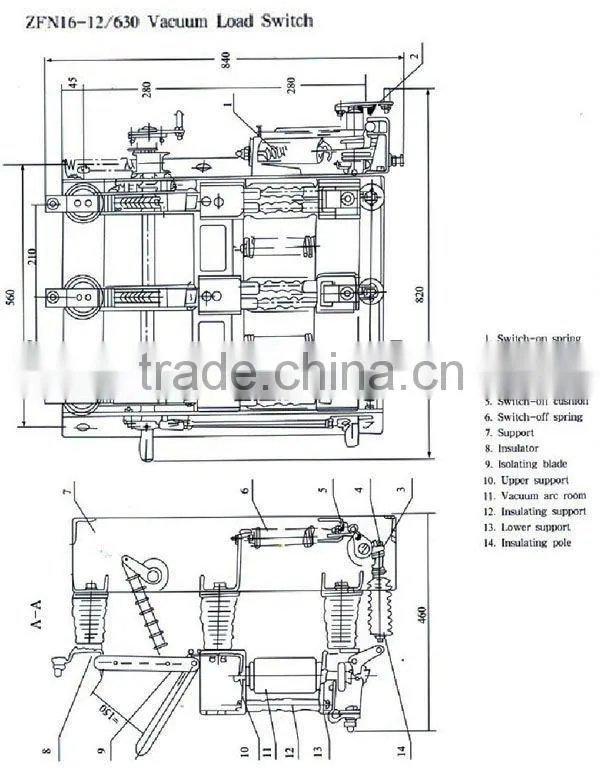

Installation Diagram
