CJX2 series ac contactor LC1-D80004

Specifications

1.rated voltage up to 660V
2.rated current up to 95A
3.Telemecanique standard
4.with CE

1.Detailed Product Description

CJX2 LC1-D series AC Contactor, Magnetic Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2, VDE0660 & BS5452.

Type		CJX2-D09	CJX2-D12	CJX2-D18	CJX2-D25	CJX2-D32
Rated working current(A)	AC3	9	12	18	25	32
	AC4	3.5	5	7.7	8.5	12
AC3 capacity of phase 3 squirrel-cage motor AC3(KW)	220/230V	2.2	3	4	5.5	7.5
	380/400V	4	5.5	7.5	11	15
	415V	4	5.5	9	11	15
	440V	4	5.5	9	11	15
	500V	5.5	7.5	10	15	18.5
	660/690V	5.5	7.5	10	15	18.5
Rated heat current(A)		20	20	32	40	50
Electrical life	AC4X10 4	20	20-15	20-7	15-7	15-7
	AC3X10 6	2	2	2	2	2
Mechanical		20	20	20	20	20
number of the contact	3P+NO
	3P+NC



Dimensions:

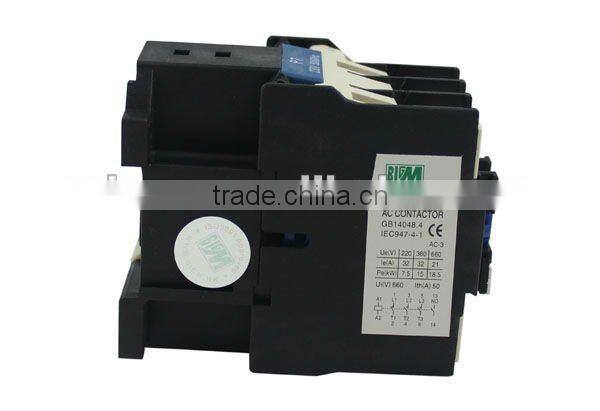

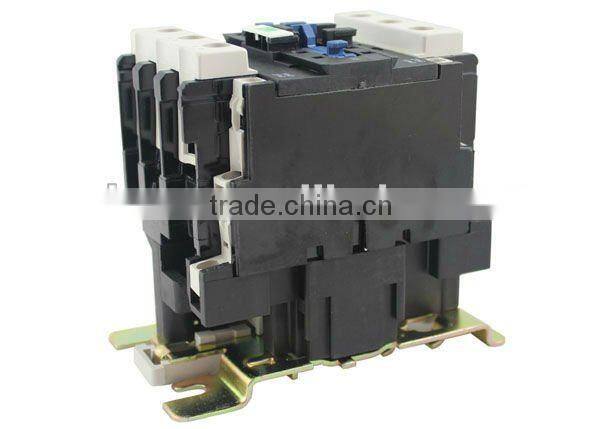

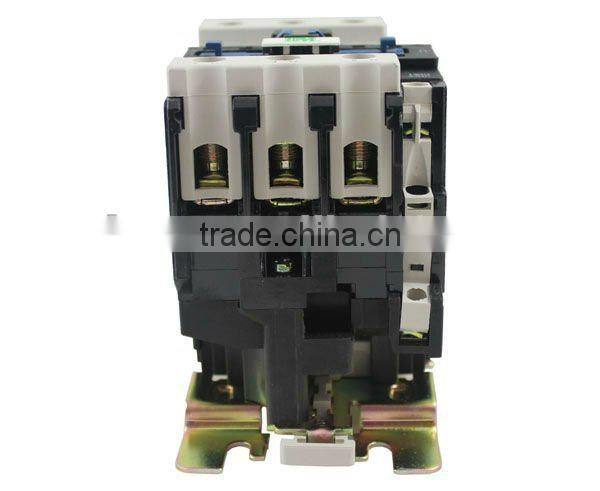

2.Product photo
