CJX2 Series ac Contactor LC1-D65004

Wenzhou Winco Imp&Exp Co., Ltd.
CJX2 Series ac Contactor LC1-D65004 thumbnail-1
CJX2 Series ac Contactor LC1-D65004 photo-1
US$ 13.5 - 14 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
LC1-D65004
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number LC1-D65004
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage Other, up to 660V
Main Circuit Rating Current Other, up to 95A

Specifications

1.rated voltage up to 660V
2.rated current up to 95A
3.Telemecanique standard
4.with CE

1.Detailed Product Description

CJX2 LC1-D series AC Contactor, Magnetic Contactor is suitable for using in the circuits up to the rated voltage 660V AC 50Hz or 60Hz, rated current up to 95A, for making, breaking, frequently starting & controlling the AC motor. Combined with the auxiliary contact block, timer delay & machine-interlocking device etc, it becomes the delay contactor, mechanical interlocking contactor, star-delta starter. With the thermal relay, it is combined into the electromagnetic starter. The Contactor is produced according to IEC947-2, VDE0660 & BS5452.

TypeCJX2-D09CJX2-D12CJX2-D18CJX2-D25CJX2-D32
Rated working
current(A)		AC3912182532
AC43.557.78.512
AC3 capacity of phase 3 squirrel-cage motor AC3(KW)220/230V2.2345.57.5
380/400V45.57.51115
415V45.591115
440V45.591115
500V5.57.5101518.5
660/690V5.57.5101518.5
Rated heat current(A)2020324050
Electrical lifeAC4X10 42020-1520-715-715-7
AC3X10 622222
Mechanical2020202020
number of the contact3P+NO
3P+NC



Dimensions:

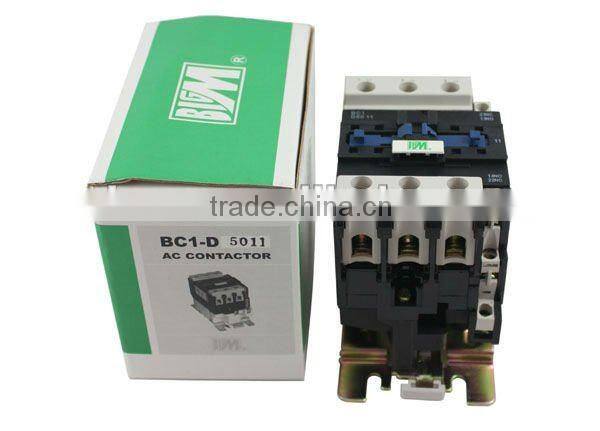

2.Product photo
