Help CenterCapacitor Bank Power Factor
Related Products
Specifications
1.Your Comprehensive Source for Electrical Equipments2.Romania,Egypt,Peru,Ghana,Chile,Uzbekistan etc.
3.Voltage:415V 450V
Purpose: This capacitor bank is installed in the power distribution system of factory for automatic power factor correction.
Capacitor banks 90KVAR 550V 3 steps
Capacitor banks 120KVAR 550V 4 steps
Capacitor banks 125KVAR 550V 5 steps
Capacitor banks 150KVAR 550V 3 steps
Capacitor banks 150KVAR 550V 5 steps
Capacitor banks 210KVAR 550V 7 steps
With fan, temperature controller, automatic controller, thermal relay.
1. 50KVAR, 4 ways, 5KVAR, 10, 15, 20 Dimension: 1200H*700*370
2. 100KVAR, 6 ways, 5, 10, 15, 15, 25, 30, Dimension: 1200H*600*500
3. 150KVAR, 7 ways, 5,10,20,25,30,30,30, Dimensions: 1200H*700*500
4. 200KVAR, 8 ways, 5,15,30,30,30,30,30,30, Dimensions: 1200H*700*500
5. 250KVAR, 10 ways, 5,15,20,30,30,30,30,30,30,30, Dimensions: 1500H*800*500
6. 300KVAR, 12 ways, 5, 10, 20, 25, 30*8, Dimension: 1500H*1000*500
Desciption:

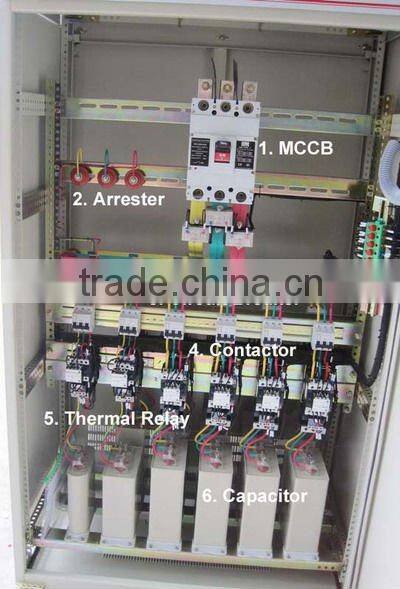

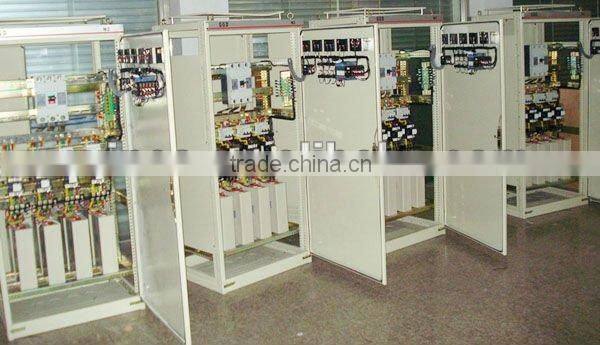

Standard Capacitor bank:
will include below items:
1. Reliable Moulded case circuit breaker as main switch (Knife switch is optional, as economic choice)
2. Arresters
3. High quality Mini circuit breaker, high voltage and large current, will use Moulded case circuit breaker
4. Contactors (Thyristor switch or complex switch is optional)
5. Thermal relay
6. Capacitors
7. Controllers (cost efficiency RPCF controller or economic controller is optional)
8. Panel meters and indicators

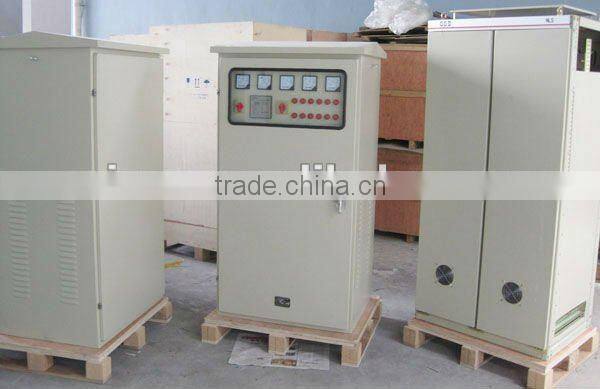

9. Metal cabinet (Indoor or outdoor, also stainless steel is optional)
Other optional:

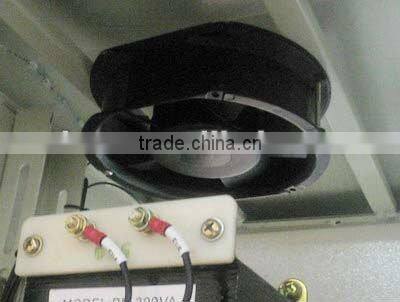

10. Cooling Fan

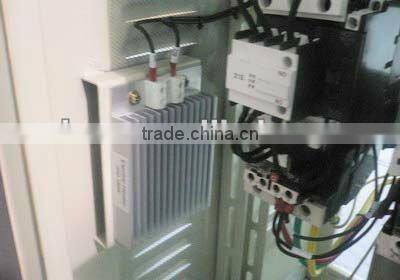

11. Heater

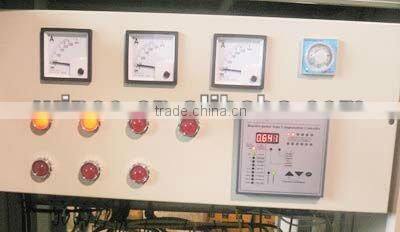

7. 9 . Controller & Panel meter & Indicator
10. Cooling fans
11. Heater

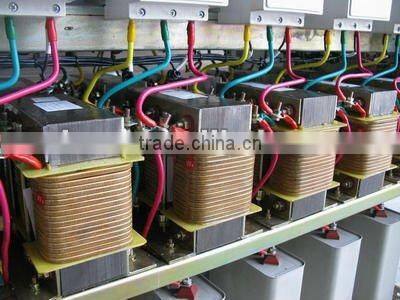

Reactors are optional: Pls inform us the Resonant Frequency
