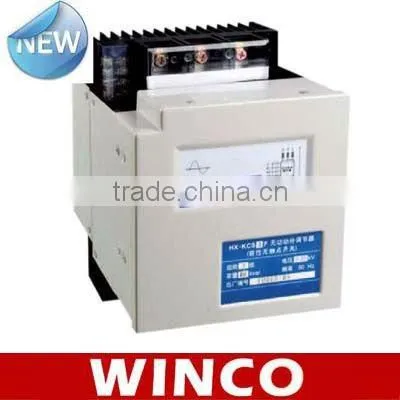

Help CenterNew Type KCS Thyristor Switch for Power Factor Compensation
Related Products
-
New Type KCS-S Thyristor Switch for Capacitor BankUS$ 80 - 80MOQ: 10 Pieces -
XBY Harmonic Suppressor for Power Factor Compensation DeviceUS$ 50 - 200MOQ: 10 Pieces
-
Single Phase Harmonic Filter ReactorUS$ 100 - 1,000MOQ: 10 Pieces
-
Three Phase Dry Iron Core ReactorUS$ 100 - 1,000MOQ: 10 Pieces
-
Power Factor Compenstaion Reactor for CapacitorUS$ 100 - 1,000MOQ: 10 Pieces
Specifications
1.New type Max 80Kvar2.For Dynamic Reactive Power Compensation
3.Switching time: smaller than 20ms
4.Single or three phase
KCS series capacitive no-contact switch is electr onic power controller for switching quickly on/off power shunt capacitor, composed of large - capacity inversely shunt transistor module,
isolation circuit, touch- off circuit, synchronized circuit, protective circuit and driving circuit, and provided with sw itch on /off ter minals, logic control voltage OV (Off), 12V(On). This switch can be easily mounted, maintained, quickly response, it has no switching surge and noise during operating. Phase failure protection provided. It is the ideal controller for capacitor bank to dynamically compensating the reactive power.
Rated Voltage: 380V (220V)
Rated Frequency: 50Hz
How to Order:
- KCS1A-0.4-x-(S) Min: 1Kvar Max: 40Kvar
- KCS3F-0.25-x-(S) Min: 3x1Kvar Max: 3x10Kvar
- KCS1A-0.4-x-B Min: 41Kvar Max: 80Kvar
- KCS3F-0.25-x-B Min: 3x10Kvar Max: 3x20Kvar
Capacity Range:
380V S 1Kvar-40Kvar
220V S 3x1Kvar-3x10Kvar
380V B 50Kvar-80Kvar
220V B 3x11Kvar-3x20kvar

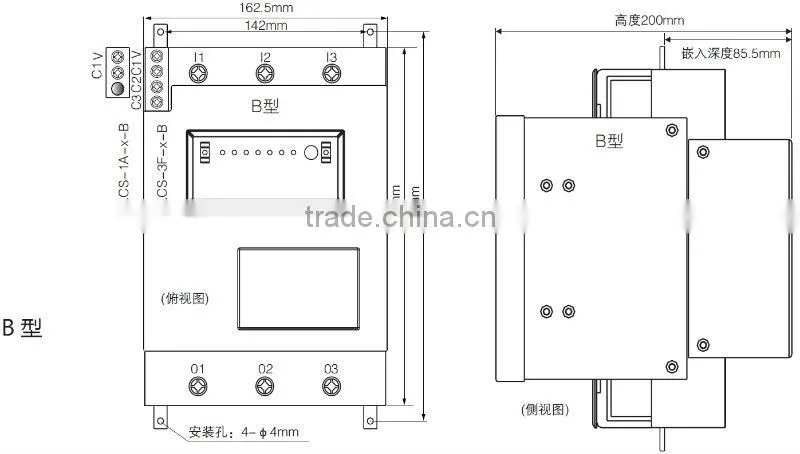

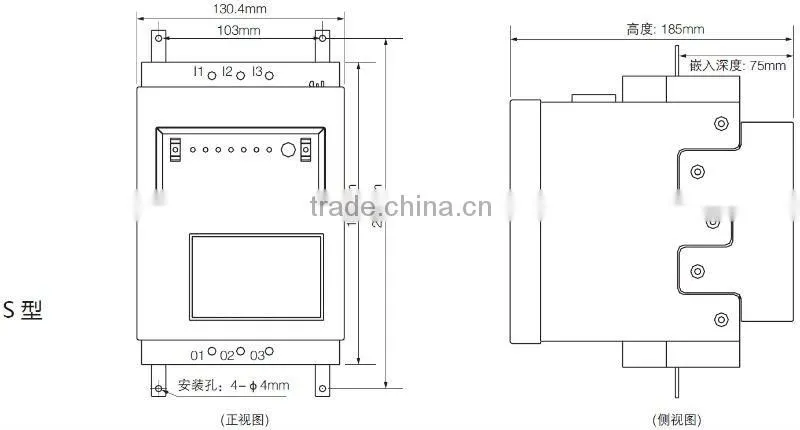

Dimension:
