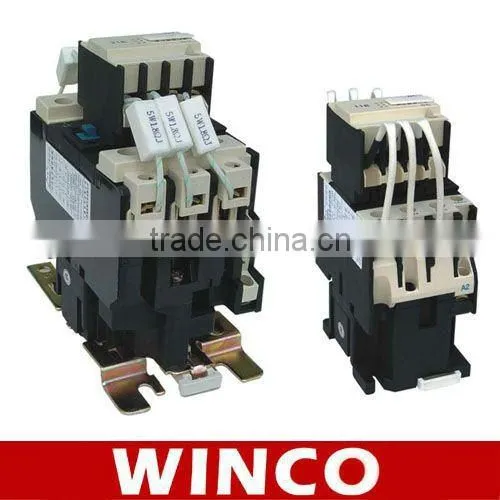

CJ19 Contactor for Reactive Power Compensation

CJ19 Contactor for Reactive Power Compensation thumbnail-1
CJ19 Contactor for Reactive Power Compensation photo-1
US$ 5 - 30 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
BIGM
Model Number:
CJ19 CJ16
Contact Supplier Request Quote Chat Now
Wenzhou Winco Imp&Exp Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name BIGM
Model Number CJ19 CJ16
Electricity Type AC
Number of Pole 3
Phase 3
Main Circuit Rating Voltage 380v
Main Circuit Rating Current Other, 63A

Specifications

1.Your Comprehensive Source for Electrical Equipments
2.Special for power factor correction
3.AC380V
4.with CE

The contactor is suitable for using in the circuits up to voltage 380V AC 50Hz for putting the low voltage reactive power compensation device or cutting low voltage shunted  capacitor. The contactor is supplied with the suppressing in rush current shock to capacitor while closing and suppressing over-voltage while breaking.
HS Code:  85362000
Trademark:  CNC, OEM
Model: CJ19(CJ16)
Standard:   IEC 60947-4, GB14048-4
Specification:
Rated  voltage: 380V
Rated  current:  25,32,43,63A

LC1-D AC contactors, LC1-F AC contactors, LC1-DN AC contactors, LP1-D DC Contactors, CJ16(19) AC contactors, 3TB AC contactor, 3TH AC contactors, DSF(3TF) AC Contactors, ACK Air Conditioning AC Contactors, LA1-D, LA2-D Contact Blocks



Specification:

Model CJ19-25 CJ19-32 CJ19-43 CJ19-63 CJ19-95
Electrical lfie(×103) 100 100 100 100 100
Rated current le(380V)A 17 23 29 43 63
Power ofcontrolled capacitor 220/230V 6 9 10 15 22
380/400V 12 18 20 30 40
Rated insulation voltage Ui(V) 500
Rated operational voltage Ue(V) 380
Restrained surge capacity 20le
Operation range Pick-up:(85%~110%)Us; Drop-out:(20%~75%)Us
Coil power(VA) Start-up 70 110 110 200 200
Holding 8 11 11 20 20
Control capacity of auxiliary contact AC-15 360VA; DC-13 33W
Weight(Kg) 0.44 0.63 0.64 1.4 1.5





More photos:

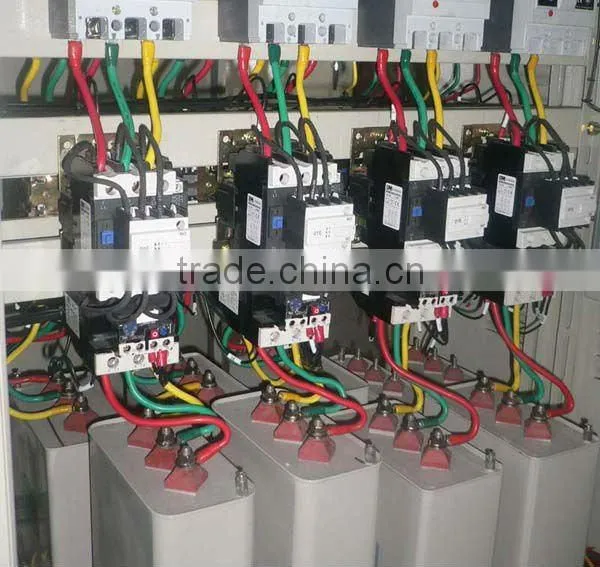

CJ19 Contactor for Reactive Power Compensation

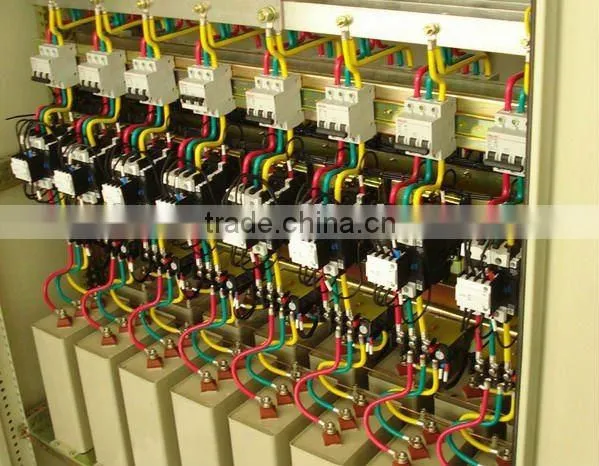

CJ19 Contactor for Reactive Power Compensation

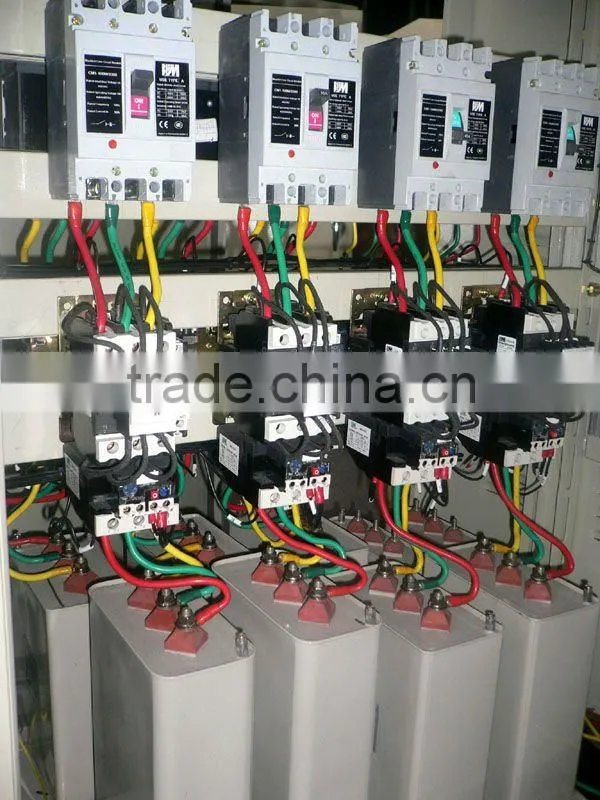

CJ19 Contactor for Reactive Power Compensation
