YUMO IHU4810 1000phase Shaft Diamerter 10mm 5L Hollow Shaft Rotary Encoder

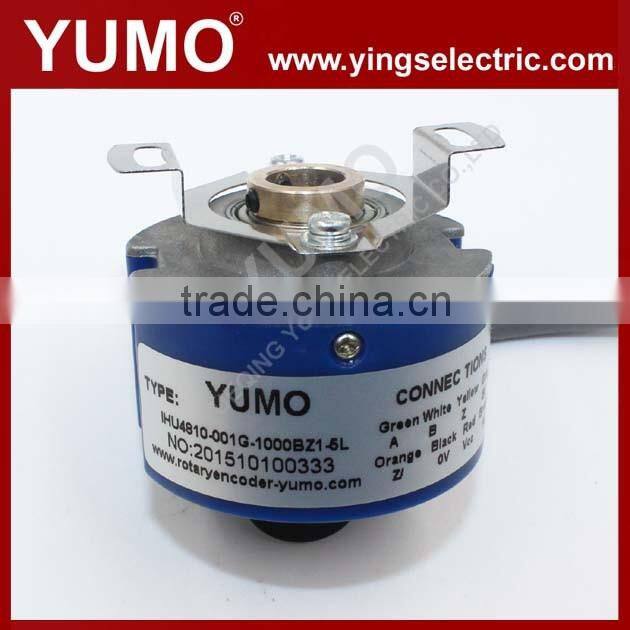

YUMO IHU4810 1000phase Shaft Diamerter 10mm 5L Hollow Shaft Rotary Encoder photo-1

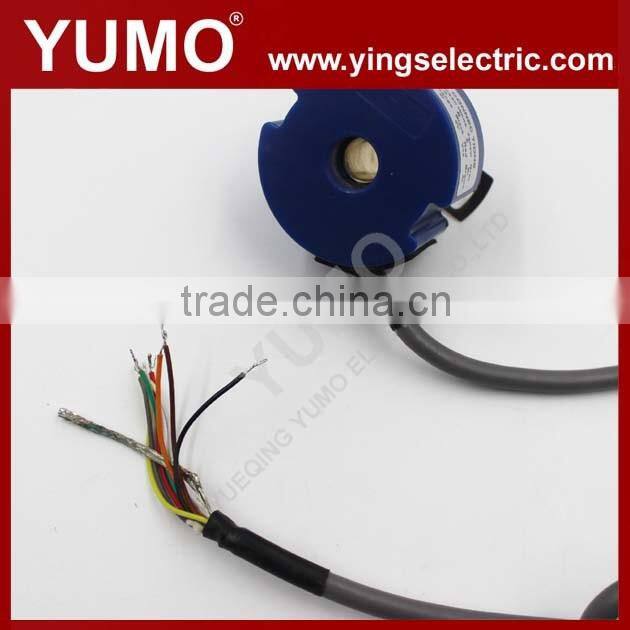

YUMO IHU4810 1000phase Shaft Diamerter 10mm 5L Hollow Shaft Rotary Encoder photo-2

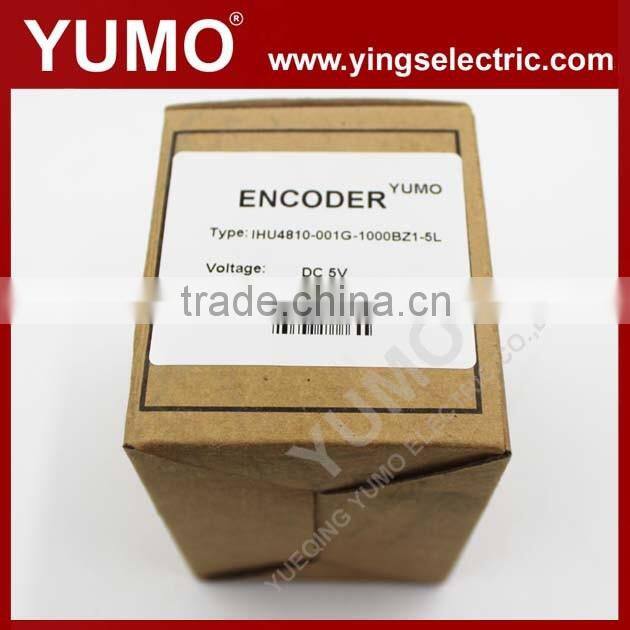

YUMO IHU4810 1000phase Shaft Diamerter 10mm 5L Hollow Shaft Rotary Encoder photo-3

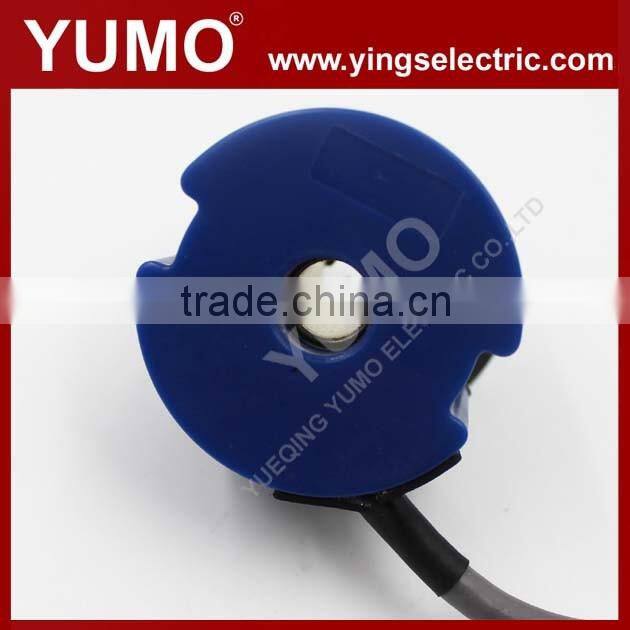

YUMO IHU4810 1000phase Shaft Diamerter 10mm 5L Hollow Shaft Rotary Encoder photo-4

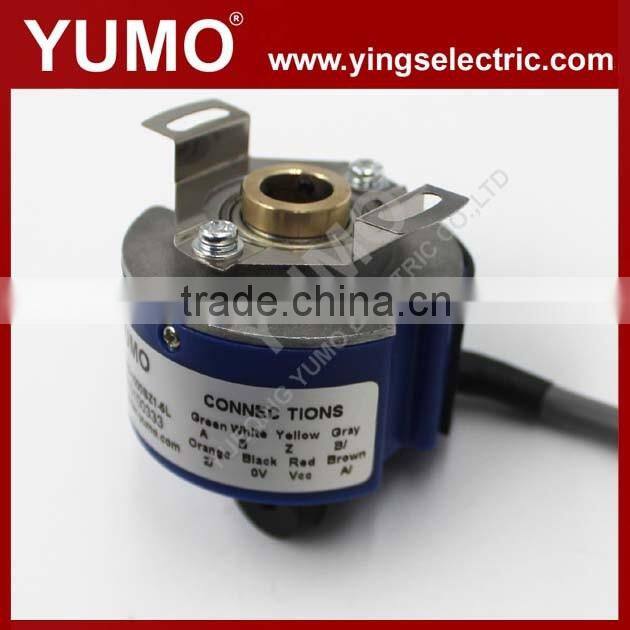

YUMO IHU4810 1000phase Shaft Diamerter 10mm 5L Hollow Shaft Rotary Encoder photo-5
US$ 35 - 40 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
YUMO
Model Number:
IHU4810-001G-1000BZ1-5L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai/Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name YUMO
Model Number IHU4810-001G-1000BZ1-5L
Usage Other, Speed Sensor, Speed Sensor
Theory Other, Optical Sensor, Optical Sensor
Output Digital Sensor

YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder

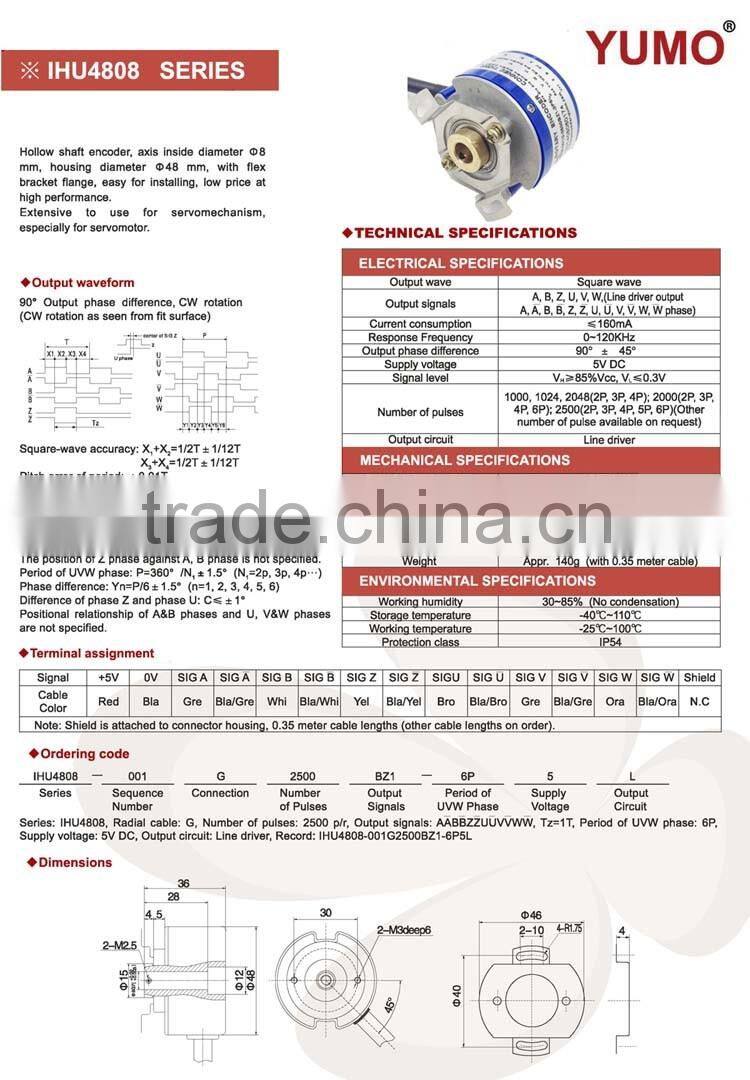

encoder catalouge

YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoderYUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder

YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder



Property projectSpecific parameter
Out wave & duty ratiosquare wave & 0.5T±0.1T
Current Consumption≤160mA
Response frequency0-120KHz
Max.permissible revolution6000rpm
Moment of inertia4.0*10-6Kg.m2
Starting torque2.5*10-3Nm
Shaft loadingRadical:20N / Thrust :10N
IP ratingIP54
Operate & Stock temperature-30C-100C / -25C-80C
Ambient humidity30-85%(with no condensation)
Power supplyDC+5V±5% / +5-12V / +12-24V
Shock resistance980m/s2,6ms,2 times each in X,Y,Z directions
Vibration resistance50m/s2,10-200Hz,2 times each in X,Y,Z directions
Operating lifeMTBF≥30000h (+25C,2000rpm)
Output voltageVh≥85% Vcc,Vi≤0.3V
Weight0.15kg



YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoderYUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoderYUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoderYUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoderYUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder

  YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder YUMO IHU4810 1000phase Shaft diamerter 10mm 5L hollow shaft rotary encoder

E6A2-CS3E 10PR,20PR,60PR,100PR,200PR,300PR,360PR,500PR
E6A2-CS3C 10PR,20PR,60PR,100PR,200PR,300PR,360PR,500PR
E6A2-CS5C 10PR,20PR,60PR,100PR,200PR,300PR,360PR,500PR
E6B2-CWZ6C 10PR,20PR,60PR,100PR,200PR,300PR,360PR,500PR,600PR,720PR,800PR,
E6B2-CWZ5B 100PR,200PR,360PR,500PR,600PR,1000PR,2000PR
E6B2-CWZ3E 10PR,20PR,60PR,100PR,200PR,300PR,360PR,500PR,600PR,720PR,800PR,
E6B2-CWZ1X 10PR,20PR,60PR,100PR,200PR,300PR,360PR,500PR,600PR,720PR,800PR,
E6C2-CWZ6C 10PR,20PR,60PR,100PR,200PR,300PR,360PR,500PR,600PR,720PR,800PR,
E6C2-CWZ5B 100PR,200PR,360PR,500PR,600PR,1000PR,2000PR
E6C2-CWZ3E 10PR,20PR,60PR,100PR,200PR,300PR,360PR,500PR,600PR,720PR,800PR,
E6C2-CWZ1X 10PR,20PR,60PR,100PR,200PR,300PR,360PR,500PR,600PR,720PR,800PR,

E6C3CWZ3EH 100PR,200PR,300PR,360PR,500PR,600PR,720PR,800PR
