IHU4808 8mm 48mm motor encoder Optical Sewing Machine encoder hollow shaft  Incremental encoder rotary encoder

Product Description

VERSION OF TYPE SERIES:

      1

I(Incremental encoder)

A(Absolute encoder)

      2

S(Solid shaft)

H(Hollow shaft)

C(Cone shaft)

N(No shaft)







      3





C(Common type)

H(Shock resistance type)

M(Manual type)

F(Flameproof type)

T(Wide working temperature range)

A(Through-hole hollow shaft type)

L(Flange adapters type)

R(High response frequency)

N(Synchronous flange type)

W(Sine ware type)

S(Airtight type)

U(With UVW phase type)

ORDERING CODER:

ISC   38    06     401    G    1024    BZ      1   --- 5      L

1        2      3        4      5       6        7        8      9     10





1

ISC: Type series

2

38: housing diameter φ38mm

 3

6: Shaft diameter φ6mm

4

401: Sequence number



 5

C: Plug radial

H: Plug axial

G: Cable axial

E: Cable axial

J: Rectangle plug radial

T: Rectangle plug axial



6

1024: Number of pulses

7

Output signals

A: A phase

AL: A phase and Z phase

AZ: A phase and Z phase

B: A,B phase

BL: A,B phase and Z phase

BZ: A,B phase and Z phase

 8

Width of Z phase (Tz)

No number: No demand about Z phase; 1:TZ-1T; 2:TZ-1/2T; 3:Tz=1/4T

 9

Supply voltage

5:5V DC

5-12: 5-12V DC

12-24: 12-24V DC

10

Output circuit

C: Open collector NPN

F: Push pull

E: Voltage

L: Line driver AM26LS31

H: Line driver MC3487

D: Line driver SN75113

T: Line driver 26ET31B







Features

* ASIC devices internal, good reliability, long life, anti-jamming performance.

* Stainless steel shaft has a higher stability and protection.
* Metal shell is more solid and anti-impact.
* Outlet end use waterproof metal interface protection, infold sleeve design, no loose.
* Bearing load heavy, anti-oil and water.
* Applicability to a wide variety of mechanical and industrial control.



IHU4808 SERIES



Hollow shaft encoder, axis inside diameter φ8mm,

Housing diameter φ48mm, with flex

Bracket flange, easy for installing, low price at

High performance.

Extensive to use for servomechanism, especially for servomechanism,

especially for servomotor.

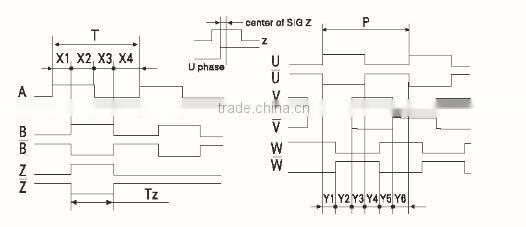

Output waveform

90º Output phase difference, CW rotation

(CW rotation as seen from fit surface)

IHU4808 8mm 48mm motor Optical Sewing Machine hollow shaft incremental rotary encoder

Square-wave accuracy:X1+X2=1/2T±1/12T

                  X3+X4=1/2T±1/12T

Pitch error of period: ±0.01T

Pitch error of phase position : ≤1/18T

Z phase: T z=1/4T(1T,1/2T, 1/4T…)

Period of pulses: T=360 º/N(N:output pulses)

Signal accuracy Xn=1/4T±1/12T(n=1,2,3,4)

A leads B clockwise when viewing the encoder shaft end,

The position of Z phase against A,B phase is not specified.

Period of UVW phase:=360 º/N1±1.5 º (N1=2p,3p,4p…)

Phase difference :Yn=P/6±1.5 º(n=1,2,3,4,5,6)

Difference of phase z and phase U:C≤±1 º

Positional relationship of A&B Phases and U,V&W phases

Are not specified.

TECHNICAL SPECIFICATIONS



ELECTRICAL SPECIFICATIONS

Output wave

Square wave

Output signals

A,B,Z,U,V,W(Line driver output A,A(_),B,B(_),Z,Z(_),U , U,V,V,W,W, phase)

Current consumption

≤160mA

Response Frequency

0~120KHZ

Output phase difference

90º±45º

Supply voltage

5V DC,5-12V DC,12-24V DC

Signal level

VH≥85% Vcc, VL.≤0.3V

Output circuit

 Line driver

Number of pulses

1000,1024,2048,(2P,3P,4P);2000(2P,3P,4P,6P);2500(2P,3P,4P,6P)

 (Other number of pulse available on request)

MECHANICAL SPECIFICATIONS

Speed without sealing

6000rmp

Rotor moment of inertia

Appr.4.0×10-6kgm²

Starting torque without sealing

≤2.5×10-3NM (+25℃)

Shock resistance

980M/S²,6ms, 2 times each on XYZ

Vibration proof

 50M/S²,10~200Hz,2 hours each on XYZ

Working life

MTBF≥50000h(+25℃,2000rpm)

Weight

Appr.140g(with 0.35meter cable)

ENVIRONMENTAL SPECIFICATIONS

Working humidity

30~85%(No condensation )

Storage temperature

-40℃~100℃

Working temperature

-25℃~100℃

Protection class

IP54



  Terminal assignmen

signal

+5

OV

SIG A

SIG A

SIG B

SIG B

SIG Z

SIF Z

SIG U

SIG U

SIG V

SIG V

SIG W

WIG W

Shield

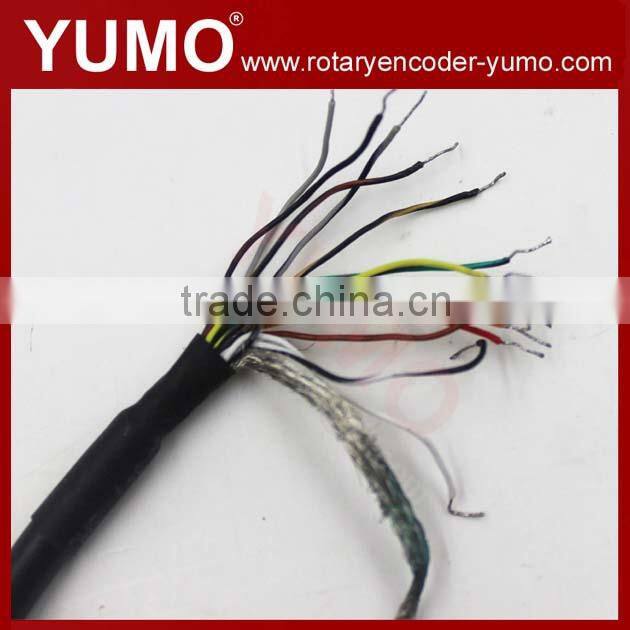

cable color

Red

Bla

Gre

Bla/Gre

Whi

Bla/Whi

Yel

Bla/Yel

Bro

Bla/Bro

Gre

Bla/Gre

Ore

Bla/Ora

N.C



Note:Shield is attached to connector,0.35 meter cable lengths(other cable lengths on order)



  Ordering code

IHU4808   -     001          G        2500      BZ1    -   6P           5       L

Series                           Sequence           Connection       Number            Output               Period of            Supply       Output

Number                                                                                 of Pulses           Signals           UVW Phase        Voltage      Circuit



Series :IHU4808, Radial cable: G, Number of pulses :2500p/r Output Signals: AA(_)BB(_)ZUUVVWW,

TZ=1T,Period of UVW phase:6P,supply voltage:5VD,Outputcircuit:Line

driver ,Record:IHU4808-001G2500BZ1-6P5L

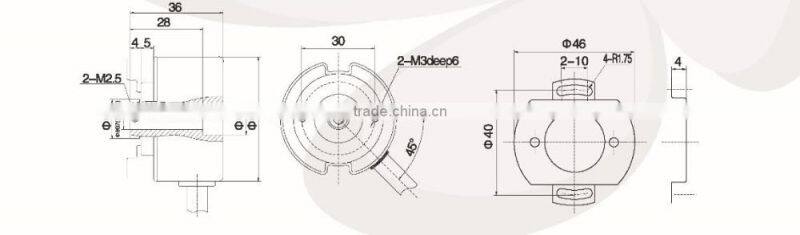

Dimensions

IHU4808 8mm 48mm motor Optical Sewing Machine hollow shaft incremental rotary encoder

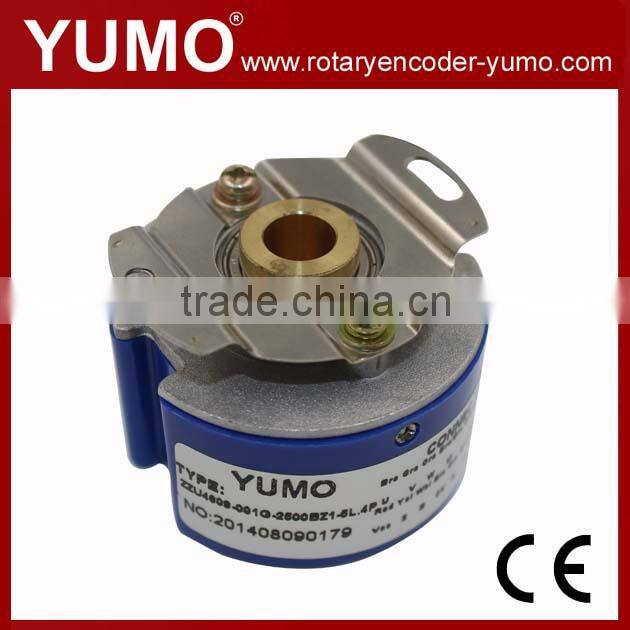

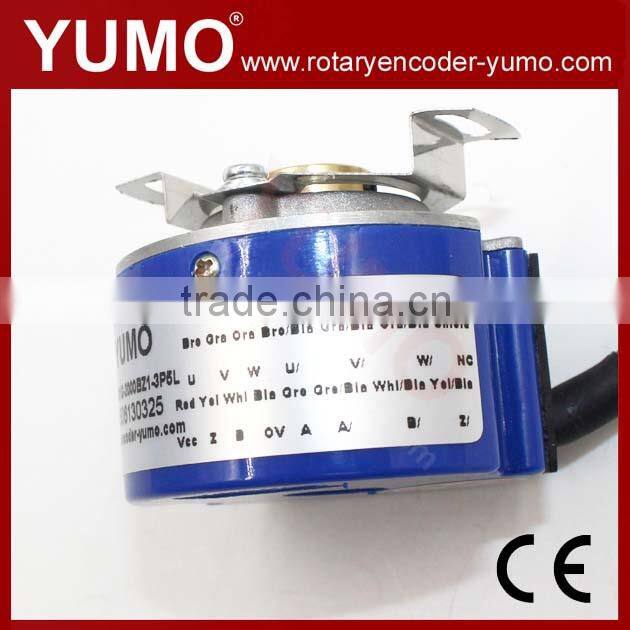

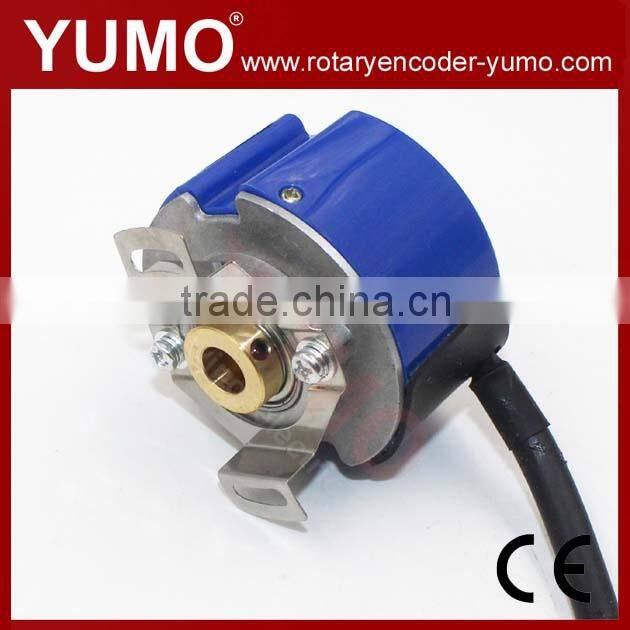

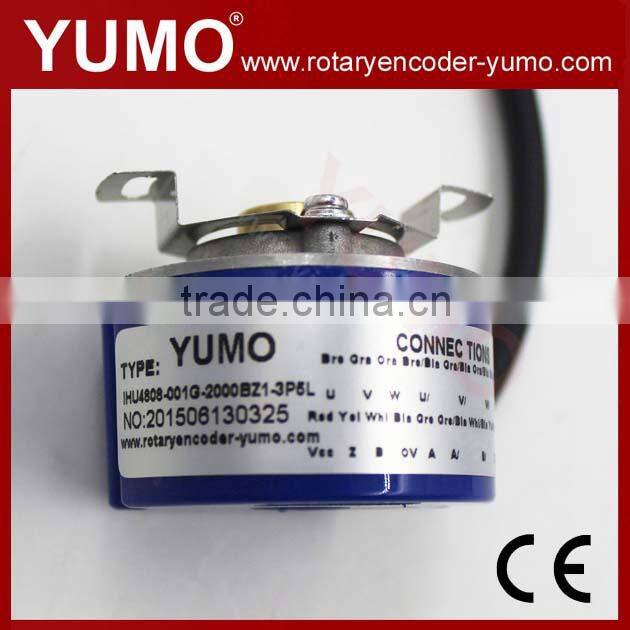

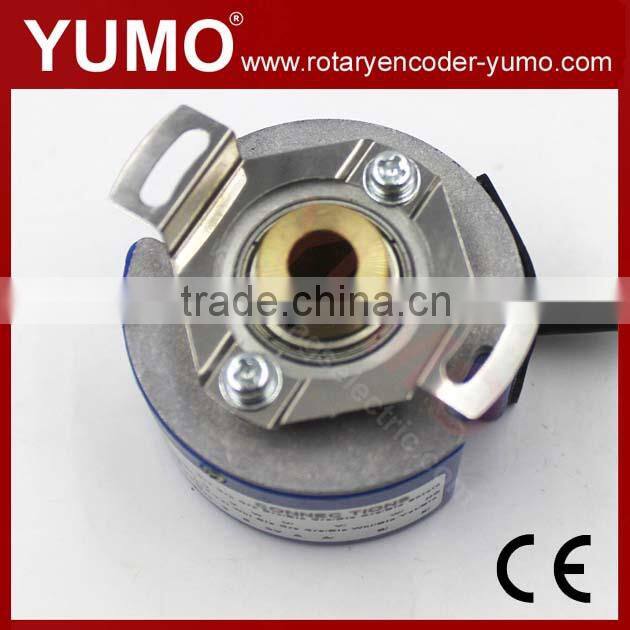

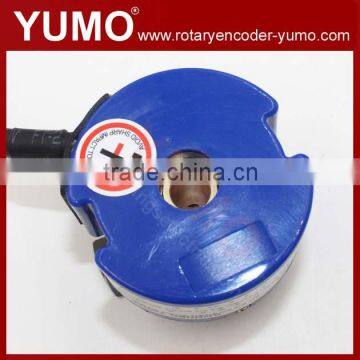

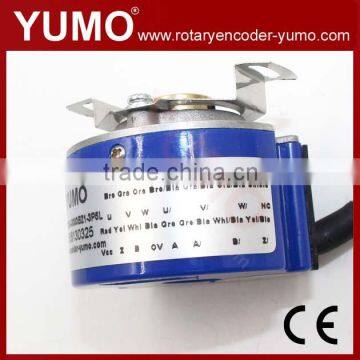

IHU4808 rotary encoder photo:
