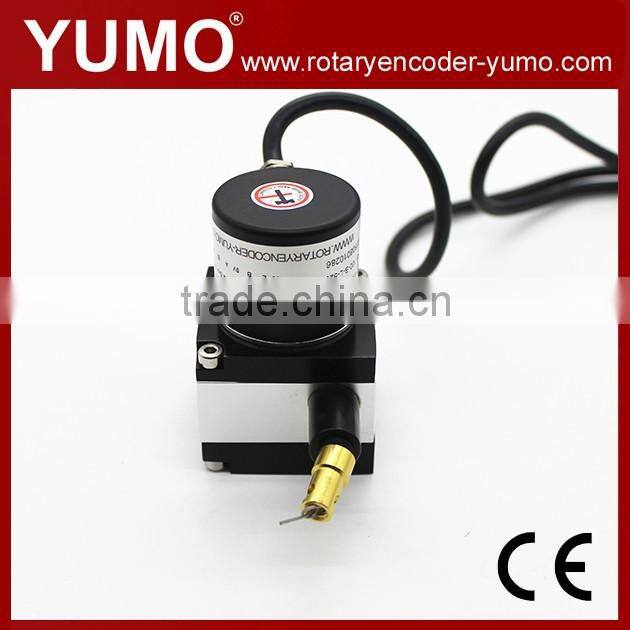

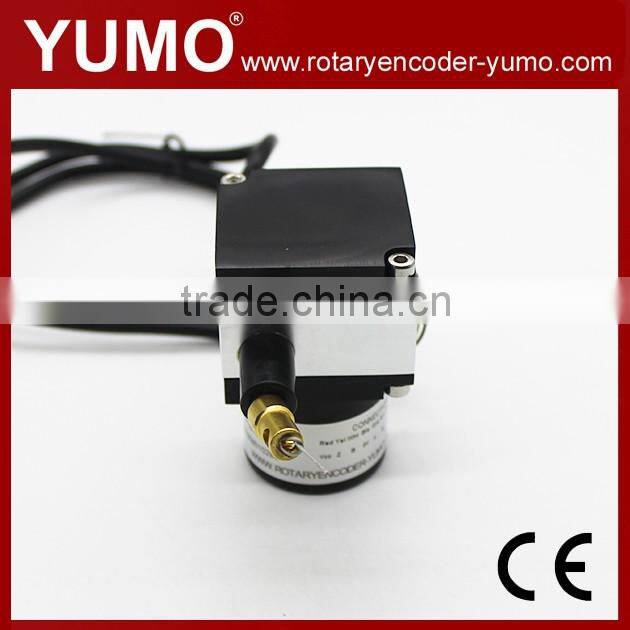

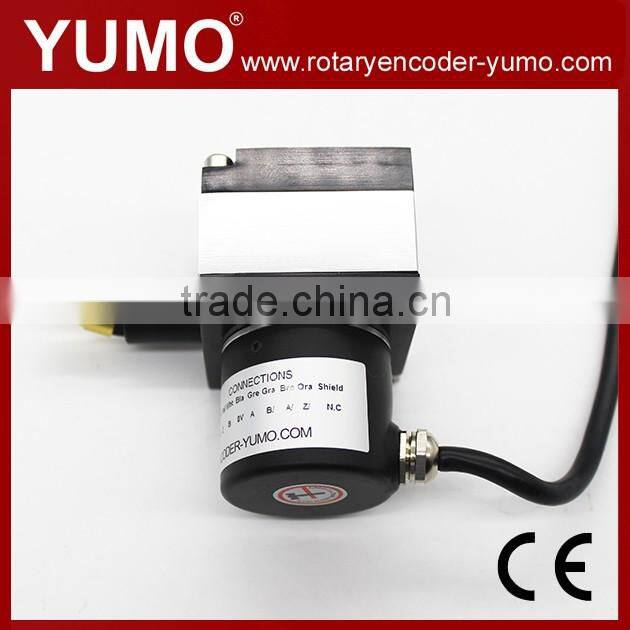

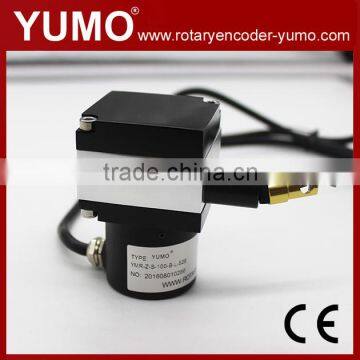

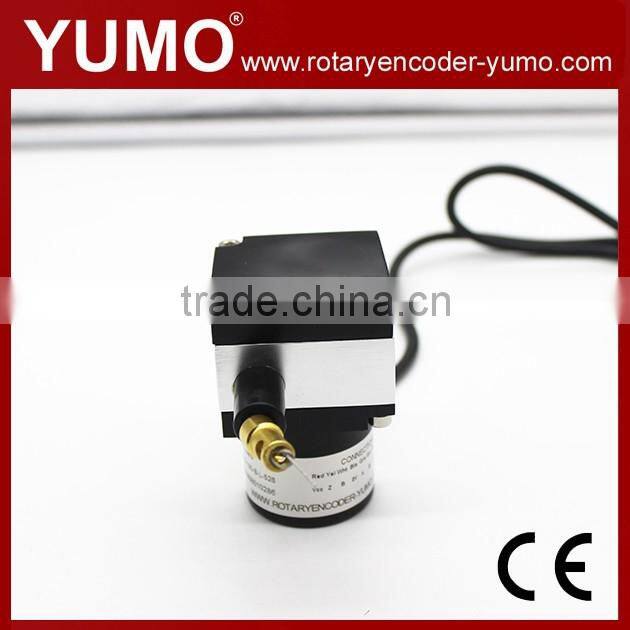

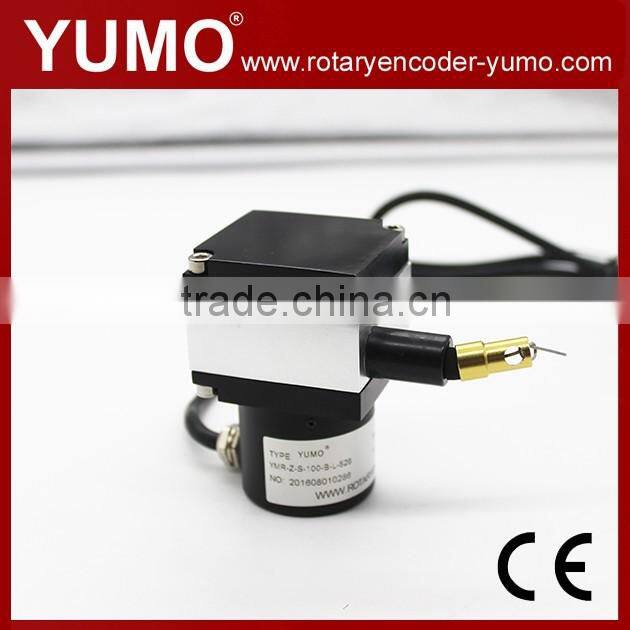

Pulse signal 1000mm Rope displacement sensor wire rotary encoder
| == Product Detailed == |
oder er
Products with 1000 pulse incremental encoder
1, measuring range: 0 mm -450 mm
2, resolution: 0.01mm / p
3, the output phase: 2-phase or 3-phase
4, the power supply voltage: DC5V, DC5-24V
5, cable materials and specifications: 0.6 mm imported plastic rope
6. Working temperature: -25 ℃ ~ + 85 ℃
7, the line tension: about 5N
8 Weight: 500 g
9, the maximum reciprocating speed: 1000mm / s
10, protection class: IP54 (standard)

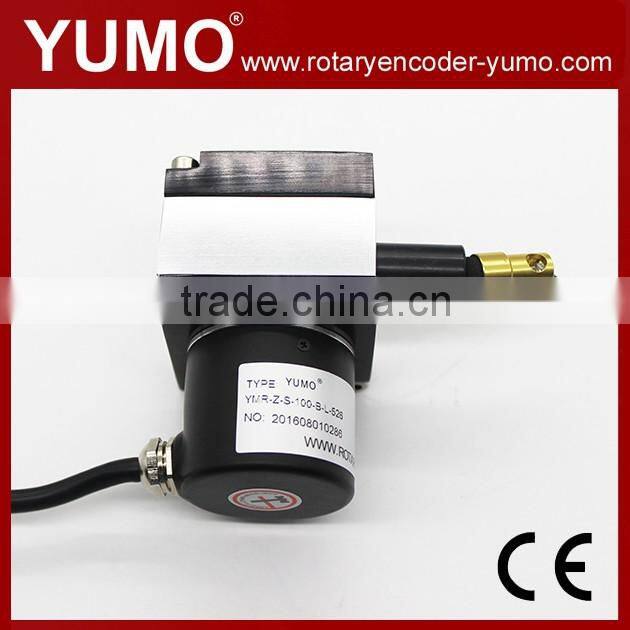

| Type | YMR-Z-S-100-B-L-526 | Range | 0 1000mm |
| Current consumption | ≤ 80mA | Operating Temperature | -30°C-85°C |
| Load current | 40mA | Axis maxium load | Radial 50N Radial 10N |
| Frequency response | 300k Hz | Operating Humidity | 30-85 % No condensation |
| Output signal | AB phase, ABZ in Thephase | Cable | 1M |
| Supply voltage | DC 5-26V | Anti-shock | 10HZ to2000HZ, 10G |
| Starting torque | < 0.05Nm | Impact resistance | 50G/11ms |
| Circuit characteristics | voltage, current, push-pull, long-line drive output, open collector | speed | 10m/s |
| Degree of protection | IP51 | weight | 500g |

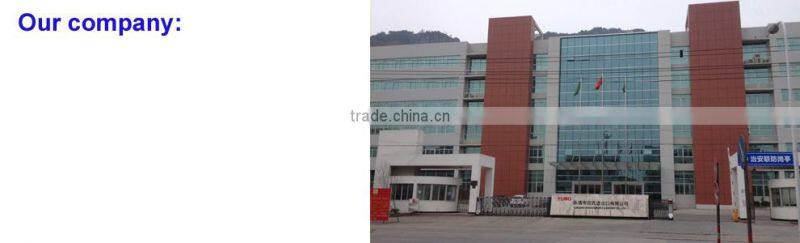

YUEQING YUMO ELECTRIC CO.,LTD
