IHA1045 100mm 45mm motor price Elevator Machine encoder hollow shaft incremental motor with encoder
YUEQING YUMO ELECTRIC CO.,LTD High-precision technology is widely used in the production of a motor with encoder, environmental requirements under strict conditions, subtle differences are obvious, motor with encoder adapted to detect the angle and position of places, such as machinery, conveying equipment, elevators and servo motors etc.
Encoder (encoder) is the signal (such as bit-stream), or data compiled, converted to be used to signal in the form of communications, transport and storage equipment. The angular displacement encoder or linear displacement into electrical signals, the former is called a code wheel, the latter known yardstick. The encoder according to readout mode can be divided into contact and non-contact two; according to the working principle can be divided into incremental encoder and absolute categories. Incremental encoder is to displacement into periodic electrical signal, then change the electrical signals into counting pulses, represents the magnitude of displacement by the number of pulses. Absolute encoders determine each position corresponds to a digital code, so it shows just the start and end values of the measured position, but not to the middle of the process measurement.
VERSION OF TYPE SERIES
1 |
I(Incremental encoder) |
A(Absolute encoder) |
||||
2 |
S(Solid shaft) |
H(Hollow shaft) |
C(Cone shaft) |
N(No shaft) |
||
|
3
|
C(Common type) |
H(Shock resistance type) |
M(Manual type) |
F(Flameproof type) |
||
T(Wide working temperature range) |
A(Through-hole hollow shaft type) |
|||||
L(Flange adapters type) |
R(High response frequency) |
N(Synchronous flange type) |
||||
W(Sine ware type) |
S(Airtight type) |
U(With UVW phase type) |
||||
ORDERING CODER
ISC 38 06 401 G 1024 BZ 1 --- 5 L
1 2 3 4 5 6 7 8 9 10
1 |
ISC: Type series |
2 |
38: housing diameter φ38mm |
3 |
6: Shaft diameter φ6mm |
|||||||
4 |
401: Sequence number |
5 |
C: Plug radial |
H: Plug axial |
G: Cable axial |
E: Cable axial |
J: Rectangle plug radial |
T: Rectangle plug axial |
||||
6 |
1024: Number of pulses |
|||||||||||
|
7 Output signals |
A: A phase |
AL: A phase and Z phase |
AZ: A phase and Z phase |
|||||||||
B: A,B phase |
BL: A,B phase and Z phase |
BZ: A,B phase and Z phase |
||||||||||
8 |
Width of Z phase (Tz) |
No number: No demand about Z phase; 1:TZ-1T; 2:TZ-1/2T; 3:Tz=1/4T |
||||||||||
9 |
Supply voltage |
5:5V DC |
5-12: 5-12V DC |
12-24: 12-24V DC |
||||||||
|
10 Output circuit |
C: Open collector NPN |
F: Push pull |
E: Voltage |
L: Line driver AM26LS31 |
||||||||
H: Line driver MC3487 |
D: Line driver SN75113 |
T: Line driver 26ET31B |
||||||||||

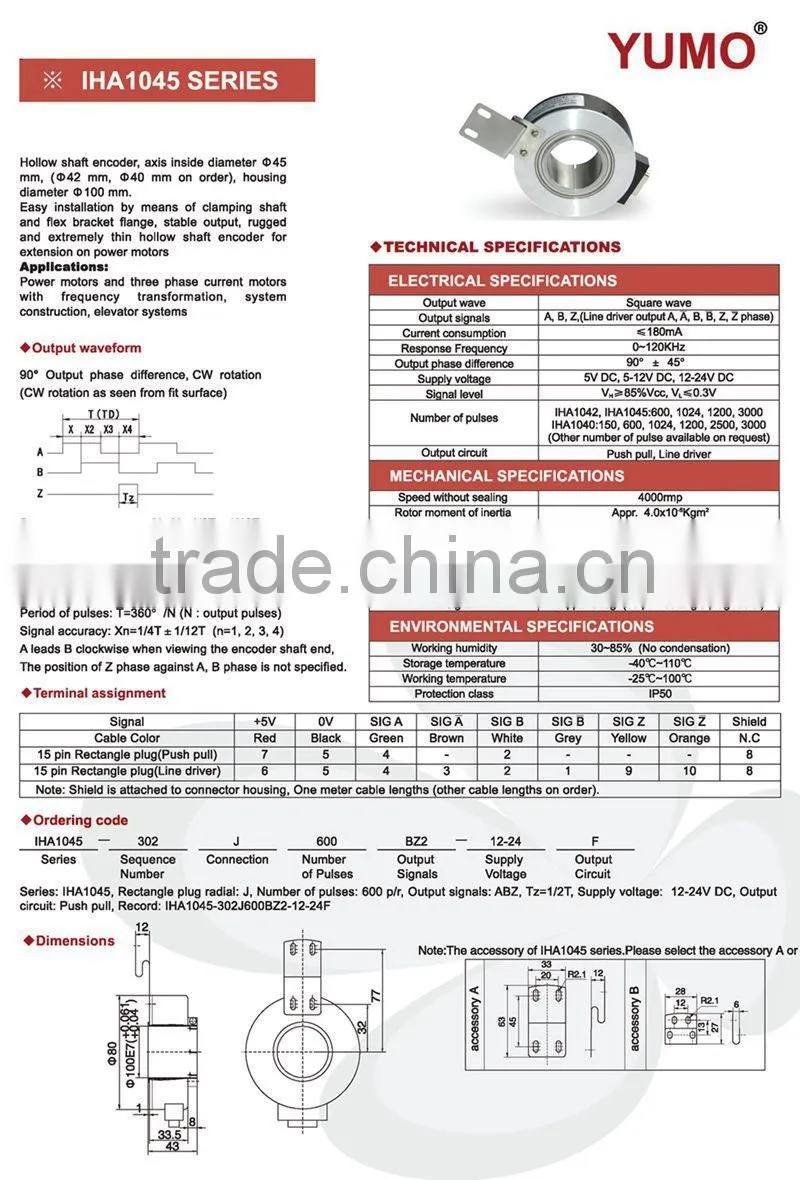

IHA1045 products photo:
optica IHA1045 100mm 45mm motor price Elevator Machine encoder hollow shaft incremental motor with encoder IHA1045 100mm 45mm motor price Elevator Machine encoder hollow shaft incremental motor with encoder IHA1045 100mm 45mm motor price Elevator Machine encoder hollow shaft incremental motor with encoder IHA1045 100mm 45mm motor price Elevator Machine encoder hollow shaft incremental motor with encoder
motor with encoder | motor with encoder price | incremental type motor with encoder | motor with encoder switch | incremental motor with encoder | usb motor with encoder | e6b2 cwz6c motor with encoder e6b2 | hollow shaft motor with encoder | waterproof motor with encoder switch | wheel motor with encoder | motor with encoder | motor with encoder | absolute motor with encoder | motor with encoder yumo | encoder rotary | rotary optical encoder | japan motor with encoder | mini motor with encoder | magnetic motor with encoder | motor with encoder parts | volume motor with encoder | motorized motor with encoder | optical motor with encoder | optic IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder incremental motor with encoder IHU4808 dc motor mini disks price Optical IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder hollow shaft incremental motor with encoder IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder hollow shaft incremental motor with encoder IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder hollow shaft incremental motor with encoder IHU4808 dc motor mini disks price Optical kit Sewing Machine encoder hollow shaft incremental motor with encoder circuit | hollow shaft incremental motor with encoder | rotary position encoders | 12mm motor with encoder | incremental motor with encoders | encoder/ motor with encoder | elevator motor with encoder | optical motor with encoders | optical motor with encoder switch | absolute motor with encoders | incremental 10mm motor with encoder | incremental type motor with encoder | incremental motor with encoder | incremental optical motor with encoders | hollow shaft incremental motor with encoder | incremental motor with encoders | incremental 10mm motor with encoder | incremental type motor with encoder | incremental motor with encoder | incremental optical motor with encoders | hollow shaft incremental motor with encoder | incremental motor with encoders | incremental 10mm motor with encoder |
1. Reply inquiry in 24 hours.
2. Please kindly inform us which items you are interested & the reasonable price will be providedyou upon receipt of your new inquiry ASAP.
3. Answer your question detailed.
4. Solved the problem with you during using our products.
5. Samples will be offered to you for our future cooperation.
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Our mail is sales(at)yingselectric.com Skype: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
