OEM 20mm 1024 pulse 15pin yueqing manufacturing company rotary encoder hollow

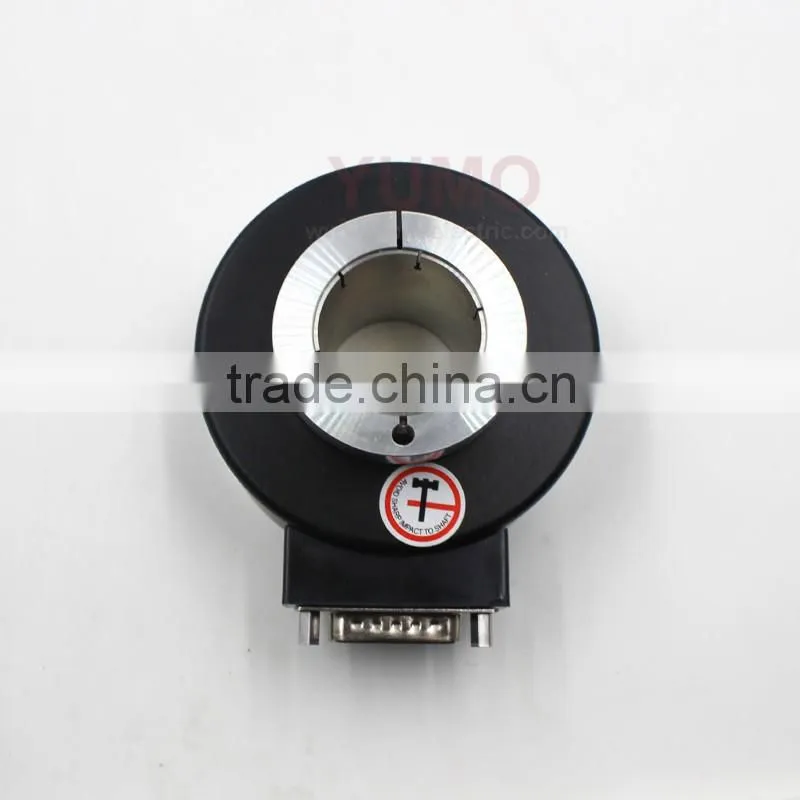

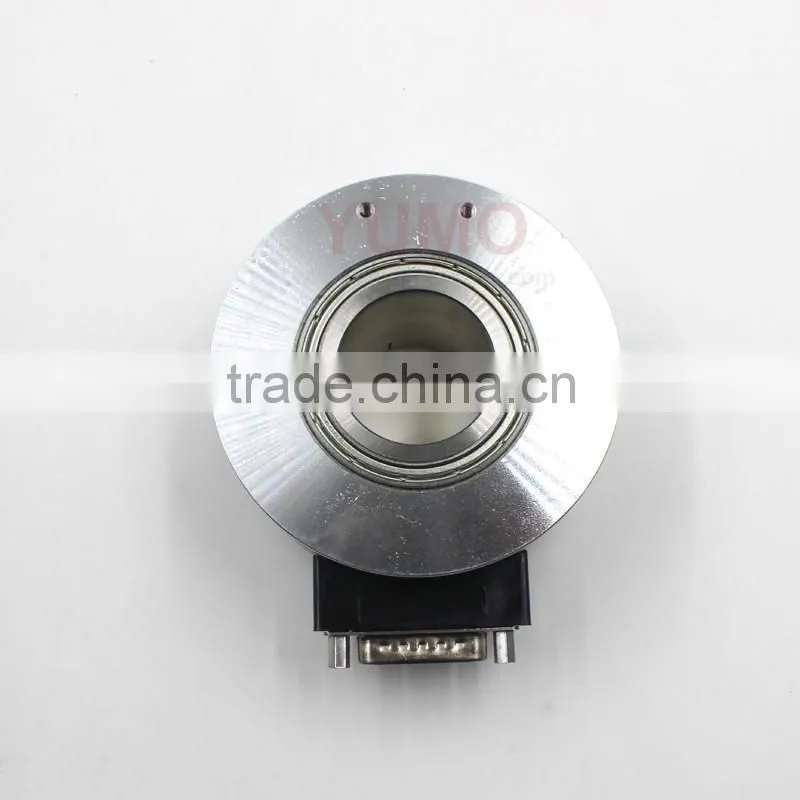

IHA8030 Hollow Shaft Encoder
Hollow shaft encoder, axis inside diameter30mm,
(28mm, 6.25mm, on order), housing diameter 80mm.

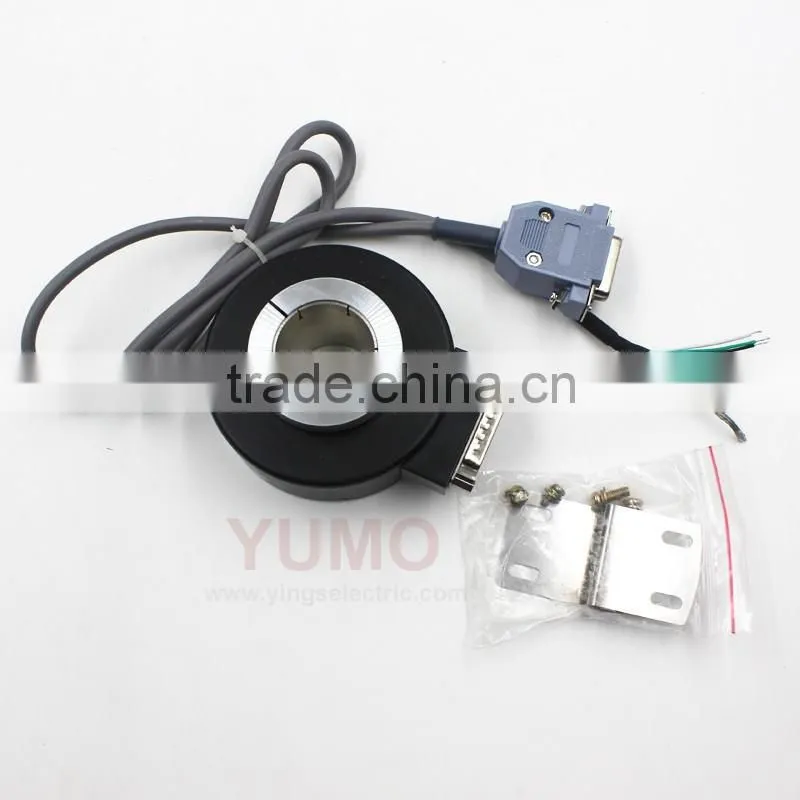

With flex bracket flange, easy for installing, light weight, stable output.
Rugged and extremely thin hollow shaft encoder for extension on power motors.
Applications:
Power motors and three phase current motors with frequency transformation, system construction, elevator systems.
Output waveform:
90 output phase difference, CW rotation( CW rotation as seen from fit surface)
Square-wave accuracy:
Pitch error of peridor: ±0.01T
Pitch error of phase position: ≤1/18T
Z phase of pulses: T=360°/N (N: output pilses)
Signal accuracy: Xn=1/4T±1/12T(n=1,2,3,4)
A leads B clockwise when viewing the encoder shaft end.
The position of Z phase against A,B phase is not specified
ELECTRICAL SPECIATIONS |
|
Output wave |
Square wave |
output signais |
A,B,Z(Line driver output A,A,B,B,Z,Zphase) |
current consumption |
≤180mA |
output phase difference |
90±45 |
supply voltage |
5V DC,5-12V DC,12-24V DC |
signal level |
V≥85%Vcc,V≤0.3V |
Number of pluese |
240,512,600,1024,1200,2000,2500 |
output circuit |
push pull,line driver, voltage |
MECHNICAL SPECIFICATIONS |
|
Speed without sealing |
4000rmp |
Rotor moment of inertia |
Appr.4.0×10Kgm3 |
Starting torque without sealing |
≤5.0×10-3Nm(+25) |
Macdimum loag permatted on shaft |
Radial 40N, Axial 30N |
Shock resistance |
980m/s 6ms,2times each on XYZ |
Vibration proof |
50m/s2,10-200Hz,2 hours each on XYZ |
Working life |
MTBF≥50000h(+25,2000rmp) |
Weight |
Appr,370g(15 pin rectangle plug radial) |
ENVIRONMENTAL SPECIFICATIONS |
|
Working humidity |
30-85%(No condensation) |
Storage temperature |
-40-110 |
Working temperature |
-25-100 |
Protection class |
IP50 |
| Terminal assignment | ||||||||||
| Signal | +5V | 0V | SIGA | SIGA | SIGB | SIGB | SIGZ | SIGZ | Shield | |
| Cable Color | Red | Black | Green | Brown | White | Grey | Yellow | Orange | N.C | |
|

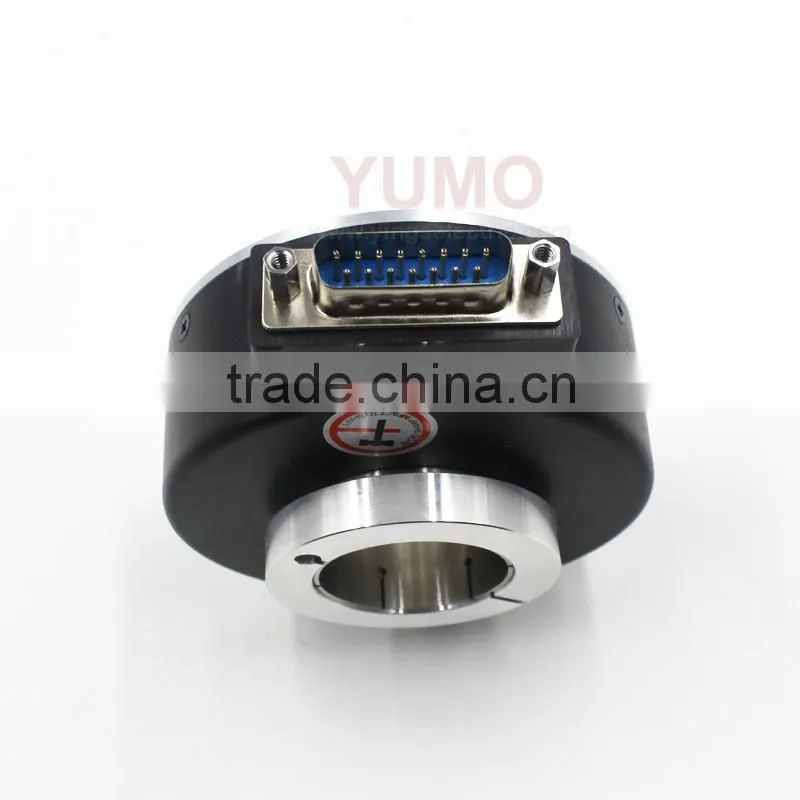

15 pin Rectangle plug (Push pull) |
7 | 5 | 4 | - | 2 | - | - | - | 8 | |
|
16 pin Rectangle plug (Line drive) |
6 | 5 | 4 | 4 | 2 | 1 | 9 | 10 | 8 | |
|
Note:Shield is attached to connector housing. One meter cable lengths( Other cable lengths on order) |
||||||||||
| Ordering code | ||||||||||
| IHA8030 | 302 | J | 1024 | BZ2 | 12--24 | F | ||||
| Series | Sequence | Connection | Number | Output | supply voltage | output | ||||
| Number | of pulses | signals | circuit | |||||||
Series:IHA8030, Rectangle plug radial: J, Number of pluses:1024 p/r.output signals: ABZ. Tz=1/2T, Supply voltage:12-24V DC,

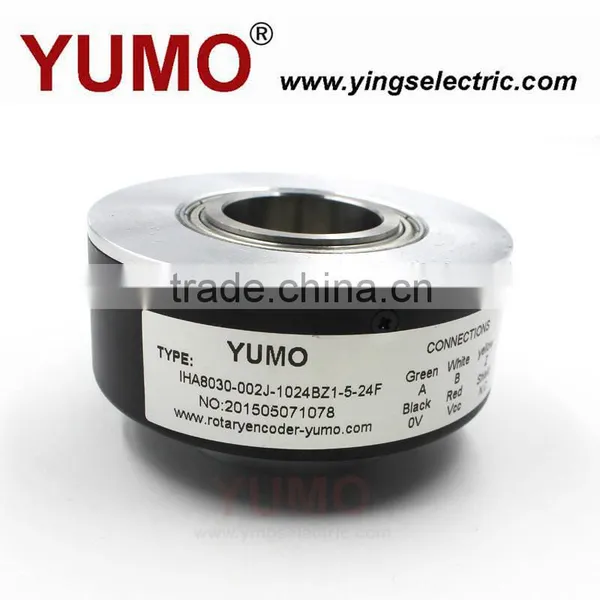

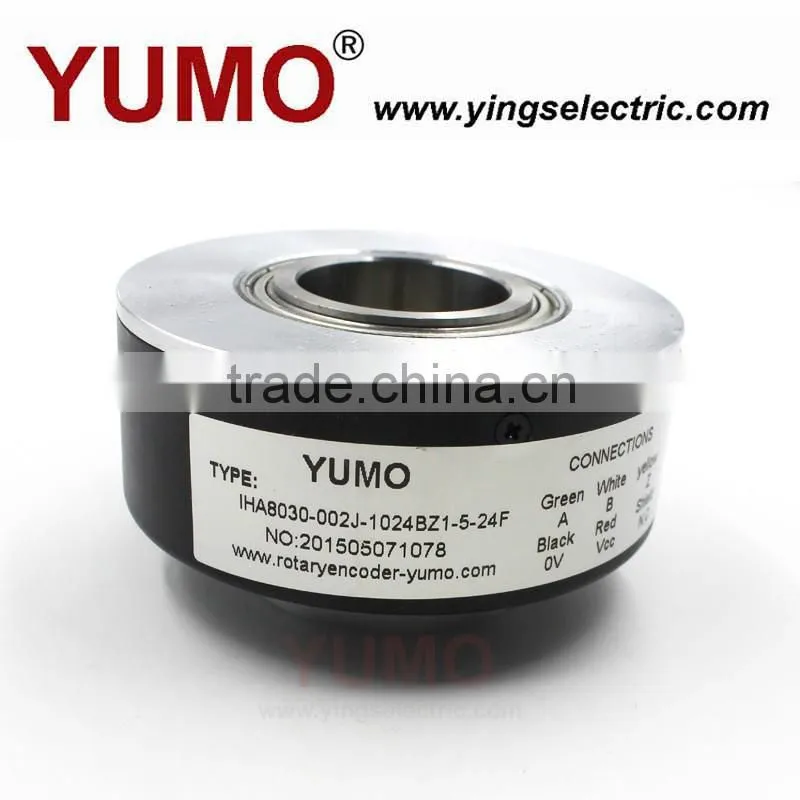

YUMO IHA8030-002J-1024BZ1-5-24F ppr digital angle sensor YUMO IHA8030-002J-1024BZ1-5-24F ppr digital angle sensor YUMO IHA8030-002J-1024BZ1-5-24F ppr digital angle sensor YUMO IHA8030-002J-1024BZ1-5-24F ppr digital angle sensor YUMO IHA8030-002J-1024BZ1-5-24F ppr digital angle sensor YUMO IHA8030-002J-1024BZ1-5-24F ppr digital angle sensor YUMO IHA8030-002J-1024BZ1-5-
encoder rotary encoder linear encoder chip card encoder absolute encoder rotary encoder price video encoder h 264 video encoder hardware hdmi to ip encoder encoder disk motor with encoder absolute rotary encoder optic encoder hdmi rtsp encoder encoder coupling incremental rotary encoder optical rotary encoder disks magnetic stripe card encoder magnetic card encoder h.264 hardware encoder
encoder card rep encoder incremental encoder hd encoder encoder modulator encoder strip hdmi iptv encoder encoder motor encoder h.264 encoder rotary encoder knob encoder wheel
encoder hdmi encoder h.264 dvb-t encoder modulator magnetic linear encoder encoder price hollow shaft encoder digital tv headend equipment catv encodermotor encoder
encoder disc rotary encoder yumo stepper motor with encoder magnetic encoder geared motor with encoder 8 in 1 encoder usb rotary encoder mini rotary encoder encoder sensor
12v 24v encoder gear motor ip encoder gear motor encoder car key encoder shaft encoder rotary encoder switch quadrature encoder msr206 encoder software hdmi encoder h.264 to ethernet cabledigital encoder motor optical encoder elevator encoder optical encoder disk servo motor encoder mpeg2 encoder magnetic card hico loco encoder
hollow shaft incremental rotary encoder video ip encoder decoder rotary encoder coupling 24v motor encoder h 264 encoder card hollow shaft rotary encoder nfc encoder hd sdi encoder
encoder knob servo motor encoder cable rotary encoder ip audio encoder hdmi to dvb-t encoder modulator hp encoder strip dual shaft encoder digital display encoder
h.265 hevc encoder mini encoder flexible coupling spring coupling encoder coupling wheel encoder
24F ppr digital angle sensor
Q:How to order our product ?
A:1).Please tell us the model and quantity and other request you need.
2).We make the PI for you.
3).After you confirm the PI, we arrange the order for you after receiving your payment.
4).After the goods finished, we send the goods out to you and tell you the tracking number.
5).We will track your goods until you receive the goods.
Q: What's your warranty ?
A: One years
Q: What's your contact information:
A: Our address: Liushi town, Zhejiang province, China. Our mail is sales(at)yingselectric.com Skype: benjaminying
Q: What's your shipment method?
A: We ship by Express, by air, by sea, by train. Normally we checked and compare, then provide customer the most proper shipment method.
Q: What's about MOQ?
A: First order MOQ=1pcs
Q: If i want to release order, what's the payment method you accept ?
A: We accept T/T, Paypal, Western union, L/C.
Q: If i want to release order, what's the process?
A: Thanks. You can send inquiry to us by alibaba, or send us by email, we will reply within 24hrs.
Thank you & Now pls send your kindly inquiry ! ^!^
YUEQING YUMO ELECTRIC CO.,LTD
ADD: NO.126 LIUYANG ROAD ,ZHAOYANG INDUSTRY ZONE, LIUSHI TOWN,
YUEQING CITY, ZHEJIANG PROVINCE, 325604 CHINA
TEL:0086-577-62791815 Mobile:0086-13757779011
Sky-pe:benjaminying TradeManager:yncync
How to contact us:
Send your inquiry detail in the below for free samples, click "send "now.
