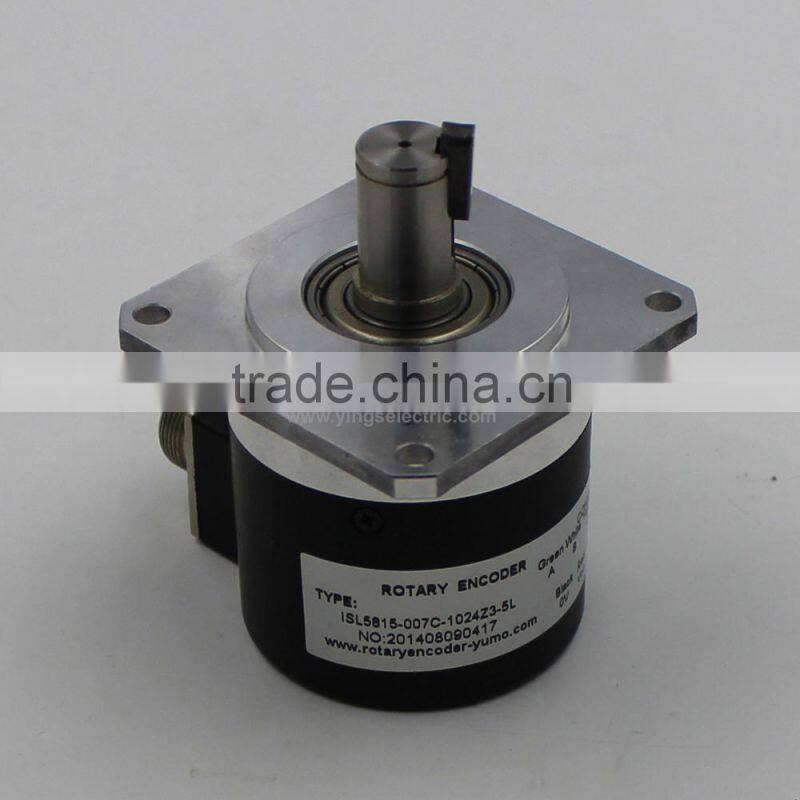

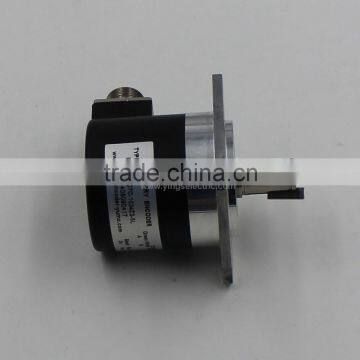

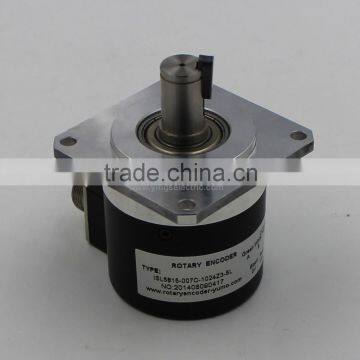

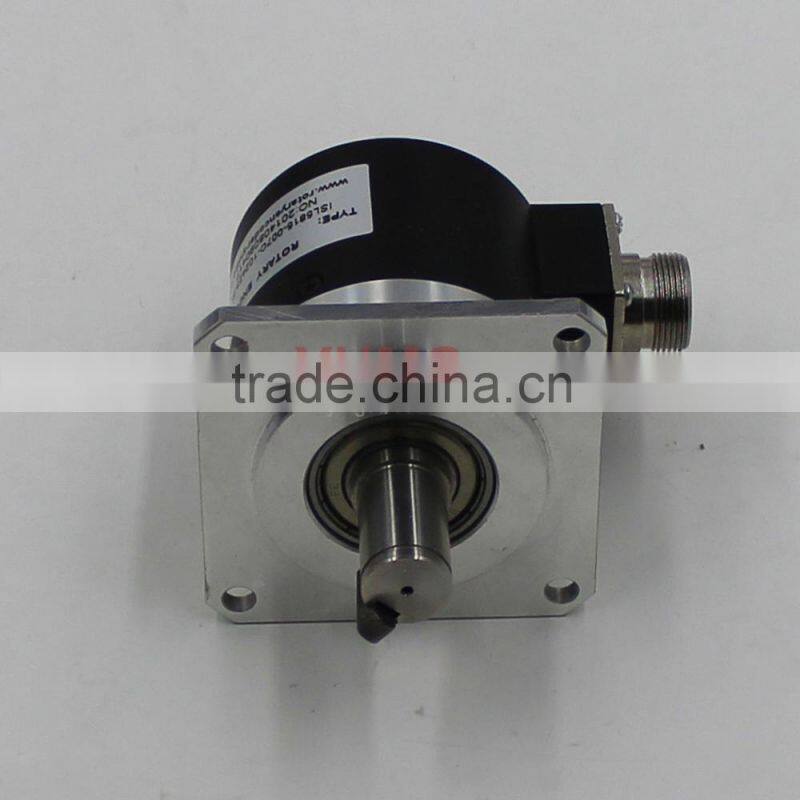

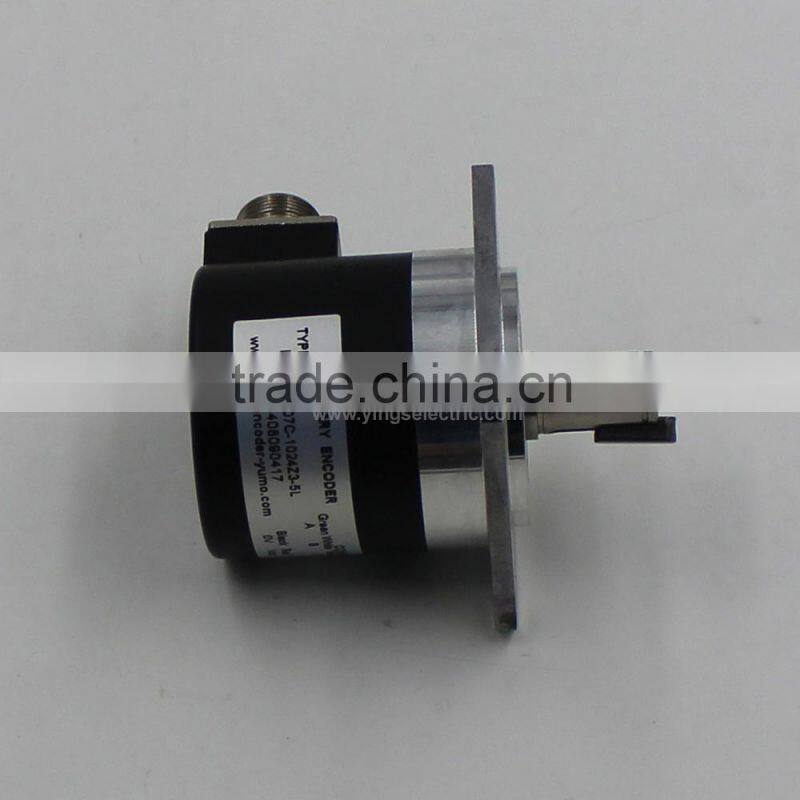

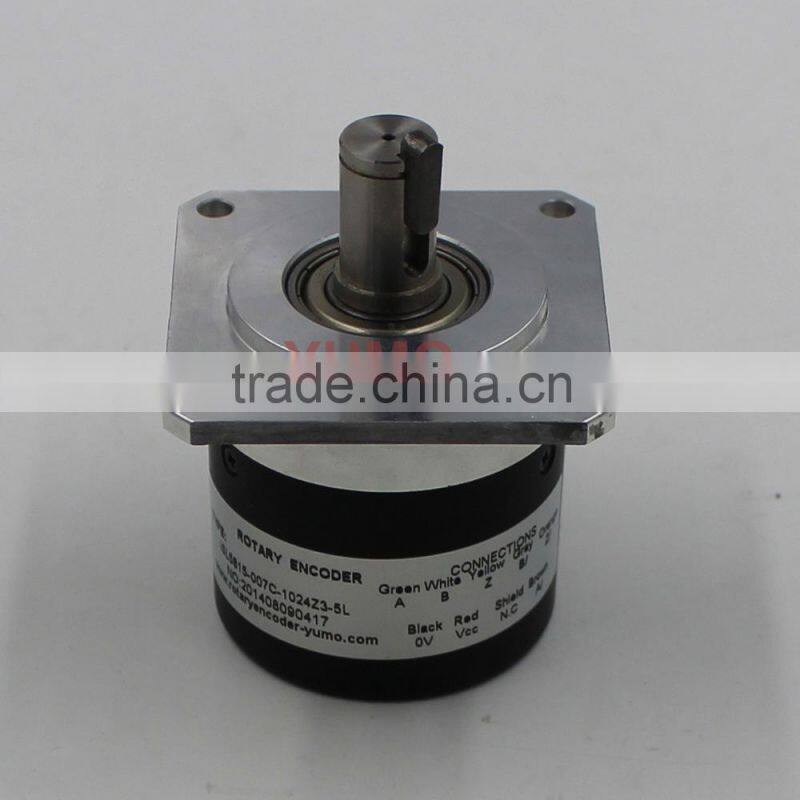

YUMO ISL5815 1024PPR 5V 12V 24VDC Flange Adapters Encoders

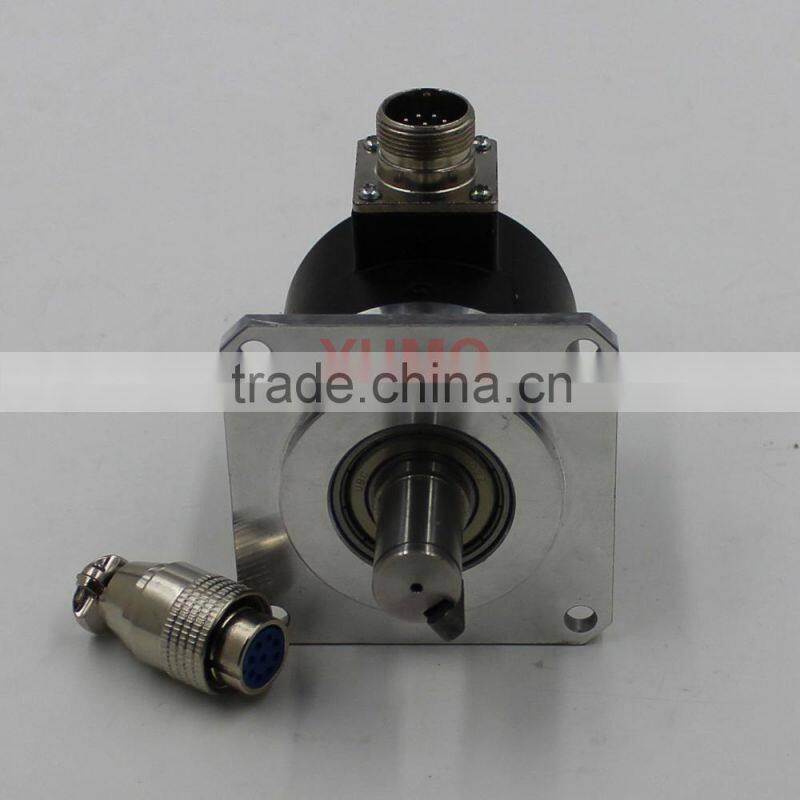

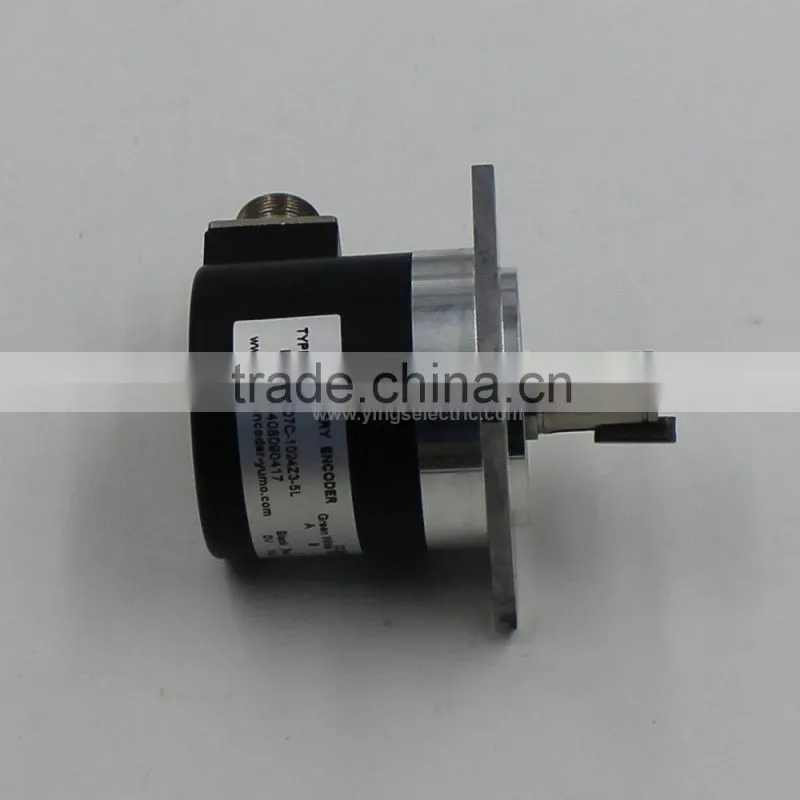

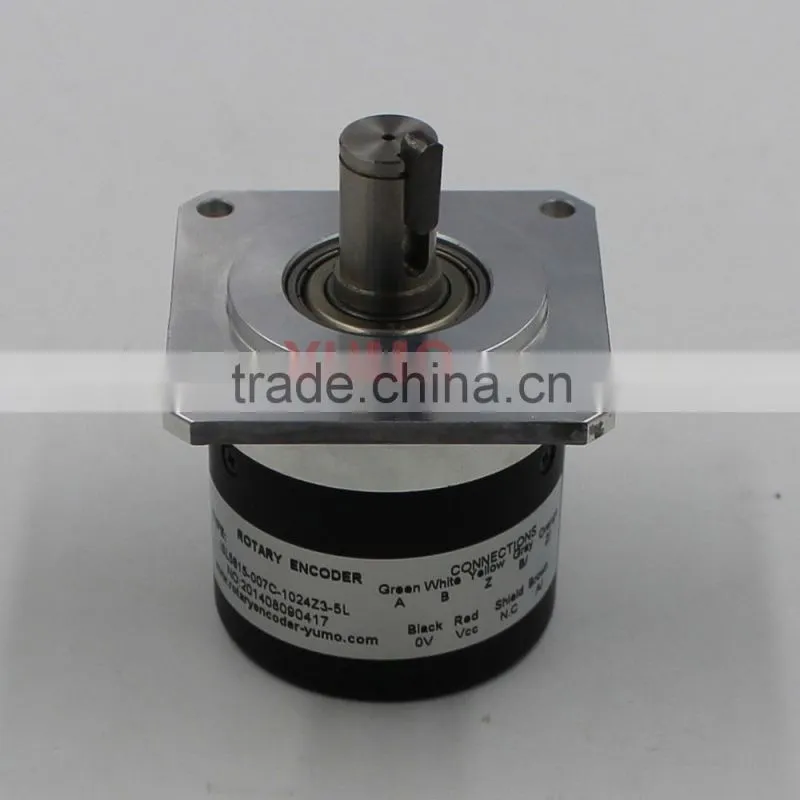

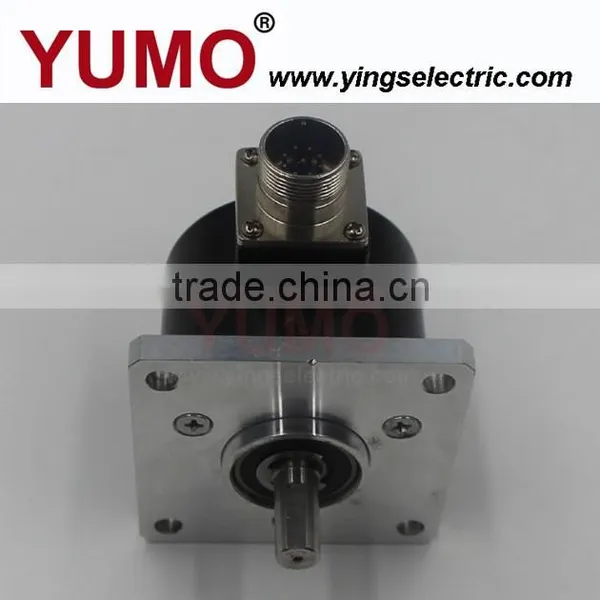

ISL5815 Shaft Encoder with Flange Adapter (Flange Encoder)
Shaft Encoder with Flange Adapter (ISL5815)
Product Description
Shaft diameter 15 mm ¦, housing diameter 58 mm ¦, flange diameter 66mmx66mm.
Flange adapters, long working life, high shock and vibration, good anti-interference.
Connector:
Cable axial, Cable radial, Plug axial, Plug radial.
Applications:
Crosstable positioning, positioning at computer numerical control tooling machinery.
| ELECTRICAL SPECIFICATIONS | |
| Output wave: | Square wave |
| Output signals | A, B, Z, (Line driver output A, A, B, B, Z, Z phase) |
| Current consumption: | ≤180mA |
| Response Frequency: | 0~120KHz |
| Output phase difference: | 90°±45° |
| Supply voltage | 5V DC, 5-12V DC, 12-24V DC |
| Signal leve | Vh≥85%Vcc, Vh≤0.3V |
| Number of pulses: | 50, 60, 100, 120, 125, 150, 180, 200, 250, 256, 300, 360, 400, 500, 512, 600, 900, 1000, 1024, 1200, 1800, 2000, 2048, 2400, 2500, 3000, 3600(Other number of pulse available on request) |
| Output circuit: | Open collector NPN, Push pull, Line driver, Voltage |
| MECHANICAL SPECIFICATIONS | |
| Speed without sealing | 6000rmp |
| Rotor moment of inertia | Appraisal 18.5x10-6Kgm2 |
| Starting torque without sealing: | d2.0x 10-2Nm (+25*C) |
| Maximum load permitted on shaft: | Radial: 85N, Axial: 50N |
| Shock resistance: | 980m/s2, 6ms, 2 times each on XYZ |
| Vibration proof: | 50m/s2, 10~200Hz, 2 hours each on XYZ |
| Working life: | MTBFe30000h (+25*C, 2000rpm) |
| Weight: | Appraisal 460g (9 pin plug radial) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Working humidity: | 30~85% (No condensation) |
| Storage temperature: | (-40℃~100℃) |
| Working temperature: | (-25℃~85℃) |
| Protection class: IP54 | IP54 |
YUMO ISL5810 200PPR ip67 optical shaft rotary encoder pulse price incremental Flange Adapters rotary Encoders YUMO ISL5810 200PPR ip67 optical shaft rotary encoder pulse price incremental Flange Adapters rotary Encoders YUMO ISL5810 200PPR ip67 optical shaft rotary encoder pulse price incremental Flange Adapters rotary Encoders
YUMO ISL5810 200PPR 5V 12V 24VDC encoder rotary ip67 Flange Adapters rotary Encoders YUMO ISL5810 200PPR 5V 12V 24VDC encoder rotary ip67 Flange Adapters rotary Encoders YUMO ISL5810 200PPR 5V 12V 24VDC encoder rotary ip67 Flange Adapters rotary Encoders
So lid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder Solid shaft incremental rotary encoder
