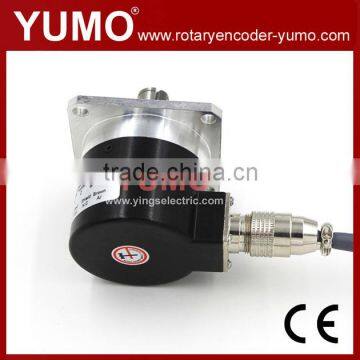

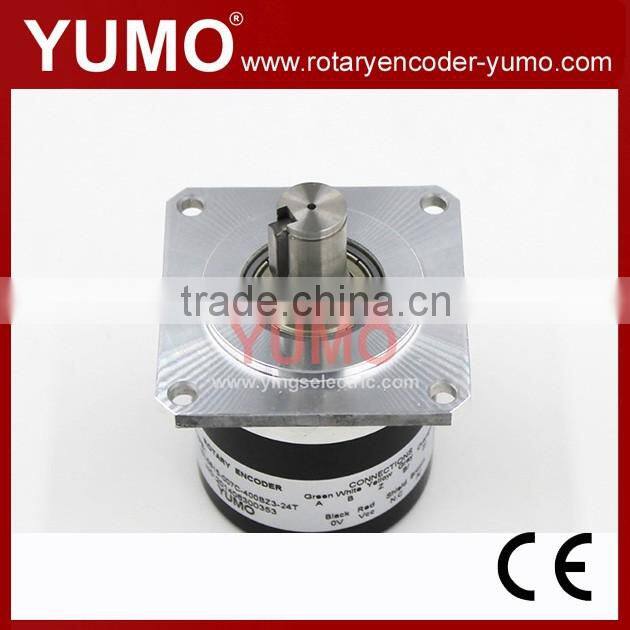

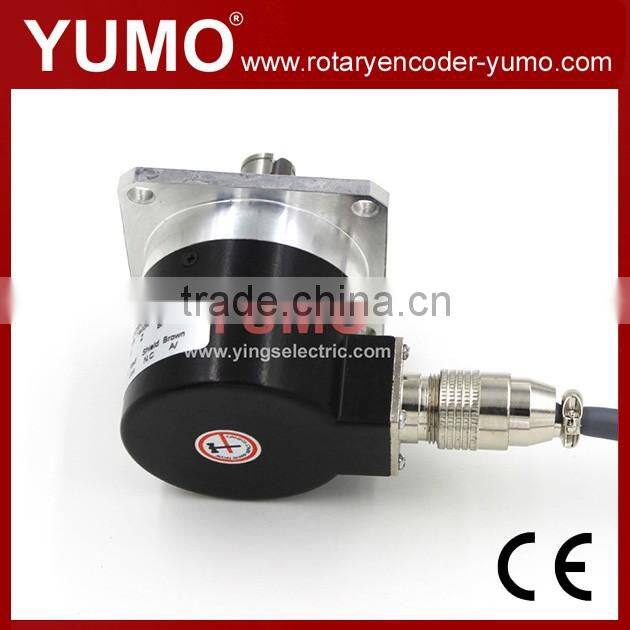

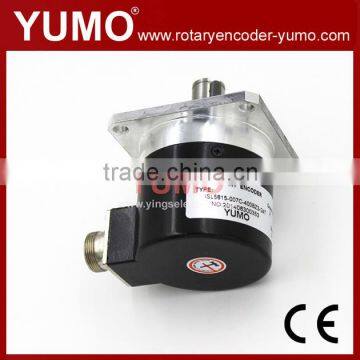

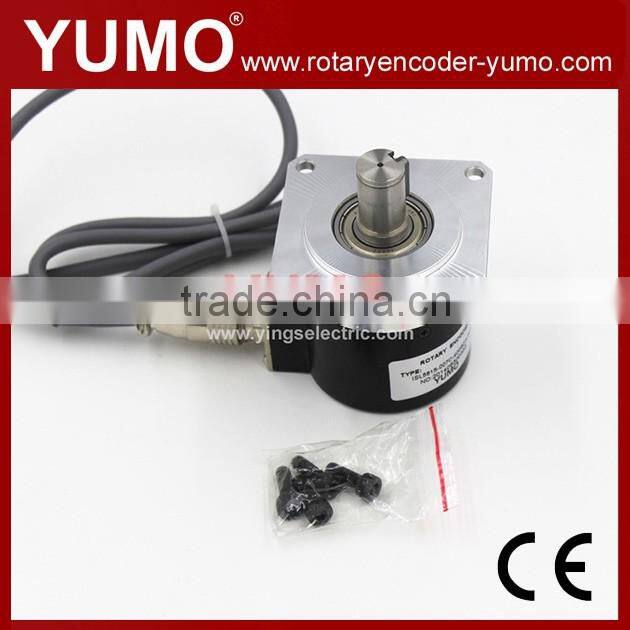

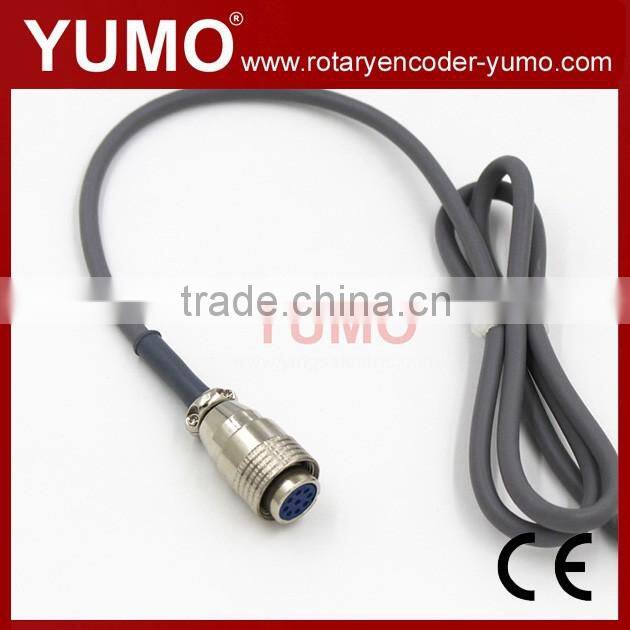

ISL5815 15mm optical shaft rotary encoder pulse price incremental Flange Adapters encoder
VERSION OF TYPE SERIES:
1 |
I(Incremental encoder) |
A(Absolute encoder) |
||||
2 |
S(Solid shaft) |
H(Hollow shaft) |
C(Cone shaft) |
N(No shaft) |
||
|
3
|
C(Common type) |
H(Shock resistance type) |
M(Manual type) |
F(Flameproof type) |
||
T(Wide working temperature range) |
A(Through-hole hollow shaft type) |
|||||
L(Flange adapters type) |
R(High response frequency) |
N(Synchronous flange type) |
||||
W(Sine ware type) |
S(Airtight type) |
U(With UVW phase type) |
||||
1 |
ISC: Type series |
2 |
38: housing diameter φ38mm |
3 |
6: Shaft diameter φ6mm |
|||||||
4 |
401: Sequence number |
5 |
C: Plug radial |
H: Plug axial |
G: Cable axial |
E: Cable axial |
J: Rectangle plug radial |
T: Rectangle plug axial |
||||
|
6 |
1024: Number of pulses |
|||||||||||
|
7 Output signals |
A: A phase |
AL: A phase and Z phase |
AZ: A phase and Z phase |
|||||||||
B: A,B phase |
BL: A,B phase and Z phase |
BZ: A,B phase and Z phase |
||||||||||
8 |
Width of Z phase (Tz) |
No number: No demand about Z phase; 1:TZ-1T; 2:TZ-1/2T; 3:Tz=1/4T |
||||||||||
9 |
Supply voltage |
5:5V DC |
5-12: 5-12V DC |
12-24: 12-24V DC |
||||||||
|
10 Output circuit |
C: Open collector NPN |
F: Push pull |
E: Voltage |
L: Line driver AM26LS31 |
||||||||
H: Line driver MC3487 |
D: Line driver SN75113 |
T: Line driver 26ET31B |
||||||||||
TECHNICAL SPECIFICATIONS
| ELECTRICAL SPECIFICATIONS | |
| Output wave | Square wave |
| Output signals | A,B,Z,(Line driver output A,A(_),B,B(_),Z,Z(_) phase |
| Current consumption | ≤180mA |
| Response Frequency | 0~120KHz |
| Output phase difference | 90º±45º |
| Supply voltage | 5V DC,5-12VCD,12-24VDC |
| Signal level | VH≥85% Vcc, VL.≤0.3V |
| Number of pulses |
50,60,100,120,125,150,180,200,250,256, 300,360,400,500,512,600,900,1000,1024,1200, 1800,2000,2048,2400,2500,3000,3600 (Other number of pulse available on request) |
| Output circuit | Open collector NPN, Push pull, Line driver, Voltage |
| MECHANICAL SPECIFICATIONS | |
| Speed without sealing | 6000rmp |
| Rotor moment of inertia | Appr.1.0×10-5kgm² |
| Starting torque without sealing | ≤2.0×10-2NM (+25℃) |
| Maximum load permitted on shaft | Radial 85N Axial 50N |
| Shock resistance | 980m/s2,6ms,2 times each on XYZ |
| Vibration proof | 50M/S²,10~200Hz,2 hours each on XYZ |
| Working life | MTBF≥30000h(+25℃,2000rpm) |
| Weight | Appr.460g(9 pin plug radial) |
| ENVIRONMENTAL SPECIFICATIONS | |
| Working humidity | 30~85%(No condensation ) |
| Storage temperature | -40℃~100℃ |
| Working temperature | -25℃~85℃ |
| Protection class | IP54 |
