Specifications
machine cut steel plate1.pneumatic sheet cutting machine
2.certificate ISO & CE
3.Easy to operate

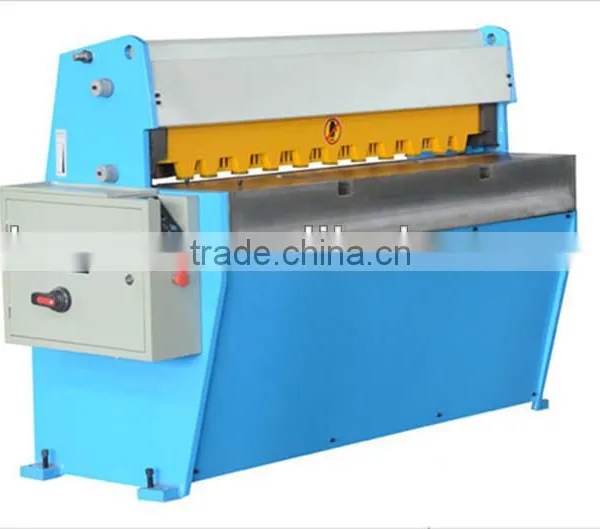

ⅠFEATURE OF QH11D Presion Shearing Machine
1.Fabricated steel structure, with compact,construction,light weight and good rigidity stability
2. Integrated hydraulic transmission system, with good reliability
3.Back gauge use intelligent digital display device, shear quantity can be automatic counted,
distance of back gauge can be set according to requirements of customers

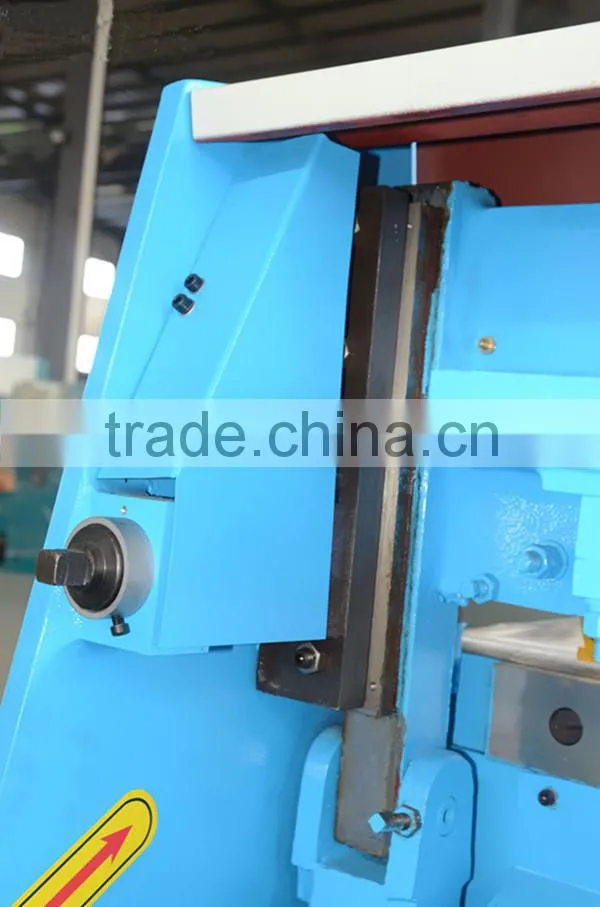

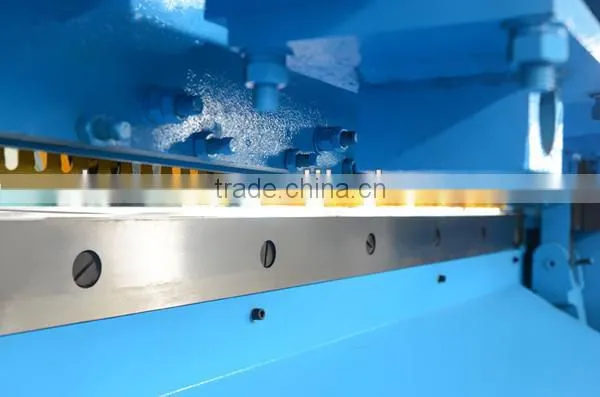

4.The moving orbit of the blade beams inclines forwards to the supporting surface of the bottom
blade, so you can gain fine shear surface. Jacking screws of the top blade provide a fine adjustment
to minimize “rag” or “burring” on the sheared edge of the material

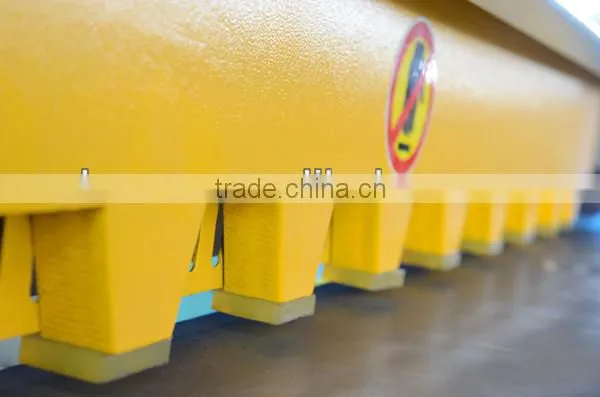

5.The hold-down assembly adopts the butterfly springs. There are antiskid heel block on the hold-down device of hold-down plate. The pressure is bigger, but it doesn’t damage the sheet-metal surface.
6.The machine is driven by a self-contained, totally enclosed gearbox mounted directly on the main shaft. Its construction is compact
and the gear is well lubricated with low noise and long life.
7.The machine hasn’t the clutch and the flywheel. It shears the sheet-metal directly driven by the magnetic brake motor. This reduces the idle time of the motor and saves the energy.
8.The front and back gauges are provided with the scale plate displaying the scale.
The back gauge may be easily adjusted in synchronism.
Ⅱ Export standard configuration
No. |
Item |
Remark |
1 |
Motor |
Siemens(Germany) |
2 |
Gear Pump |
Bosch Rexroth(Germany) |
3 |
CNC |
ZR41 or DAC310 or DAC360 |
4 |
Electric parts |
Schneider(France) or Siemens (Germany) |
5 |
Hydraulic system |
Rexroth(Germany) or Omega(USA) |
6 |
Sealing rings |
Valqua CO.(Japan) |
Ⅲ QH11D Presion Shearing Machine technical data
No. |
Specification |
Value |
Unit |
|
1 |
Model |
QH11D-3×1300 |
set |
|
2 |
Cutting thickness |
3 |
mm |
|
3 |
Cutting width |
1300 |
mm |
|
4 |
Travel Times |
47 |
n/min |
|
5 |
Cutting angle |
1.5° |
° |
|
6 |
Distance of back gauge |
0-650 |
mm |
|
7 |
Motor |
5.5 |
kw |
|
|
8
|
Dimension
|
L |
1860 |
mm |
W |
2210 |
mm |
||
H |
1180 |
mm |
||
9 |
Weight |
1400 |
kg |
|
We can supply various specifications of Press Brake, Plate Shearing Machine & Rolling Machine, with or without CNC according to customers' requirements .
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment, Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.
Our products can be widely used in automobiles, ships, railway, aviation, metal works, electrical appliances, construction project, light industry and many other industries and fields.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
If u want to know more information about our products, plz feel free to contact us! Welcome to visit our company!
