Carbon Tandem Portable Hydraulic Rebar Bending Machine

Name: Carbon Tandem Portable Hydraulic Rebar Bending Machine
Brand: Huicheng
SKU: 133472971
Availability: InStock

US$ 25,320 - 25,320 MOQ: 1 Set

Key Specifications

Condition:

New

Place of Origin:

Shanghai, China

Brand Name:

Huicheng

Shanghai Hvcen Machinery Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Shanghai, China

Brand Name Huicheng

Model Number WF67K-1000T/6000

Machine Type Press Brake

Raw Material Sheet / Plate Rolling

Material / Metal Processed Stainless Steel

Power Hydraulic

Automation Automatic

Extra Services End Forming

Certification ISO 9001:2000

After-sales Service Provided Engineers available to service machinery overseas

Machine main configuration

1. Standard with Delem-DA52 numerical-control system

2.Bosch Rexroth of Germany's high-performance servo-hydraulic control system synchronization

3.Germany simultaneous detection of position feedback encoder with both side

4. back gauge with high-performance servo motor and ball screw

5. the deflection compensation with DNC system

6.standard with a set of mould

7.with front support arm

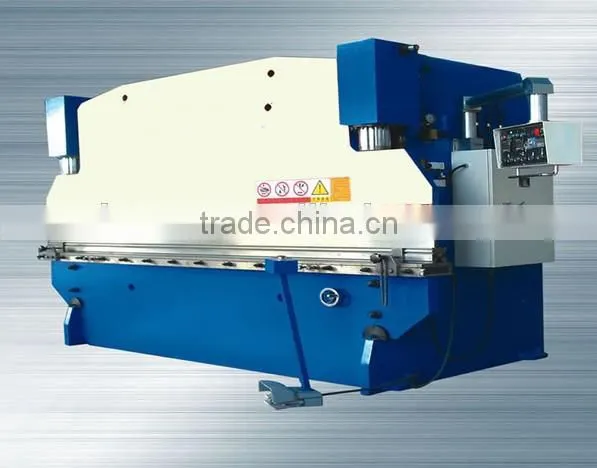

press brake WF67K-1000T/6000 with DA-52 controller specification

NO.	Name			Unit	Value
1.	Nominal force			KN	10000
2.	Bending length			mm	6000
3.	Distance between columns			mm	4800
4.	Slider strokes			mm	400
5.	Max opening height			mm	1000
6.	Throat depth			mm	600
10.	Main motor power			KW	55
11.	Slide speed		Quick down	mm/s	80
			Pressing	mm/s	6
			Quick back	mm/s	70
11.	Dimension (L×W×H)			mm	*620034506700*
12.	Machine weight			kg	90000
13	Machine accuracy	Slider repeat accuracy		mm	≤±0.02
14		Slider position accuracy		mm	≤±0.02
15		Back gauge repeat position accuracy		mm	≤±0.02
16.		Straightness of work piece		mm	0.3 / m
17		Bending angle deviation		′	<±50
18		Grating resolution		mm	0.005
