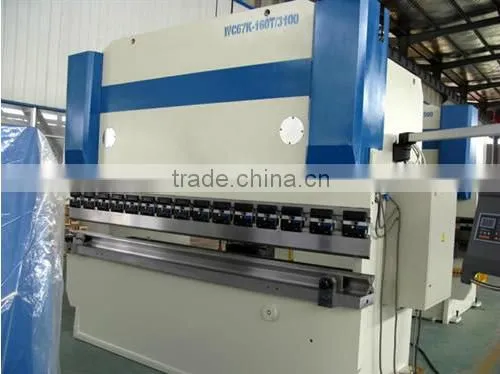

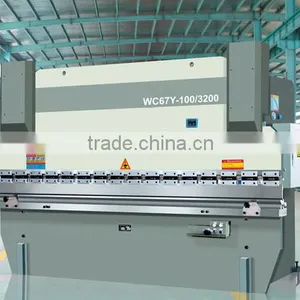

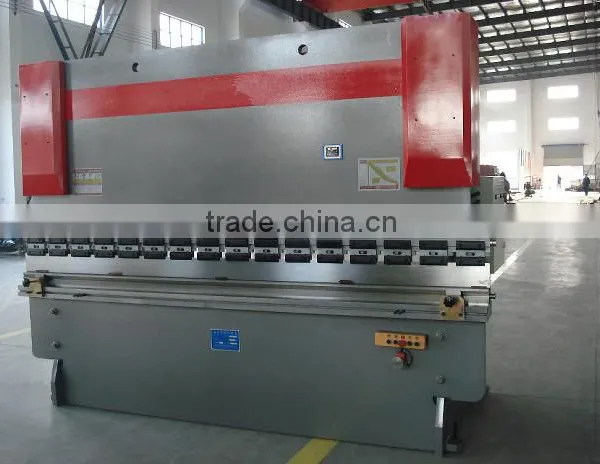

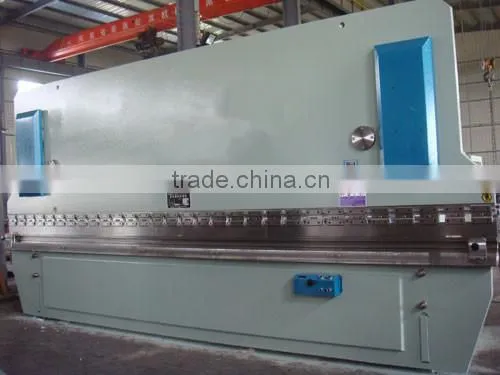

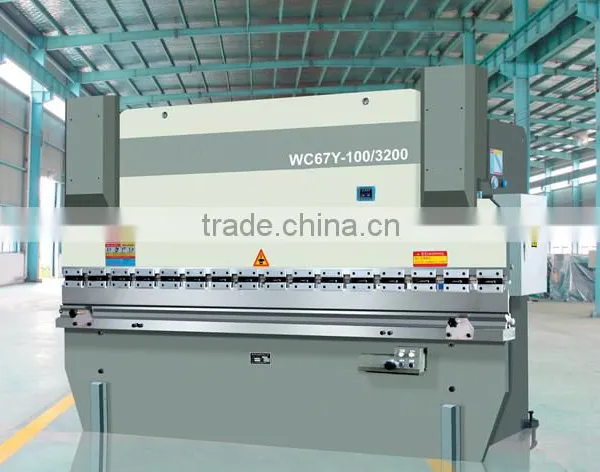

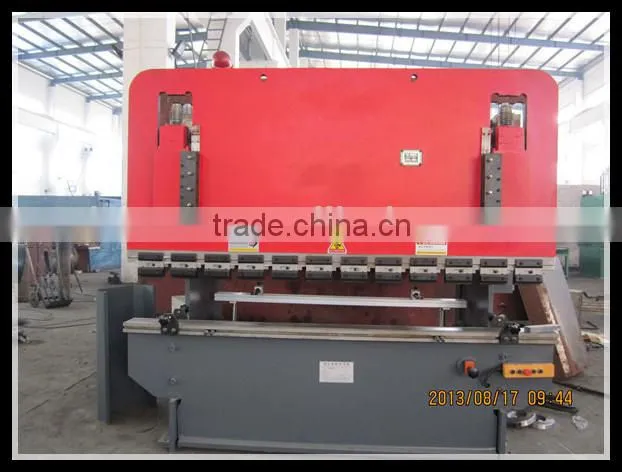

Hydraulic Section Bending Machine roll forming
Ⅰ Features:
1 The whole machine is in sheet plate welded structure, with internal stress
eliminated by vibration aging technology, high strength and good rigidity of machine.
2 Double hydraulic oil cylinder is applied for upper transmission,
provided with mechanical limit stopper and synchronous torsion bar,
typical of stable and reliable operation,as well as high precision.

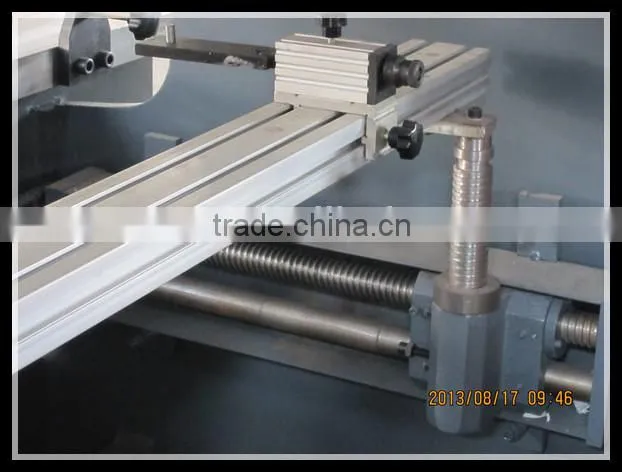

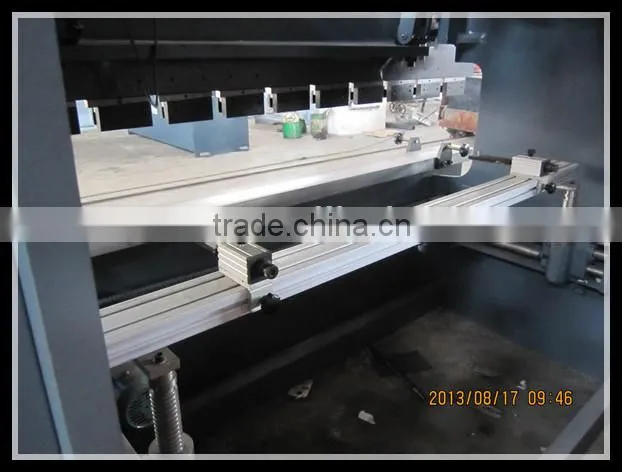

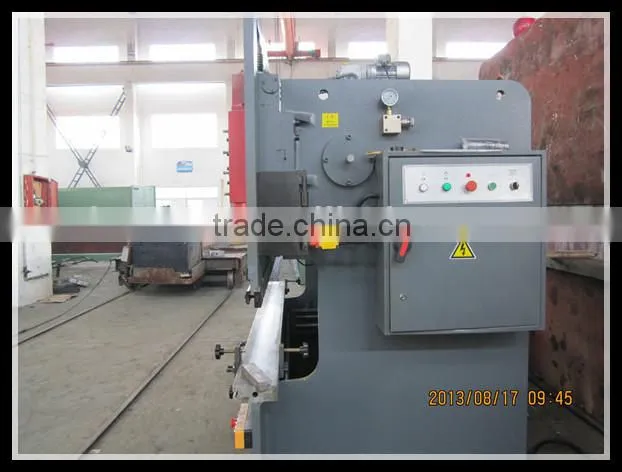

3 Electrical control and manual fine-
tuning mode are adopted for distance of rear stopper and stroke of gliding block,
and fitted with digital display device,easy and quick in use.

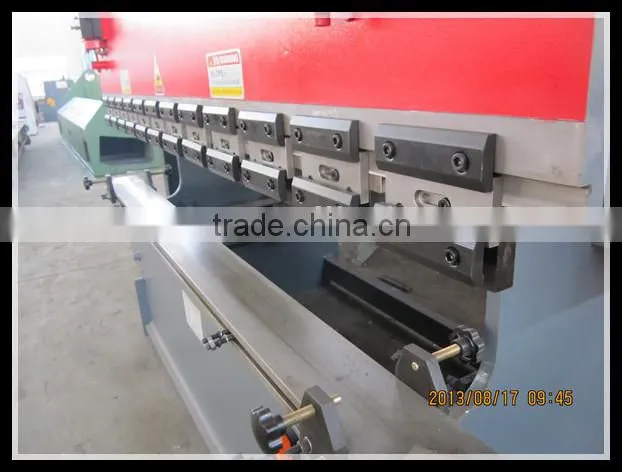

4 Upper die is fitted with deflection compensation device.
Ⅱ Main Technical Parameters:
| Specifications | Technical Parameters | Unit |
| Model | 80t/3200 | set |
| Nominal Force | 800 | kn |
| Worktable Length | 3200 | mm |
| Poles Distance | 2600 | mm |
| Throat Depth | 320 | mm |
| Stroke | 120 | mm |
| Max Open | 380 | mm |
| Power | 7.5 | kw |
| Weight | 5600 | kg |
| Dimension L*W*H | 3200*1700*3200 | mm |
We can supply various specifications of Press Brake, Plate Shearing Machine & Rolling Machine, with or without CNC, according to customers' requirements.
We are also professional manufacturer of Punching Machine, Hydraulic Press, Iron Worker, Ventilation Equipment, Machine Tool Fittings, Bending Machine Dies, Punch Dies & Cutting tools.
All of our products have passed the ISO 9001 Quality System Certificate and CE Certificate.
If u want to know more information about our products, plz feel free to contact us!
Welcome to visit our company!
