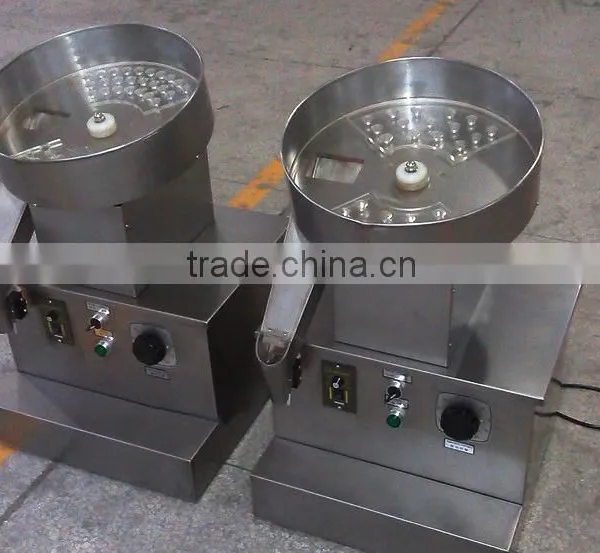

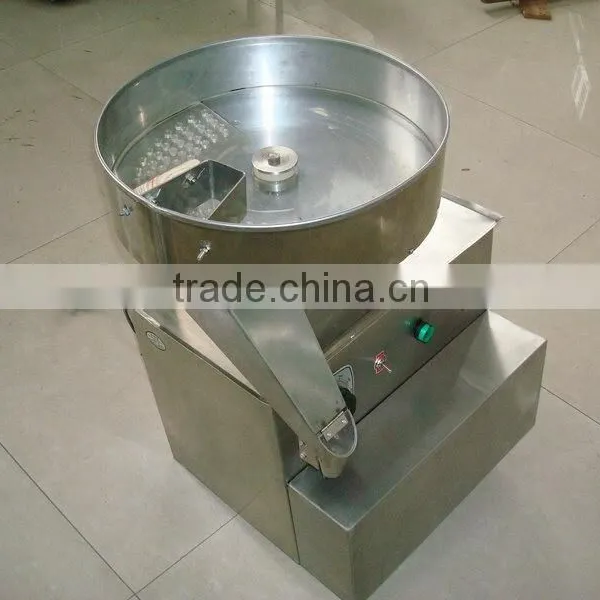

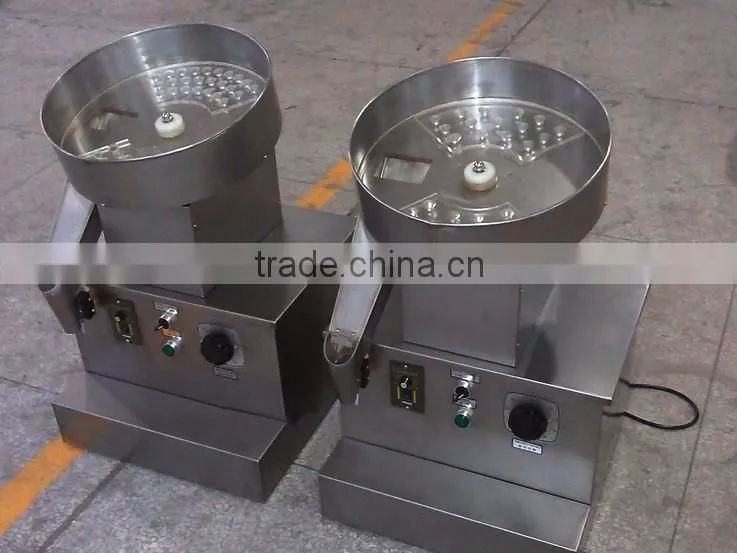

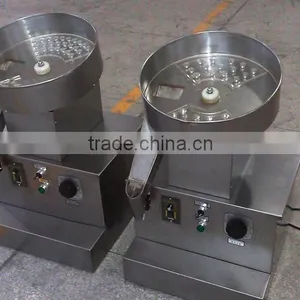

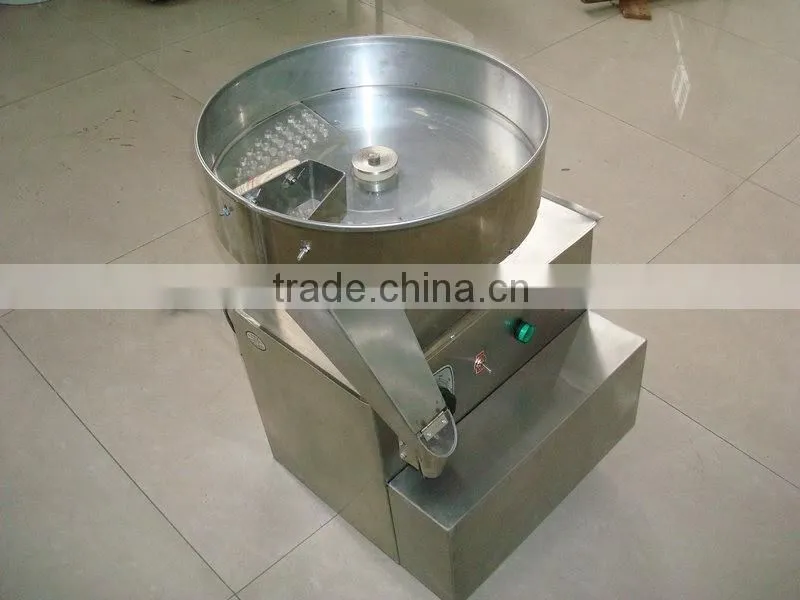

The single-disc capsule counting machine is applied in the small-scale quantitative packing of capsules and tablets, so it is suitable for the small-batch production of medicine manufacturer, scientific research institution and lab.
Applying the flexible transmission as well as the mechanical eccentricity, this present machine can have the counting disc vibrate, and the vibration can be adjusted by adjusting the distance of the eccentricity, stably and reliably; with the simple and scientific design, it’s convenient in use, small in size and light in weight.
Technical parameters sheet of Semi-Automatic Capsules and Tablets Counting and Filling Machine.
Technical Parameters
Power Supply: 220 V 180W
Counting range :1-30 / bottles (from a few tablets of disc determined by the number of the number of tablets of holes)
Suit for capsule: 00 # -5 # (set to be the number of tablets and capsules corresponding to)
Max tablet size :20mm*4mm
Max capsule size:24*8mm
Maxiumum count per bottle:
180 capsules of 24*8mm
Counter plate's diameter:385mm
Capacity:10-30bottles/min
Size:600*500*700mm
Weight:50kg
technical parameters of capsule counting machine single plate semi automatic:
use of capsules&tables single plate counter equipment semi automatic

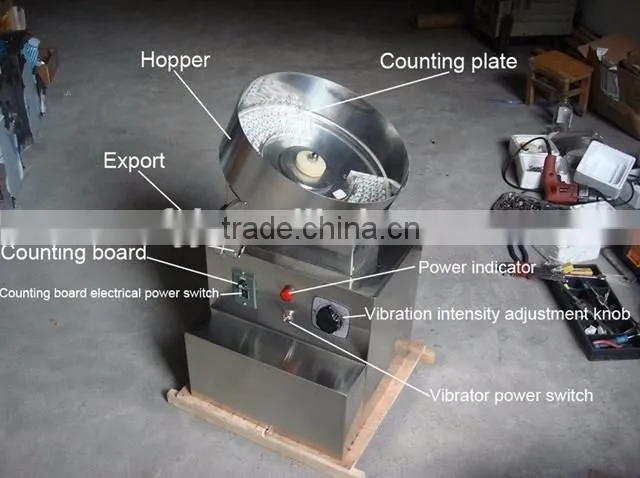

1. Then a good power supply, so that the number of tablets of disc counter-clockwise rotation.
2. Into an appropriate capsule, open the power supply, will be transferred to a suitable voltage switch position, so that electromagnetic vibration to reach the right intensity, so that the number of tablets capsules disk hole easy access to a few tablets, while dynamic capsule with a brush, so that the number of tablets of hole both capsules.
3. Bottling, it will bottle feed into the capsule out of the mouth or the mouth of the bottle with your fingers gently touch the micro-switch, the number of tablets of disc rotation to all fall into the capsule under the feed mouth, and then immediately release micro-switch.
4. Into the next count work, using brush dynamic capsule .
Notes
1. The number of tablets of the height of the disk should be the head capsule length of the same or slightly higher than the number of tablets of Capsule disk, not too low or too high, otherwise turn will ruin capsule is too low can be higher than the pad with the Calibrating the middle part and to the middle hole ended up with the shaft after the match abandoned DVD films, is too high please lathe to a few tablets of the bottom plate washer (do not be confused too low).
2. Collar disk on the number of particles must be adjusted to the appropriate height, and bottom should be the head capsule to maintain a distance of about 1.5-2MM, too low, hampering the capsules will be too high.
3. The number of tablets not all covered with holes in the capsule not to be pressed micro-switch, otherwise the position will go to Circlip broke capsule. Counting all the holes in the capsule is not available when covered with a brush dynamic capsule, so that the number of tablets are capsule hole.
4. Damp after the deformation of the capsule can not count on the machine.
5. The number of tablets not pressure plate, or not working properly; lift the machinery can not be carried in a few tablets of the plate, otherwise it would loose a few tablets of disc damage.
6. Capsule to be locked together completely, the length of a unified, without fail capsules.
7, to lift the machinery must not carry on in a few tablets of disc hopper, or cause damage to the machine!
8, on the machine feet: You can install the 4 screws and tighten the nut after the feet as the machines used.

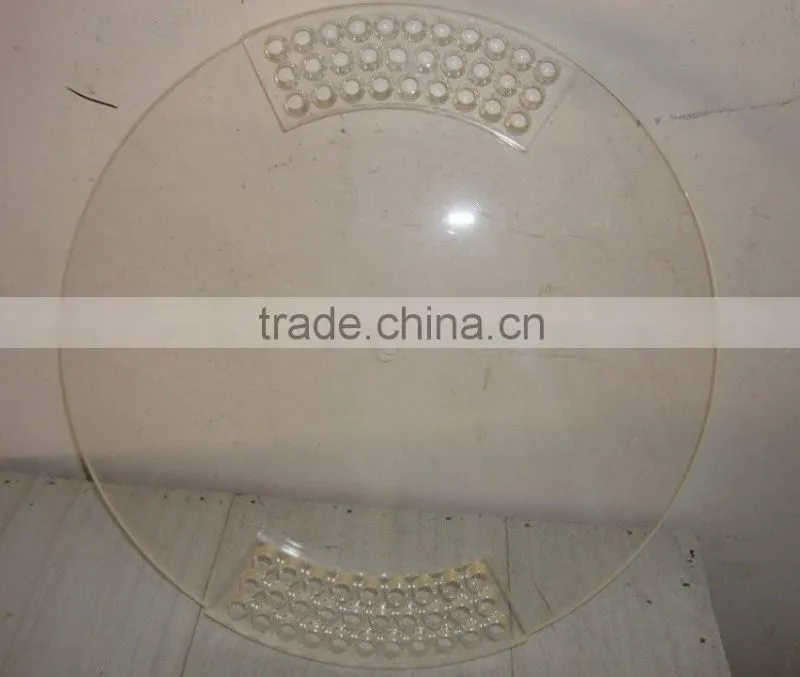

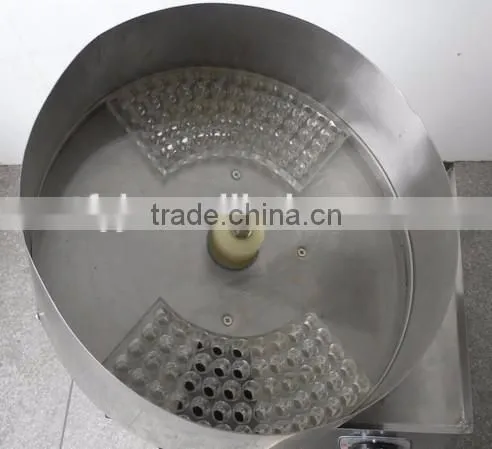

Spare parts &samples counted from capsule counting machine

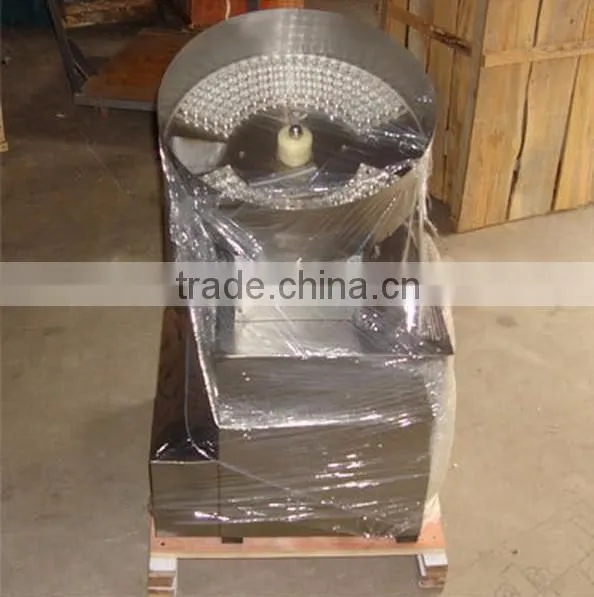

Packaging for model YX-TC01 semi automatic tablets capsule counting machine
