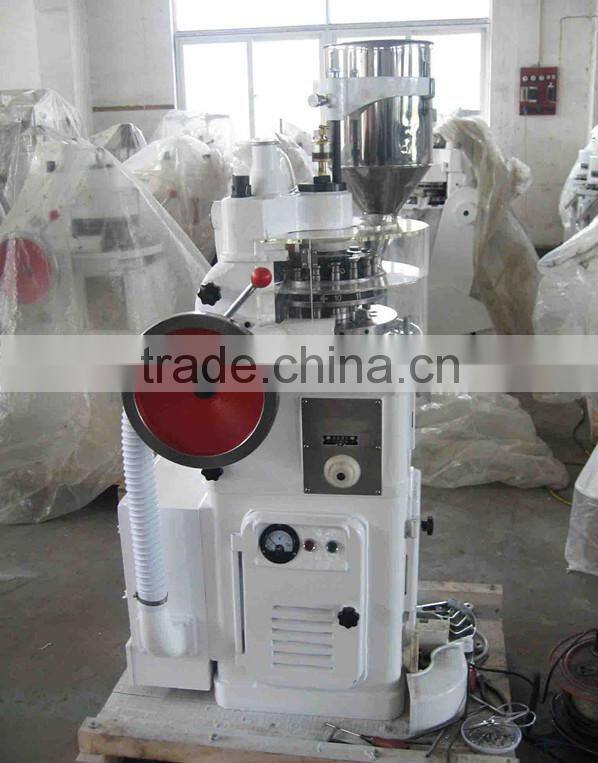

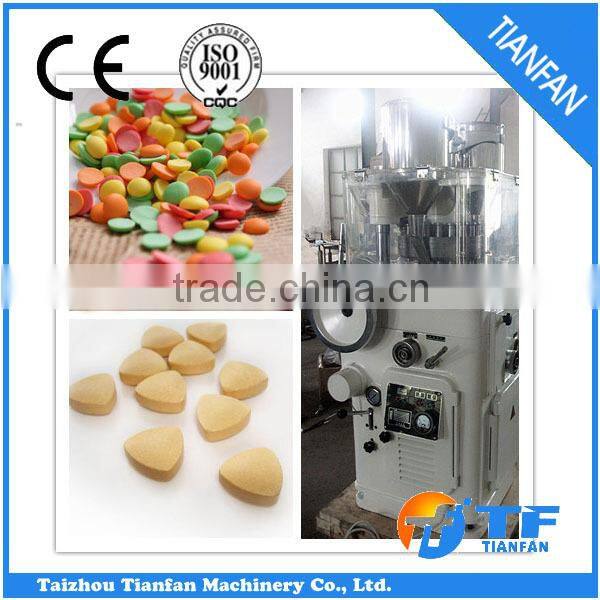

ZP17-19 Rotary Tablet Making Machine
Usage
This machine is suitable for pressing round tables from various kinds of granular
materials,but also different geometricar shape tabels.Specially for small-scale
batch production. During operation, the speed of the turret roation, the depth of
the filling material and the thickness of the tablets can be dejusted.The mechanicalbuffer unitl will prevent punches and apparatus from overload damage. A prowder
suction unitl is attached to take in the residual powder during operation ,so that
the blockage by the residual powder can be elimminiated and the collected powder material can be reused .This machine has won the Fine Quality Product Prize
awarede by China National Medical Management Bureau.
Main technical patameters
Dies |
17 |
19 |
Max.Pressure(Kn) |
50 |
40 |
Max.Dia of Table (mm) |
20 |
12 |
Max.Depth of Fill(mm) |
15 |
15 |
Max. Thickness of Tablet(mm) |
6 |
6 |
Turret Speed(r/min) |
20~40 |
20~40 |
Production Capacity(pc) |
20000~40000 |
25000~45000 |
Motor(kw) |
2.2kw |
2.2kw |
Overall Size(L×W×H) |
880×960×1600 |
880X750X1600 |
Net Weight(kg) |
560 |
560 |
- Standard export wooden case packaging
- Delivery time:7 working days after receiving 30% deposit
Punctual delivery time:
-We put your order into our tight production schedule, ensure your punctual delivery time.
-Production / inspection report before your order packed.
-Shipping notice/ insurance to you as soon as your order is shipped.
After sales service:
-We respect your feed back after receive the goods.
-We provide 12-24 months warranty after goods arrive.
-We promise all spare parts available in lifetime use.
-We large your complain within 48 hours.
Professional sales:
-We value every inquiry sent to us, ensure quick competitive offer.
-We cooperate with customer to bid tenders. Provide all necessary document.
-We are a sales team, with all techinical support from engineer team.
1.Our company’s engineers have long been engaged in pharmaceutical machine designed and developed,more experienced.
2.Over 30 years of rich experience in design and manufacture, can not only ensure best Chinese pharma machine performance,and reliability is optimal in China.
3.Our company can provide 100% custom made service,according to your actual production process ,we can design and transformthe special machines for your use.
4.Our company can provide free sample testing service ,to make sure the machine you buy from us is 100% suitable for your product,
you can send us some samples of your products and we will offer you the free testing of our machines.
