agricultural disc plough
- 800 Set / Sets per Month
- QingDao
- T/T L/C D/P D/A Credit Card
Product Details
Condition: | New | Type: | Farm Cultivator | Power Type: | Other, tractor |
Power(W): | 40-150 | Certification: | CE | Warranty: | one year |
Use: | cultivating | Brand Name: | yunhai | Model Number: | 1LYX |
Weight: | 340-750 |
Packaging Details
iron frame ( we also can do as your request . )
Product Description
Specifications
farm equipment :1. working width :600-1200mm2. working depth : 250mm
age : three point mounted .
4.Dia. of disc :660m
farm equipment:
Thank you for visiting our website . Hope the information will be helpful to you . If you are interested in our production , please contact us .

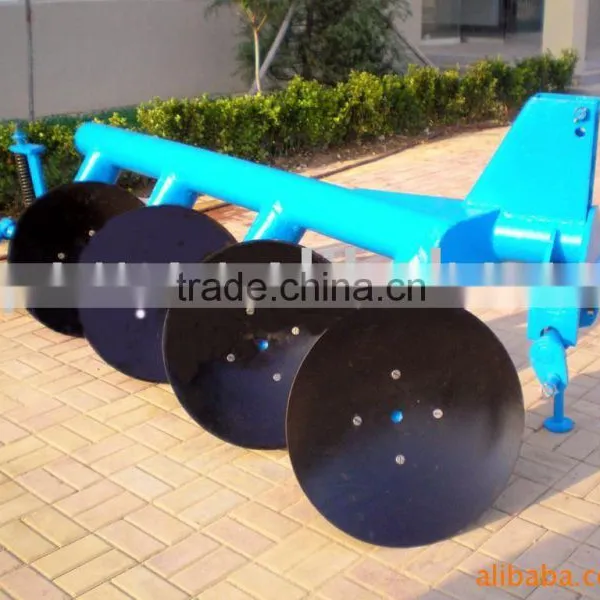

The 1LYX disc plough is completely mounted with tractor .During operation ,the disc is rotating to turn the soil .Particularly ,it is suitable for operation on the field with grasses ,straw and stems of crops or plants ,big soil resistance and with many stones and break brickbat ,etc. in the field .It is good at cutting grasses and straw and free from stopped by the grasses , soil or stones .etc. It is efficient in the work . I t is of good quality during operation .It is easy to adjust and strong and durable .
specification
model | 1LYX-230 | 1LYX-330 | 1LYX-430 |
Working width(mm) | 600 | 900 | 1200 |
Working depth(mm | 250 | ||
Weight(kg) | 340 | 430 | 520 |
Linkage | Three point suspended | ||
(hp) Matched power | 40-50 | 55-65 | 75-90 |
Working efficiency(ha/h) | 0.3 | 0.45 | 0.6 |
Overall dimensions(mm) | 1650*1150*1200 | 2300*1400*1200 | 2950*1730*1200 |
Dia.of discs(mm) | 660 |
Company Profile
Yucheng Yijia Machinery Co., Ltd. is a specialized manufacturer dealing with the design and production of agricultural machinery. We are a key company designated by the Ministry of Machinery Industry to produce hitching disc harrow, disc plough, blade, break shovel, and broadcast sowing machinery.
Our products are exported to the United States, Australia, France, Germany, Russia, Pakistan, Thailand, Africa and South America, more than 20 countries and regions. Our factory was promoted to be entitled as National 2nd-class Enterprise and got independent export rights. We own rich technical force, advanced equipment, excellent workshop and high prestige, and can supply consumers with reliable products and satisfactory service.
Our certificates and titles
1. A Class Enterprise of the National
2. Agricultural Machinery Spread License issued by the Ministry of Farming, Animal Husbandry and fishery of China
3. Production License of the whole National.
4. Certificate of Measuring and Inspection by National Technical Control Bureau
