Three disc plough

FOB Price

USD $100 - $2,000 / Set

1 Set(Min.Order)

Supply Ability 300 Set / Sets per Month
Port QingDao
Payment Terms:T/T L/C

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Farm Cultivator	Power Type:	Other, tractor
Power(W):	40-150	Certification:	CE	Warranty:	one year
Use:	cultivating	Brand Name:	yunhai	Model Number:	1LYX
Weight:	340-750kgs

Packaging Details

iron frame ( we also can do as your request . )

Product Description

Specifications

three disc plough :1. working width :600-1200mm
2. working depth : 250mm
age : three point mounted .
4.Dia. of disc

farm equipment:

Thank you for visiting our website . Hope the information will be helpful to you . If you are interested in our production , please contact us .

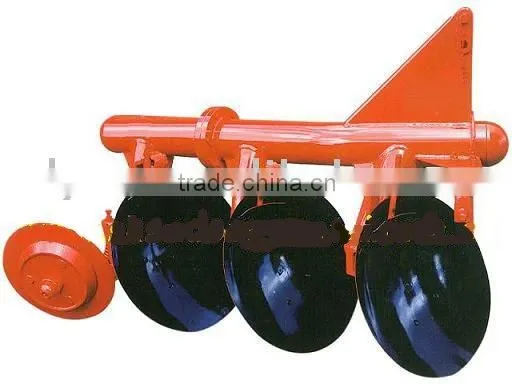

The 1LYX disc plough is completely mounted with tractor .During operation ,the disc is rotating to turn the soil .Particularly ,it is suitable for operation on the field with grasses ,straw and stems of crops or plants ,big soil resistance and with many stones and break brickbat ,etc. in the field .It is good at cutting grasses and straw and free from stopped by the grasses , soil or stones .etc. It is efficient in the work . I t is of good quality during operation .It is easy to adjust and strong and durable .

specification

model	1LYX-230	1LYX-330	1LYX-430
Working width(mm)	600	900	1200
Working depth(mm	250
Weight(kg)	340	430	520
Linkage	Three point suspended
(hp) Matched power	40-50	55-65	75-90
Working efficiency(ha/h)	0.3	0.45	0.6
Overall dimensions(mm)	*165011501200*	*230014001200*	*295017301200*
Dia.of discs(mm)	660
