Specifications
mounted light-duty disk harrow:mounted light-duty disk harrow:

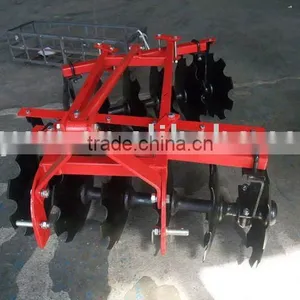

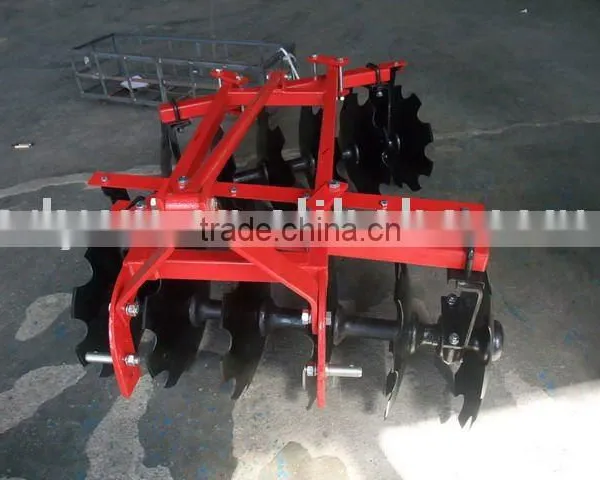

1BQX series mounted light-duty harrow : This series are used for crushing clods after tillage, preparing soil before seeding ,
loosening the soil , combining the soil and fertilizer , and cleaning away stubble of plants in light
soil field . With reasonable structure, strong ability to rake , durable , easy to use and maintain , etc.
Specifications
Item |
Unit |
1BQX-1.1 |
1BQX-1.3 |
1BQX-1.5 |
1BQX-1.7 |
1BQX-2.0 |
1BQX-2.2 |
1BQX-2.3 |
Overall dimension |
mm |
1590*1230*830 |
1590*1440*830 |
1905*1550*1118 |
1985*1820*1118 |
|
|
|
working width |
mm |
1100 |
1300 |
1500 |
1700 |
2000 |
2200 |
2300 |
working depth |
mm |
100-140 |
||||||
No. of disc |
pc |
12 |
14 |
16 |
18 |
20 |
22 |
24 |
Dia. Of disc |
mm |
460 |
||||||
inch |
18” |
|||||||
weight |
kg |
200 |
220 |
250 |
270 |
300 |
400 |
420 |
linkage |
|
Three point mounted |
||||||
Matched power |
hp |
12-18 |
15-18 |
20-25 |
25-30 |
35-40 |
40-45 |
55 |
