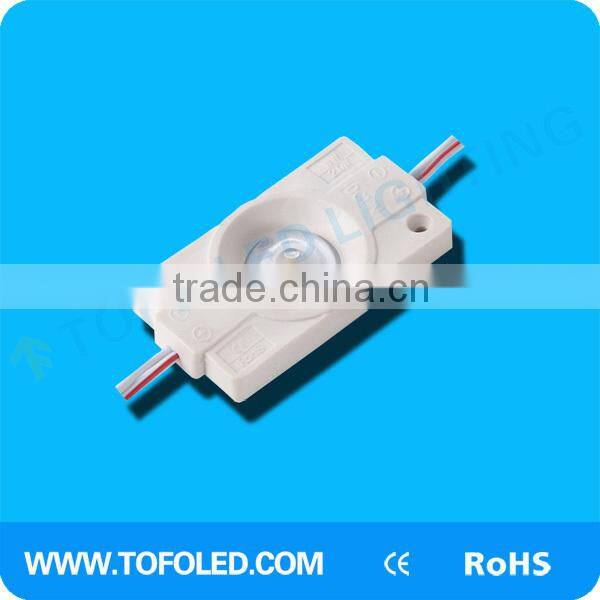

160degree 12v single led module light with lens
LED Module Features:
1. High luminous flux 20 times more than 3528 LEDs
2. 2W LED source with heat sink, well heat transferring.
3. High light transmittance PMMA lens.
4. Constant current driver ensuring full bunch in same brightness and stably working.
5. Al substrate for LED and components in a low temperature condition.
6. Secondary optic design, 160degree visual angle resulting be tter ,average brightness and no brighter dots.
7. Best sealed, IP65 with moisture-proof, water-proof,dust proof and impact resistance.
8. Nice structure and design in PC process. Whole unit has been formed in one-time injection molding.
9. RoHS standard of all raw materials.
10. Long lifespan and low failure rate.
Parameter:
P/N: |
TF-SM-1 |
Luminous Flux |
160~170lm |
LED Type & No: |
epistar |
CRI: |
≥75 |
Working Voltage (V DC): |
DC12V |
Beam Angle (°) |
120 |
Working Current (mA/piece): |
100MA |
|
|
Power (W/piece): |
2W |

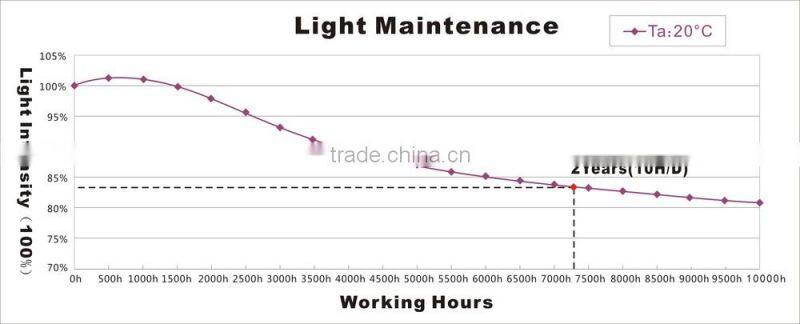

Lumen Maintenance: |
>95%@1,000hrs |
IP Grade: |
IP65 |
Color Temperature |
3000-10000K |
Operation Temperature: |
-40°C- 60°C (-40°F~140°F) |
Certificate |
CE & Rohs |
Storage Temperature: |
-40°C- 60°C (-40°F~140°F) |
Warranty |
48 months |
Application
- Advertisement signs backlighting
- LOGO & Letters backlighting
- Advertisement Light boxes and billboards backlighting
- Landscape, commercial, home and stage decoration
Package and Shipping:
1. Carton size: 360mm*290mm*340mm,
- each bunch of modules 20pcs,
- 5 bunches in 1 foil bag,
- 1 bag 100pcs. 10bags/ctn
2. Weight: 14kg (±10%)
3. The said packaging is subject to the above drawing shown here. Please take this for reference.
- Reply your inquiry in 24 working hours.
- Costomized design is available,OEM and ODM are welcomed.
- Delivery the goods to our customer all over the world with speed and precision.
- Offer customer the lowest price with high quality LED light.
