Specifications
12mm RGB Full color LED pixel light1.CE & RoHs
2.IP67
3.good quality & 2-3 years warranty
4.quick delivery,small size,
12mm RGB Full color LED pixel light
12mm RGB LED Pixel Light
1.View angle: ≥160 degree
2.Dimension:110*20*12mm
3.IP68,led housed by injection machine
4.Energy saving,low power consumption,high intensity
5.Full range of colors: Red, Yellow, Blue, Green, White
6.No shadow, low thermal resistance, low brightness degradation
7.Connect wires following positive and negative markings on the circuit board
Feature:
1 Our LED is housed by injection machine so that waterproof level can reach IP68.
2 Low power consumption .high intensity,and Stability,With improvement of technology it can reach high intensity, low depreciation,
3 Color: red,yellow,blue,green,natural white,warm white,cool white,seven color,,full color etc,especially for full color
it can show color gradual,jumping,watering,chasing,scanning,,letters etc,,even can realize multicoloured and vivid picture and animotion
4 convenient installation,quality assurance (The warranty is 2 years)
5 it’s applied for widely various kinds of sign,,building lighting,,KTV ,,hotel and large place of entertainment etc.
Tech Spec:
| Item No | TF-LPL-001 | TF-LPL-002 | TF-LPL-003 | TF-LPL-004 |
| No. of LED | 1pcs super flux | 1pcs super flux | 1pcs super flux | 1pcs piranha |
| Consumption | 0.11w | 0.11w | 0.4w | 0.4w |
| Voltage | 5VDC | 5VDC | 5VDC | 5VDC |
| Angle | 120-180degree | 120-180degree | 120-180degree | 120-180degree |
| Current | 20mA-60mA | 20mA-60mA | 20mA-60mA | 20mA-60mA |
| IP degree | IP67 | IP67 | IP67 | IP67 |
| Color | R/Y/B/G/W | RGB WITH IC | RGB W/O IC | |
| Chip dimension | 5mm | 8mm | 8mm | 8mm |
| Hole Size | 9mm | 12mm | 12mm | 12mm |
| Life Span | 50,000H | 50,000H | ||
Application:

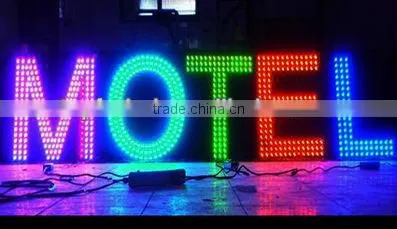

1.Backlight of signal, it can be widely used in channel letter,signs,light box etc.
2.Stores,supermarkets,mall,hotel board sign
3.Window display lighting
4.Emergency hallway lighting
5.Auditorium walkway lighting
6.Cove lighting.
7.Architectural lights for canopy, corridor, window, archway
8.DIY lighting for indoor use
9.Path or contour marking
10.Decorative lighting for festivals, events, shows, exhibitions
11.Used for illumination around the transparent or non-transparent material
Our services:
1.your inquiry will be replied in 24 hrs;
2.your special requirement about led light can be accepted;
3.Discount is available according to your order quantity;
4.Excellent after sale service.
