Specifications
hot sale ip65 100-240v 12-24v 10w pir motion sensor flood1. Voltage:85~265v
2. Power: 10w
3. Epistar
4, Sensi
hot sale ip65 100-240v 12-24v 10w pir motion sensor flood
PIR sensor LED Flood light Instruction:
Pyroelectric Infrared Sensor(PIR),the product is an energy-saving automatic switch, it adopts integrated circuit and infrared energy detector. It can be on when someone comes and off when leaves. Its performance is stable. It can identify day and night automatically. The light can turn on when someone enters detection field and trigger it, it can turn off automatically when leaves detection field .
Function:
- Can identify day and night automatically, the ambient-light can be selected, so it works at night automatically and stop in the daytime.
- Time-delay can be adjusted vary to the place.
- It mainly be used fitting with halogen lamp, but it also can be used alone.
Parameters:
Model no.: |
TF-FL-10S |
LED Type: |
Epistar / Bridgelux |
Power: |
1x10W |
Input Voltage: |
AC85-265V 50-60 Hz |
Material: |
High strength aluminum + Tempered Glass |
Shell color: |
Black / Grey |
Beam angle: |
120° |
Color Temperature: |
2700-7000k |
Luminous Flux: |
1000lm |
CRI: |
Ra> 85 |
Dimension: |
114 x96x 87.5mm |
Lifespan: |
50,000 hours |
Working temperature : |
-25 ~ 45°C |
IP Rate: |
IP65 |
Warranty: |
3 years |
Certificate: |
CE, RoHS |
Sensor information:
Detection range |
120° |
Working temperature |
-25°C~+45°C |
Detection distance |
12m |
Working humidity |
<93%RH(<24°C) |
Input Voltage |
110 ~130V/220 ~240V |
Time-delay |
Min:5sec Max:6min±2min |
Rated load |
1200W.max(220V/AC) |
Ambient-light |
<3Lux~2000Lux |
|
800W.max(110V/AC) |
Installation |
height:2m~4.5m |
Product images:
PIR sensor LED Flood light / Features & Advantages:
- Advanced constant current driver.
- Professional thermal management.
- No noise or humming or flickering.
- No UV or IR radiation in beam, mercury free.
- Anti-shock, anti-moisture.
- Extensive application, simple, safe and convenient.
- Energy-saving 75% than traditional lamps.
- Approval with CE, RoHS certificates
- Our products are admitted to worldwide.
installation instruction:

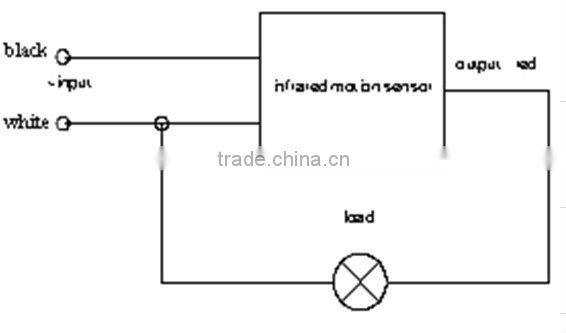

1. when installing connect line according to the right fig.
N --–white
L –black
Red ( be from infrared sensor)
connect white and black with power
connect white and red with load for lamp, we have already connected the controller wire.

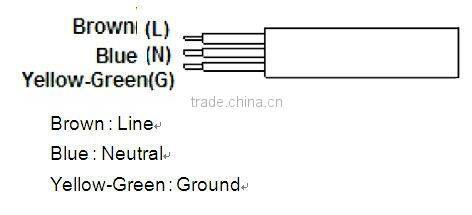

2. AC INPUT cable
Brown: Line
Blue: Neutral
Yellow-Green : Ground
Test:
1. After installation, please turn anti-clock wise the time knob(TIME) to the minimum and turn clockwise the light-control knob to the end (DAYLIGHT) before you switch on the power.
2. switch on the power, the light can be on after 30sec. After it turns off, make it to sense after 5~10 sec.
3. If all are under good condition, with time adjustment knob the light period can be adjusted according to your desire, with light-control knob ambient-light can be adjusted.
